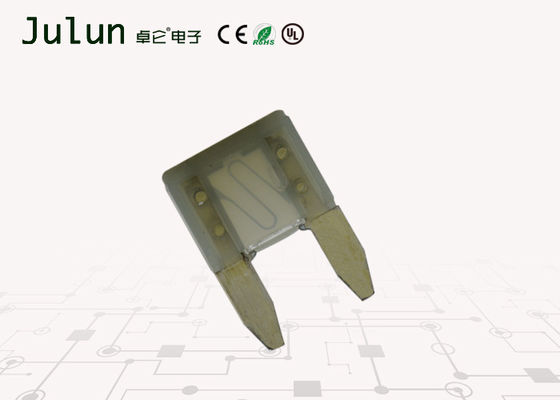

58 VDC 2 Amp Small Automotive Blade Fuses Ag Plated Zinc Alloy Terminals

58 VDC 2 Amp Small Automotive Blade Fuses Ag Plated Zinc Alloy Terminals

    • 58 VDC 2 Amp Small Automotive Blade Fuses Ag Plated Zinc Alloy Terminals
    • 58 VDC 2 Amp Small Automotive Blade Fuses Ag Plated Zinc Alloy Terminals
  • 58 VDC 2 Amp Small Automotive Blade Fuses Ag Plated Zinc Alloy Terminals

    Product Details:

    Place of Origin: CHINA
    Brand Name: Julun
    Certification: CE/UL/VDE/KC/ROHS
    Model Number: 0997

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 / Negotiable
    Price: Negotiable
    Packaging Details: Standard carton
    Delivery Time: 7~10 Working days
    Payment Terms: L/C, D/P, T/T, MoneyGram
    Supply Ability: 10000/Piece/Weekly
    Contact Now
    Detailed Product Description
    Voltage Rating: 58 VDC Interrupting Ratings: 1000A @ 58 VDC
    Component Level Temperature Range: -40˚C To +125˚C System Level Temperature Range: -40˚C To +105˚C
    Terminals: Ag Plated Zinc Alloy Housing Materials: PA66
    Complies With: SAE J2077, SAE 2576 ISO 8820 UL 248 Special Purpose Fuses

    Automotive Super Mini Blade Type Car Fuse Automotive Blade Fuses 2A



    MINI_58V_Datasheet.pdf



    Specifications



    Interrupting Rating: 1000A @ 58 VDC
    Voltage Rating: 58 VDC
    Component Level Temperature Range: -40˚C to +125˚C
    System Level Temperature Range: -40˚C to +105˚C
    Terminals: Ag plated zinc alloy
    Housing Materials: PA66
    Complies with: SAE J2077, SAE 2576 ISO 8820 UL 248 Special Purpose Fuses

    **105°C is a typical system level temperature requirement.



    Ratings



    Part Number Current Rating
    (A)
    Typ. Voltage Drop
    (mV)
    Cold Resistance
    (mΩ)
    I2t
    (A²s)
    0997002_ 2 171 55.60 2.8
    0997003_ 3 153 33.75 9.4
    0997004_ 4 121 23.48 17
    0997005_ 5 129 17.75 25
    099707.5_ 7.5 135 10.85 68
    0997010_ 10 108 7.42 93
    0997015_ 15 98 4.58 270
    0997020_ 20 96 3.21 380
    0997025_ 25 86 2.36 625
    0997030_ 30 87 1.85 1130



    Time-Current Characteristics



    % of Rating Opening Time Min / Max (s)
    110 360,000 s / –
    135 0.75 s / 600 s
    200 0.15 s / 5 s
    350 0.080 s / 0.500 s
    600 0.030 s / 0.100 s



    Dimensions



    58 VDC 2 Amp Small Automotive Blade Fuses Ag Plated Zinc Alloy Terminals58 VDC 2 Amp Small Automotive Blade Fuses Ag Plated Zinc Alloy Terminals
