5 X 20mm Low Voltage Fuse Holder Pvc Electronic Tube Fuse Holder

China 5 X 20mm  Low Voltage Fuse Holder  Pvc Electronic Tube Fuse Holder supplier
5 X 20mm  Low Voltage Fuse Holder  Pvc Electronic Tube Fuse Holder supplier 5 X 20mm  Low Voltage Fuse Holder  Pvc Electronic Tube Fuse Holder supplier

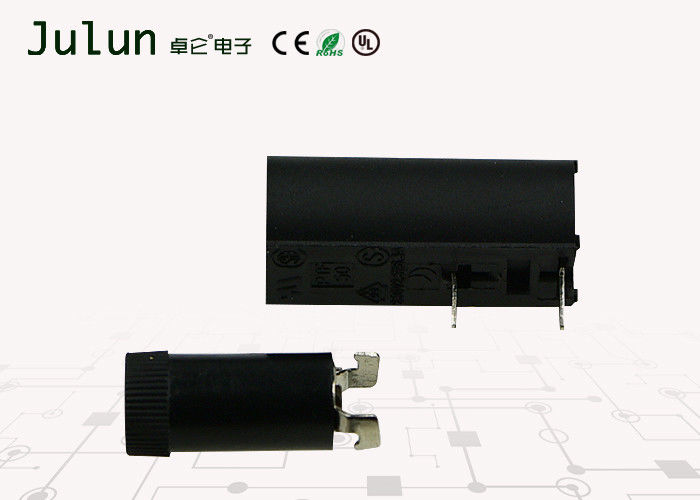

Large Image :  5 X 20mm Low Voltage Fuse Holder Pvc Electronic Tube Fuse Holder

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: PTF50

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Materials: 94 Where V0 PVC, Flame Retardant Terminal Raw Materials: Brass Nickel Plated
Fit The Fuse: Large /10a/ 32v, 3.8*10.9*16.3mm Assembly Way: Terminal Interface, Welding
Safety Certification: Fuse, Electronic Wire, UL Certification

5*20mm Ceramic Glass Tube Fuse Holder Fuse Protection Fracture Cover Low Voltage Fuse Holder





This series fuse is suitable for AC 50Hz,rated voltage to 1140V,rated current to 1250A.lt is mainly used in the electric installation for protecting ircuit from overload and short circuit(gG/GL);it also may derive for protecting the semiconductor device and others complete set installment from hort-circuit(aR)as well as the electric motor from short-circuit(aM). he rated breaking capability for this series fuse is to 120KA.This series fuse conforms to national standard GB13539 and International electrical committee standard IEC60269.


Description



Panel mount fuse holders are a device that provides a housing for a fuse to act as safety device within a wiring circuit for when power loads exceed the safe level for electronic components.



CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.




Quick details



Product Name Low Voltage Fuse Holder
P/N R3-11
Voltage breakdown AC2500 1minute
Insulation resistance DC 500V 100MΩ
Rating Values 10A 250VAC
Temperature range -20℃ -150 ℃
Flammability class UL94V0
Standard IEC-60335-1 GB_9364.6-2001
Certification ISO9001, ROHS,
Mounting PCB Mount
Material Thermosetting glue, Brass
International Approvals CE, CQC, UL,VDE
Fuse size 5*20mm Glass Fuse
Application It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment.




FAQ


Q: What can i do if i got a broken product form A-TEAM FUSE INC?
A: First of all please tell us as soon as possible after we will send a new one to you immediately but please send the broken product to us .you don't have to worry about the carriage charge we will pay for that.
Q;Are we a importer or manufacturer?
A;We are a manufacturer
Q:Why you have to choose us
A:High quality assurance. The most competitive price and fast shipping


Competitive Advantage



1. Factory supply directly

2. Completed certificates such as UL,VDE,SGS,etc and high quality available

3. Quick delivery

4. Best after-sales services

5. OEM & ODM available
