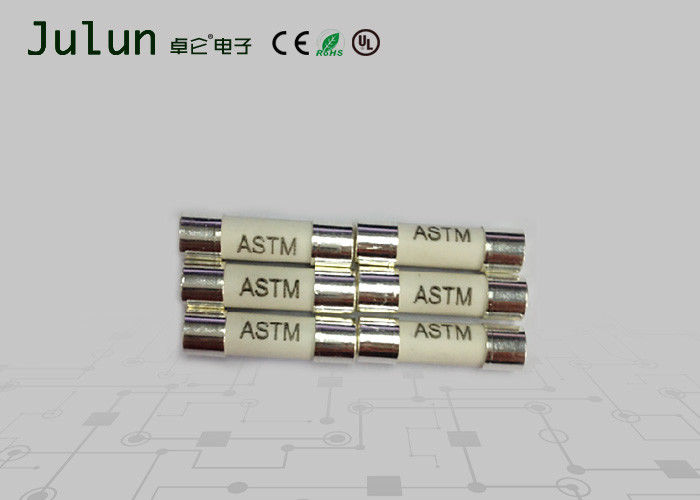

300VAC / DC 5x20mm Fast Acting Fuse Ceramic Tube Fuse MV510 Series 200mA ~ 20A

300VAC / DC 5x20mm Fast Acting Fuse Ceramic Tube Fuse MV510 Series 200mA ~ 20A
300VAC / DC 5x20mm Fast Acting Fuse Ceramic Tube Fuse MV510 Series 200mA ~ 20A

Large Image :  300VAC / DC 5x20mm Fast Acting Fuse Ceramic Tube Fuse MV510 Series 200mA ~ 20A Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: MV510
Payment & Shipping Terms:
Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Detailed Product Description
Rated Voltage: 300VAC / DC Rated Current: 200mA ~ 20A
Dimension: 5*20mm Material: Ceramic
Breaking Capacity: Fast
High Light:

solar pv fuses

,

high voltage hrc fuse

300VAC / DC 5x20mm Fast Acting Fuse , Ceramic Tube Fuse MV510 Series 200mA ~ 20A



Description



Fast Acting, medium breaking capacity

5x20mm physical size

Ceramic tube, Silver plated outer cap construction

Designed to UL248-1

Lead Free and Halogen free material



Electrical Characteristics
Rated Current 1.0In 2.0In 4.0In
200mA – 600mA 4 hour min. / 120 sec max.
1A–20A 4 hour min. 120 sec max. /



Specifications



Part No. Rated Voltage Rated Current Breaking Capacity (A) Typical Cold.Resistance (mOhms) Typical Voltage Drop (mV) Typical Pre-Arcing I2t (A2Sec)
AC DC AC DC
MV510.0.2 300V 300V 200mA 3000A 3000A 1750 333 0.032
MV510.0.4 400mA 663 278 0.172
MV510.0.5 500mA 382 190 0.287
MV510.0.6 600mA 360 234 0.396
MV510.1 1A 230 280 0.28
MV510.1.6 1.6A 148 310 2.56
MV510.2 2A 100 248 1.68
MV510.2.5 2.5A 90 360 1.48
MV510.3.15 3.15A 49 215 4.86
MV510.4 4A 38 220 8
MV510.5 5A 29 200 16
MV510.6 6A 24 150 30
MV510.6.3 6.3A 19 162 48
MV510.8 8A 14 149 64
MV510.10 10A 12 166 90
MV510.12 12A 300A 9.5 160 130
MV510.15 15A 7.3 165 225
MV510.16 16A 6.8 164 256
MV510.20 20A 5 150 520

* DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃

* Typical Pre-arcing I2 t are measured at 10In Current



Dimension


300VAC / DC 5x20mm Fast Acting Fuse Ceramic Tube Fuse MV510 Series 200mA ~ 20A 0
