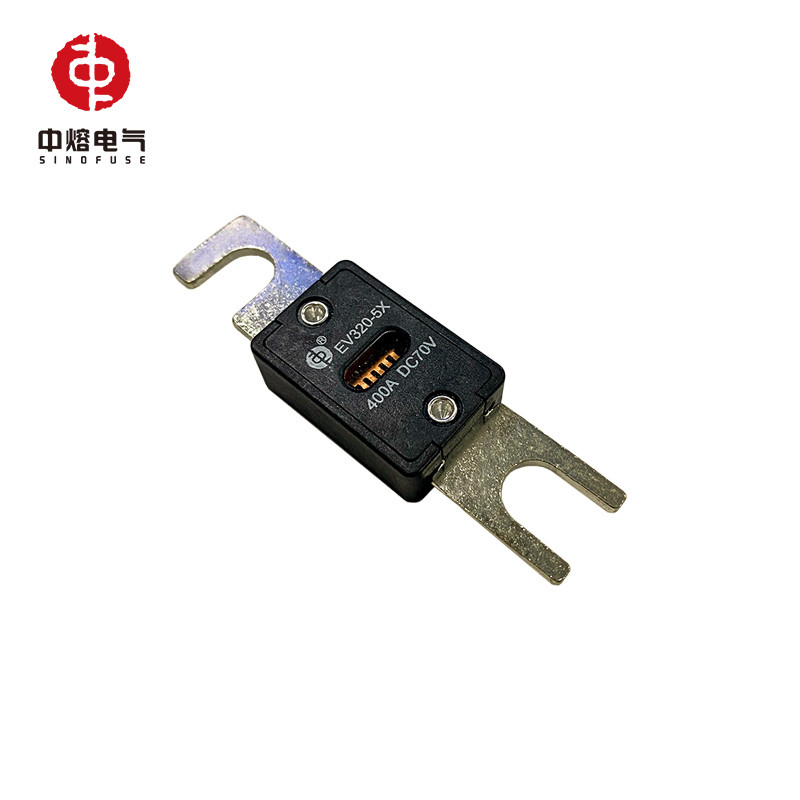

EV EVS Road Vehicle Round Tube Ceramic Automotive Fuses , EV320-5X Auto Fuse
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | ROHS |
| Model Number: | EV320-5X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Rated Voltage: | 70VDC | Rated Current: | 80A ,125A,150A,100A,175A,200A,225A,275A,250A,300A,350A,500A |
|---|---|---|---|
| Use Category: | EVRoad Vehicle Round Tube Bolt Connectors Ceramic Automotive Fuses | Be Applicable To: | Energy Vehicle |
| Style: | Tubular With Mounting Hole | Model: | EV320-5X |
| Installation Mode: | Plug Type | ||
| High Light: | Bolt Connector Ceramic Automotive Fuses,Ceramic Automotive Energy Fuse,EVS Road Vehicle Auto Fuse |
||
Product Description
Road Vehicle Round Tube Bolt Connectors EV320-5C EV EVS
Product Presentation
EV320-5X
| Model No | Current(A) | Voltage(V) |
| EV320-5X-80A | 80 | 70VDC |
| EV320-5X-100A | 100 | 70VDC |
| EV320-5X-125A | 125 | 70VDC |
| EV320-5X-175A | 175 | 70VDC |
| EV320-5X-200A | 200 | 70VDC |
| EV320-5X-225A | 225 | 70VDC |
| EV320-5X-250A | 250 | 70VDC |
| EV320-5X-300A | 300 | 70VDC |
| EV320-5X-350A | 350 | 70VDC |
| EV320-5X-400A | 400 | 70VDC |
| EV320-5X-500A | 500 | 70VDC |
| Power consumption: 16~45W |
EV320 series
Performance and environmental reliability reference GB/T31465.5-2015,
ISO8820-5
5C 80/100/125/150/175/200/225/250/300/350/400/450/500A
● Rated voltage: DC70V or lower than
● Rated current: 80A~500A
● Breaking capacity: DC 6kA (time constant 2±0.5ms)
● Comply with RoHS instruction
This series of products is plate bolt connection type fuse, special performance design suitable for vehicle conditions. With small size, high breaking ability, can withstand high strength mechanical vibration and impact, suitable for road vehicle industry applications. It can be used as short circuit overload protection for vehicle components and equipment.
Note: All test data in this specification are measured in DC environment. Time constant and connection mode refer to ISO8820 and GB/T31465.
Ceramic Automotive Fuses,New energy vehicles refer to vehicles that adopt unconventional vehicle fuel as a power source (or use conventional vehicle fuel and adopt new on-board power devices), integrate advanced technology in power control and drive of vehicles, and form vehicles with advanced technical principles, new technology and new structure. New energy vehicles include pure electric vehicles, extended-range electric vehicles, hybrid electric vehicles, fuel cell electric vehicles, hydrogen engine vehicles, other new energy vehicles, etc.
