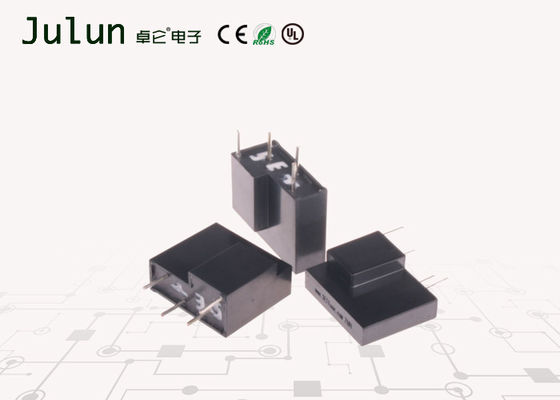

TMOV21R2P Module Thermally Protected Varistor For Telecom Power Supplies
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Julun |
| Certification: | CE/UL/VDE/KC/ROHS |
| Model Number: | SET |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 / Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard carton |
| Delivery Time: | 7~10 Working days |
| Payment Terms: | L/C, D/P, T/T, |
| Supply Ability: | 10000/Piece/Weekly |
|
Detail Information |
|||
| Type: | Varistor | Technology: | Metal Alloy |
|---|---|---|---|
| Package Type: | Surface Mount | Temperature Coefficient: | MLV |
| Operating Temperature: | -55°C To +125°C | ||
| Highlight: | mov electrical component,thermally protected mov |
||
Product Description
Metal Oxide Varistor TMOV21R2P module varistor of thermal protective varistor
Telecom power supplies
Power surge protectors
Surge protectors
| Model | Maximum Allowable Voltage | Varistor Voltage | Clamping Voltage (Max) | Maximum Peak Current (8/20μs) | Clamping Voltage Ratio | Maximum Energy (Joule) | Typical Capacitance (Reference) | Thermal Fuse | |||||
| AC. Rms | DC | V1.0mA | VC | IP | In | Imax | Rcl | In | 10/1000μs | @1KHz | UL60691 E214712 | ||
| (V) | |||||||||||||
| ( V ) | ( V ) | Min | Max | ( V ) | ( A ) | ( KA ) | ( KA ) | ( J ) | ( pF ) | ||||
| TFMOV21R2P470 | 30 | 38 | 42 | 52 | 93 | 25 | 2.5×2 | 5×2 | 4.3 | 2.5 | 41×2 | 8880×2 | VT Series Ur:690Vac; Ir:15/16A |
| TFMOV21R2P560 | 35 | 45 | 50 | 62 | 110 | 25 | 2.5×2 | 5×2 | 3.8 | 2.5 | 49×2 | 7800×2 | |
| TFMOV21R2P680 | 40 | 56 | 61 | 75 | 135 | 25 | 2.5×3 | 5×3 | 3.8 | 2.5 | 59×2 | 7000×2 | |
| TFMOV21R2P820 | 50 | 65 | 74 | 90 | 135 | 115 | 5×2 | 10×2 | 3.2 | 5 | 67×2 | 5880×2 | |
| TFMOV21R2P101 | 60 | 85 | 90 | 110 | 165 | 115 | 5×2 | 10×2 | 3.2 | 5 | 84×2 | 4800×2 | |
| TFMOV21R2P121 | 75 | 100 | 108 | 132 | 200 | 115 | 5×2 | 10×2 | 3.2 | 5 | 102×2 | 4000×2 | |
| TFMOV21R2P151 | 95 | 125 | 139 | 162 | 250 | 115 | 5×2 | 10×2 | 3.2 | 5 | 127×2 | 3200×2 | |
| TFMOV21R2P181 | 115 | 150 | 167 | 195 | 300 | 115 | 5×2 | 10×2 | 2.3 | 5 | 156×2 | 2650×2 | |
| TFMOV21R2P201 | 130 | 170 | 186 | 216 | 340 | 115 | 7.5×2 | 15×2 | 2.3 | 7.5 | 170×2 | 2400×2 | |
| TFMOV21R2P221 | 140 | 180 | 204 | 238 | 360 | 115 | 7.5×2 | 15×2 | 2.3 | 7.5 | 185×2 | 2160×2 | |
| TFMOV21R2P241 | 150 | 200 | 223 | 260 | 395 | 115 | 7.5×2 | 15×2 | 2.3 | 7.5 | 200×2 | 2000×2 | |
| TFMOV21R2P271 | 175 | 225 | 251 | 292 | 455 | 115 | 7.5×2 | 15×2 | 2.3 | 7.5 | 230×2 | 1800×2 | |
| TFMOV21R2P301 | 190 | 250 | 279 | 324 | 500 | 115 | 7.5×2 | 15×2 | 2.3 | 7.5 | 250×2 | 1560×2 | |
| TFMOV21R2P331 | 210 | 275 | 306 | 357 | 550 | 115 | 7.5×2 | 15×2 | 2.3 | 7.5 | 270×2 | 1440×2 | |
| TFMOV21R2P361 | 230 | 300 | 334 | 389 | 595 | 115 | 7.5×2 | 15×2 | 2.3 | 7.5 | 305×2 | 1320×2 | |
| TFMOV21R2P391 | 250 | 320 | 362 | 422 | 650 | 115 | 7.5×2 | 15×2 | 2.3 | 7.5 | 330×2 | 1200×2 | |
| TFMOV21R2P431 | 275 | 350 | 399 | 465 | 710 | 115 | 7.5×2 | 15×2 | 2.3 | 7.5 | 365×2 | 1160×2 | |
| TFMOV21R2P471 | 300 | 385 | 437 | 508 | 775 | 115 | 7.5×2 | 15×2 | 2.3 | 7.5 | 420×2 | 1020×2 | |
| TFMOV21R2P511 | 320 | 415 | 474 | 551 | 845 | 115 | 7.5×2 | 15×2 | 2.3 | 7.5 | 430×2 | 935×2 | |
| H | D | T | T | L |
| 24±0.5 | 26.9±0.5 |
13.3±0.5① 15.1±0.5② |
7±0.5 | Φ1.05±0.05 |
