KC Series - Miniature Leaded Epoxy Coating Thermistor 135°C Insulated Lead

China KC Series - Miniature Leaded Epoxy Coating Thermistor 135°C Insulated Lead supplier

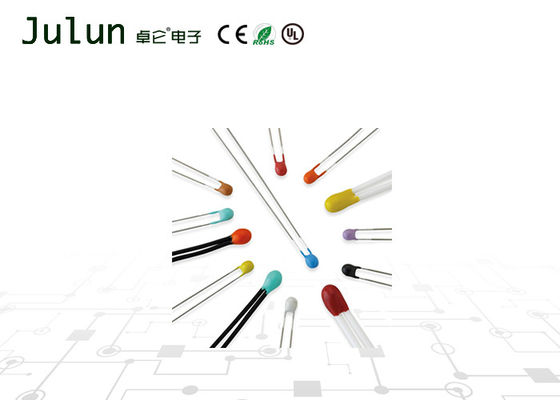

Large Image :  KC Series - Miniature Leaded Epoxy Coating Thermistor 135°C Insulated Lead

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: KC

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Theory: Resistance Sensor Model Number: KC
Application: Battery Temperature Controlling Wire Length: 40-1000mm
Operating Temperature: 135°C

KC Series - Miniature Leaded Epoxy Coating Thermistor 135°C Insulated Lead



Miniature leaded epoxy coated thermistors are manufactured using the same state of the art manufacturing techniques as those used to produce precision interchangeable devices. This results in devices with superior longterm reliability characteristics especially suitable for temperature measurement, temperature control and temperature compensation applications.



Options

• Non-standard resistance values and tolerances

• Special lead materials and lengths

• Special encapsulants or probe housings

• Point matched at specified temperatures



Features

• Kynar insulated lead wires

• Low cost • High reliability

• Epoxy encapsulated

• Small size

• Fast thermal response time



Specifcations



Part Number Resistance Ohms @25°C *Resistance Tol. ± % @ 25°C R-T Curve Temperature Coefficient (% / °C) @ 25°C Beta (K) 0-50°C Beta (K) 25-50°C Dissipation Constant,Nominal (mW/°C) Thermal Time Constant,Max. - Still Air (seconds) Thermal Time Constant, Max.-Well Stirred Oil (seconds) Temperature Rating (°C)
KC101B2K 100 10 B -3.3 2941 _ 1 10 1 -55 to +100
KC102F2K 1000 10 F -3.86 3419 _ 1 10 1 -55 to +135
KC222J2K 2252 10 J -4.4 3892 _ 1 10 1 -55 to +135
KC302J2K 3000 10 J -4.4 3892 _ 1 10 1 -55 to +135
KC502J2K 5000 10 J -4.4 3892 _ 1 10 1 -55 to +135
KC103G2K 10000 10 G -4.04 3575 _ 1 10 1 -55 to +135
KC103J2K 10000 10 J -4.4 3892 _ 1 10 1 -55 to +135
KC203J2K 20000 10 J -4.4 3892 _ 1 10 1 -55 to +135
KC203N3F 20000 1 N1 -4.5 _ 4050 _ _ _ -55 to +125
KC303J2K 30000 10 J -4.4 3892 _ 1 10 1 -55 to +135
KC503J2K 50000 10 J -4.4 3892 _ 1 10 1 -55 to +135
KC104R2K 100000 10 R -4.68 4140 _ 1 10 1 -55 to +135





Dimensions



KC Series - Miniature Leaded Epoxy Coating Thermistor 135°C Insulated Lead

Part Numbering System





KC Series - Miniature Leaded Epoxy Coating Thermistor 135°C Insulated Lead

Note: Not all combinations of Part Number codes are available. Contact Littelfuse for details.
