• GL Series - Subminiature Glass Probe Thermistor (0.070" Diameter) NTC Thermal Resistor
GL Series - Subminiature Glass Probe Thermistor (0.070" Diameter) NTC Thermal Resistor

GL Series - Subminiature Glass Probe Thermistor (0.070" Diameter) NTC Thermal Resistor

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: GL

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T,
Supply Ability: 10000/Piece/Weekly
Get Best Price Contact Now

Detail Information

Theory: Resistance Sensor Model Number: GL
Application: Battery Temperature Controlling Wire Length: 40-1000mm
Operating Temperature: 300°C
High Light:

negative temperature coefficient thermistor

,

ntc type thermistor

Product Description

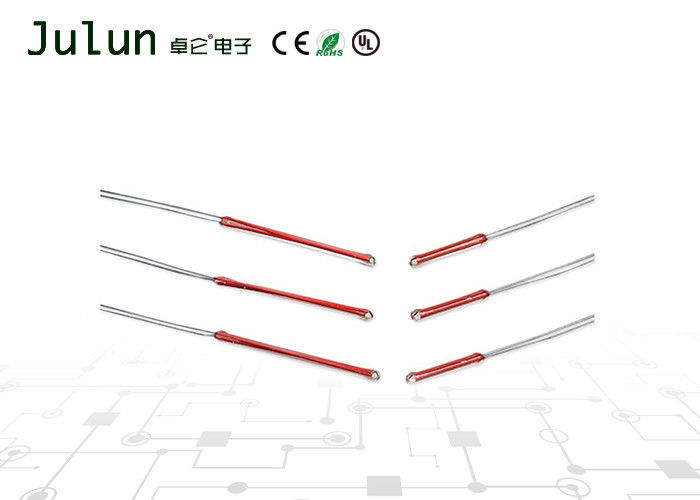

GL Series - Subminiature Glass Probe Thermistor (0.070" Diameter) NTC Thermal Resistor

GL Series - Subminiature Glass Probe Thermistor (0.070" Diameter) NTC Thermal Resistor



High temperature glass probe thermistors feature superior long-term stability and fast thermal response. Their small size and glass encapsulation makes them especially suitable for temperature measurement and control where space is limited and where extreme temperatures, corrosive atmospheres and/or harsh environments are encountered. glass probe thermistors have a wide range of applications within the HVAC/R, Industrial, Medical, Consumer Electronics, Alternative Energy, Telecommunications, Medical and Environmental Systems and Controls markets.





Options

• Non-standard resistance values and tolerances

• Two glass body lengths (.500” and 1.000”)





Features

• High temperature capability to +300°C

• High reliability

• Excellent long-term stability

• Solderable lead wires

• Fast thermal response time





Specifcations



Part Number Resistance Ohms @25°C *Resistance Tol. ± % @ 25°C R-T Curve Temperature Coefficient (% / °C) @ 25°C Beta (K) 25-85°C Dim “B” Temperature Rating (°C)
GL102E5J 1000 5 E -3.67 3348 0.5 0 0” -55 to +300
GL102E9J 1000 5 E -3.67 3348 1.000” -55 to +300
GL122E5J 1200 5 E -3.67 3348 0.500” -55 to +300
GL122E9J 1200 5 E -3.86 3348 1.000” -55 to +300
GL202F5J 2000 5 F -3.86 3499 0.500” -55 to +300
GL202F9J 2000 5 F -3.86 3499 1.000” -55 to +300
GL502F5J 5000 5 F -3.86 3499 0.500” -55 to +300
GL502F9J 5000 5 F -3.86 3499 1.000” -55 to +300
GL103J5J 10000 5 J -4.4 3977 0.500” -55 to +300
GL103J9J 10000 5 J -4.4 3977 1.000” -55 to +300
GL104R5J 100000 5 R -4.68 4263 0.500” -55 to +300
GL104R9J 100000 5 R -4.68 4263 1.000” -55 to +300





Dimensions



GL Series - Subminiature Glass Probe Thermistor (0.070" Diameter) NTC Thermal Resistor 0
