SMOV25S Series SMOV25S Varistor Overvoltage Circuit Protection Thermal Protection
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Julun |
| Certification: | CE/UL/VDE/KC/ROHS |
| Model Number: | SMOV25S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 / Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard carton |
| Delivery Time: | 7~10 Working days |
| Payment Terms: | L/C, D/P, T/T, |
| Supply Ability: | 10000/Piece/Weekly |
|
Detail Information |
|||
| Model Number: | SMOV25S | Type: | Fixed Resistor |
|---|---|---|---|
| Dimension: | 25mm | Highest Rated AC Voltage: | 115 ~ 460 |
| Maximum Pulse Energy: | 150 ~ 615 | ||
| Highlight: | mov electrical component,thermally protected mov |
||
Product Description
SMOV25S Series Overvoltage Circuit Protection Thermal Protection SMOV25S Varistor

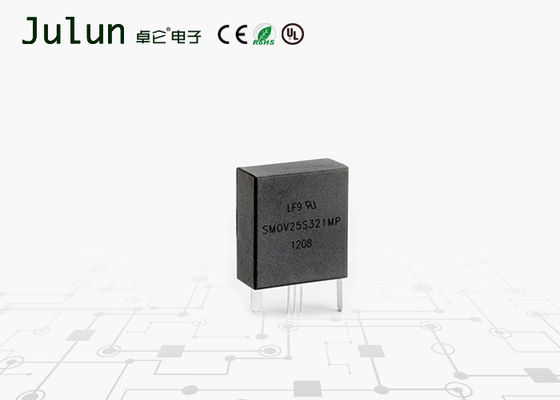

SMOV®25S thermally protected varistor is a self-protected device. It consists of a 25mm square varistor with an integral thermal disconnect designed to open in the event of overheating due to abnormal overvoltage as outlined in UL1449. The SMOV® helps facilitate SPD module compliance to UL1449 and offers quick thermal response due to the close proximity of the integrated thermal element to the MOV body. This configuration also offers lower inductance than most discreet solutions resulting in improved clamping performance to fast over voltage transients.
The device has a separate micro-switch, which can be used to indicate that the MOV has been disconnected from the circuit. This separate switch makes the monitoring circuitry completely isolated from the main power which ensures indicator circuit safety and simplifies the customers circuit design.
Features
• Maximum single surge capability 20 kA, 8/20 waveshape.
• Nominal Discharge Current Value: 10kA.
• Intermediate current rating: 50A/150A.
• -45°C to +75°C operating temperature.
• Recognized to UL 1449.
• Lead-Free and RoHS compliant.
• Integrated micro-switch for indication circuitry/design.
Applications
• SPD applications
• AC/DC distribution
• IT/Data center
• Power supplier
• Telecommunication
| Part Number |
Maximum Rating (75°C) | Specifications (25 °C) | ||||||||
| Continuous | Transient | Varistor Voltage at 1mA Test Current |
Maximum Clamping Voltage 8/20μs |
Typical Capacitance AC f = 1MHz |
||||||
| AC Volts |
DC Volts |
Energy 2ms |
Peak Surge Current 8/20μs |
Nominal Discharge Current (In) |
||||||
| VM (AC) | VM (DC) | WTM | I TM 1 × Pulse |
In | VN(DC) Min |
VN(DC) Max |
Vc | I PK |
C | |
| (V) | (V) | (J) | (A) | (A) | / | (V) | (V) | (A) | (pF) | |
| SMOV25S111MP SMOV25S111NP |
115 | 150 | 170 | 20000 | 10000 | 162 | 198 | 295 | 100 | 3200 |
| SMOV25S131MP SMOV25S131NP | 130 | 170 | 190 | 20000 | 10000 | 184.5 | 225.5 | 335 | 100 | 2800 |
| SMOV25S151MP SMOV25S151NP | 150 | 200 | 220 | 20000 | 10000 | 216 | 264 | 390 | 100 | 2300 |
| SMOV25S181MP SMOV25S181NP | 175 | 225 | 250 | 20000 | 10000 | 243 | 297 | 450 | 100 | 1900 |
| SMOV25S251MP SMOV25S251NP | 250 | 320 | 330 | 20000 | 10000 | 351 | 429 | 640 | 100 | 1400 |
| SMOV25S271MP SMOV25S271NP | 275 | 350 | 350 | 20000 | 10000 | 387 | 473 | 700 | 100 | 1250 |
| SMOV25S301MP SMOV25S301NP | 300 | 385 | 370 | 20000 | 10000 | 423 | 517 | 765 | 100 | 1150 |
| SMOV25S321MP SMOV25S321NP | 320 | 420 | 390 | 20000 | 10000 | 459 | 561 | 825 | 100 | 1080 |
| SMOV25S421MP SMOV25S421NP | 420 | 560 | 460 | 20000 | 10000 | 612 | 748 | 1100 | 100 | 820 |
| SMOV25S461MP SMOV25S461NP | 460 | 615 | 490 | 20000 | 10000 | 675 | 825 | 1220 | 100 | 750 |
| SMOV25S511MP SMOV25S511NP | 510 | 670 | 520 | 20000 | 10000 | 738 | 902 | 1335 | 100 | 680 |
| SMOV25S551MP SMOV25S551NP | 550 | 745 | 550 | 20000 | 10000 | 819 | 1001 | 1475 | 100 | 630 |
| SMOV25S621MP SMOV25S621NP | 620 | 800 | 600 | 20000 | 10000 | 900 | 1100 | 1625 | 100 | 550 |
| SMOV25S751MP SMOV25S751NP | 750 | 970 | 670 | 20000 | 10000 | 1080 | 1320 | 1950 | 100 | 460 |
Average power dissipation of transients should not exceed 1.5 watts Same ratings and specifications apply to Non Isolated Monitored Switch alternative design. Replace "M" with "N" in the part number. e.g.: SMOV25S111NP. Refer to Part Number System at the end of this document.
