25D Series Surge Suppressor Varistor Pulse Current Instrument Protection

China 25D Series Surge Suppressor Varistor Pulse Current Instrument Protection supplier

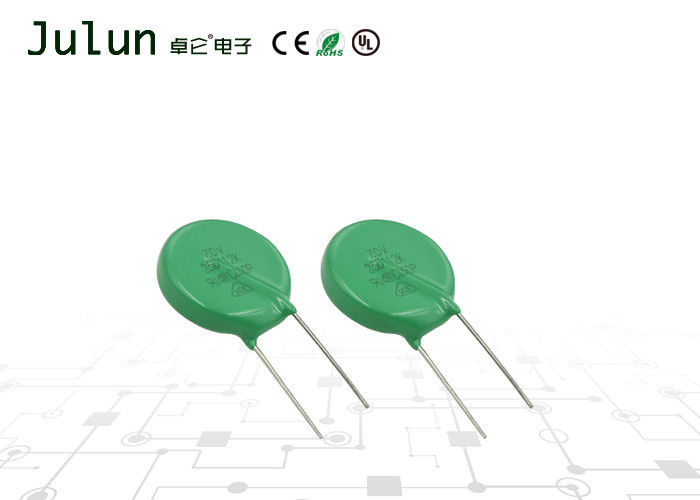

Large Image :  25D Series Surge Suppressor Varistor Pulse Current Instrument Protection

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: 25D

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Model Number: 25D Type: Fixed Resistor
Product Thickness: 11 ~ 18mm Varistor Voltage: 200 ~ 1800
Joule: 170 ~ 1150

High Joule 25D Series Varistor High-strength anti-lightning pulse current instrument protection





Product thickness



                                                                                                                                                      Unit: mm



HEL-25D201K 11
HEL-25D221K 11
HEL-25D241K 11
HEL-25D271K 11
HEL-25D301K 12
HEL-25D331K 12
HEL-25D361K 12
HEL-25D391K 12
HEL-25D431K 12
HEL-25D471K 12
HEL-25D511K 12
HEL-25D561K 12
HEL-25D621K 12
HEL-25D681K 13
HEL-25D751K 13
HEL-25D781K 13
HEL-25D821K 13
HEL-25D911K 13
HEL-25D951K 14
HEL-25D102K 14
HEL-25D122K 14
HEL-25D142K 15
HEL-25D162K 16
HEL-25D182K 18





Specifications





Model specification Varistor voltage Maximum allowable voltage Limit voltage Joule Flow rate Capacitance
(8/20μS) (J) ( 8/20μS )
V1mA ACrms DC Vc Ip 10/1000 1 impact 2 impacts 1kHz
(v) (v) (v) (v) (A) μS (kA) (kA) (pF)
HEL-25D201K 200(185-225) 130 170 340 150 170 20 15 2400
HEL-25D221K 220(198-242) 140 180 360 150 180 20 15 2200
HEL-25D241K 240(216-264) 150 200 395 150 190 20 15 2000
HEL-25D271K 270(243-297) 175 225 455 150 200 20 15 1700
HEL-25D301K 300(270-330) 195 250 500 150 230 20 15 1600
HEL-25D331K 330(297-263) 210 275 545 150 250 20 15 1500
HEL-25D361K 360(324-396) 230 300 595 150 280 20 15 1400
HEL-25D391K 390(351-429) 250 320 650 150 315 20 15 1200
HEL-25D431K 430(387-473) 275 350 710 150 340 20 15 1100
HEL-25D471K 470(423-517) 300 385 775 150 360 20 15 1050
HEL-25D511K 510(459-561) 320 415 845 150 430 20 15 1000
HEL-25D561K 560(504-616) 350 460 925 150 440 20 15 950
HEL-25D621K 620(558-682) 385 505 1025 150 460 20 15 900
HEL-25D681K 680(612-748) 420 560 1120 150 480 20 15 850
HEL-25D751K 750(675-825) 460 615 1240 150 500 20 15 800
HEL-25D781K 780(702-858) 485 640 1290 150 510 20 15 750
HEL-25D821K 820(738-902) 510 670 1355 150 525 20 15 700
HEL-25D911K 910(819-1001) 550 745 1500 150 540 20 15 650
HEL-25D951K 950(855-1045) 575 765 1570 150 560 20 15 620
HEL-25D102K 1000(900-1100) 625 825 1650 150 600 20 15 600
HEL-25D122K 1200(1080-1320) 750 980 1980 150 700 20 15 550
HEL-25D142K 1400(1278-1540) 870 1160 2370 150 900 20 15 520
HEL-25D162K 1600(1440-1584) 1000 1200 2700 150 1025 20 15 500
HEL-25D182K 1800(1620-1980) 1200 1450 2970 150 1150 20 15 450





Dimensions



25D Series Surge Suppressor Varistor Pulse Current Instrument Protection







FAQ


1.Are you a factory or trading company?
We are a factory founded in 2009 and have over 9 years’ OEM and international trading experience

2.What’s your main product?
Our main products are fuse series, resistance series, capacitance series, fuse pedestal series, sensor series

3.Any certification of your company or product?
We have ISO 9001-2008 ,CE(LVD), RoHS, TUV,cURus,VDE,CQC,PSE,KC Certificates and Test Report for these certificate.

4.Which countries have your product been exported to ?
We have exported our product to over 20 countries , such as Russia , India ,Thailand, Indonesia, Malaysia, Tunisia, Brazil ,Iran, U.A.E ,Mexico, Colombia, Venezuela , Argentina etc.

5.Which international exhibition do you usually go to?
China Import and Export Fair (Canton Fair) ELEKTRO , Russia / FIEE ELéTRICA ,Brazil.

6.Can I visit your factory?
We have over 5000 square meters of workspace and sincerely welcome your business visit.

7.Do you accept OEM or ODM?
Of course.

8.How’ your production capacity? How long is the lead time ?
Monthly output 50,000 piece . It usually take us 20-30 days to finish the goods.

9.What’s your main payment term?
T/T ,LC ,D/P.

10.Any quality guarantee or after-sales service?
If any quality complaint , we will give out solution within 5 days.

11.Can sample fee be returned back to me ?
Sample amount can be deducted from your bulk order payment when order quantity is over 1000 pieces at the first time.

12.How many days it takes to finish the samples?
Usually 2-5 work days .


Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.


P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
