14x65mm Photovoltaic Solar Panel Fuse 15 To 32A 1300 And 1500Vdc Solar PV Series

China 14x65mm Photovoltaic Solar Panel Fuse 15 To 32A 1300 And 1500Vdc Solar PV Series supplier

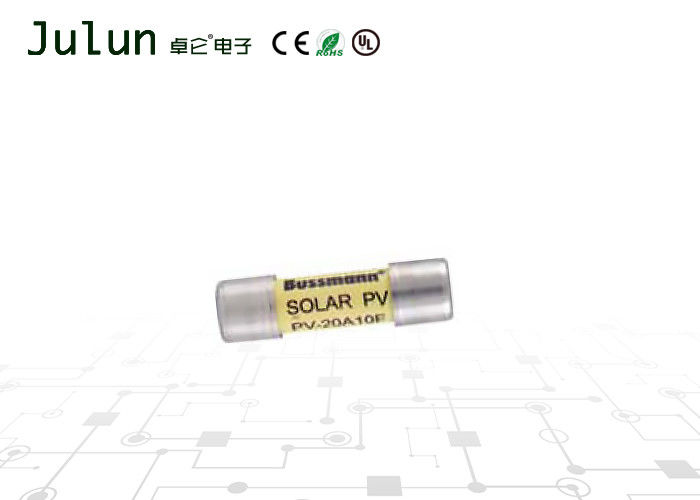

Large Image :  14x65mm Photovoltaic Solar Panel Fuse 15 To 32A 1300 And 1500Vdc Solar PV Series

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: BSM / PV

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Rated Voltage: 1000VDC Rated Current: 15 ~ 32A
Dimension: 14x65mm Material: Ceramic

14x65mm Photovoltaic Fuse in Solar Panel Applications 15 to 32A 1300 and 1500Vdc Solar PV Series



The 14 x 65mm fuse series has been specifically designed to protect and isolate PV arrays. The fuses are capable of breaking the low overload current generated by the faulty PV array (reverse current, multi-row array fault).





Packing: MOQ: 10

Packaging 100% recyclable

Technical Information:

Rated voltage: 1300Vdc (25 and 32A)

1500Vdc (15 and 20A)

Current Rating: 15-32A

Rated breaking capacity: 10kA

PV fuses are matched with: thin film batteries and 4", 5" and 6" crystalline silicon cells

Time constant: 1-3ms





Fuse size: 14x65mm

Job category: gPV and UL PV fuses

Standard / Certification: IEC 60269-6, RoHS Compliant

Pending review: UL 2579 and CCC





Product number Rated current Rated voltage Joule integral I2t (A2s) Power loss
Cylindrical Cylindrical belt
Mounting pin
Cylindrical
With 10mm hoop
Pre-Arcing Total at Rated Voltage 0.8 In In
PV-15A14LF PV-15A14L-T PV-15A14LF10F 15 1500Vdc 14 160 3.2 5.8
PV-20A14LF PV-20A14L-T PV-20A14LF10F 20 34 400 3.6 6.5
PV-25A14LF PV-25A14L-T PV-25A14LF10F 25 1300Vdc 65 550 4.1 7.5
PV-32A14LF PV-32A14L-T PV-32A14LF10F 32 105 900 5.7 10.4





Standard sizes





14x65mm Photovoltaic Solar Panel Fuse 15 To 32A 1300 And 1500Vdc Solar PV Series14x65mm Photovoltaic Solar Panel Fuse 15 To 32A 1300 And 1500Vdc Solar PV Series
