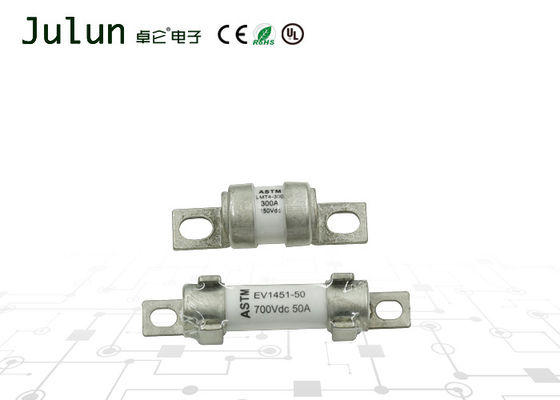

700V 50A Charging Pile Electric Vehicle Fuse High Voltage Energy Vehicle Fuse

China 700V 50A Charging Pile Electric Vehicle Fuse High Voltage Energy Vehicle Fuse supplier

Large Image :  700V 50A Charging Pile Electric Vehicle Fuse High Voltage Energy Vehicle Fuse

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: EV1451

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Material: Ceramics Rated Current: 5~50A
Interrupting Rating: 700Vdc/10000A Dimensions: 18x75mm

Electric Vehicle DC Fuses 700V 50A Hybrid Vehicle Fuses Ceramic Automotive Fuses



EV1451 Series_Rev.pdf


FEATURES


DC fuse for EV/HEV
Stud-mount, optional for other installtion
700Vdc ideal for EV or HEV application
Execllent DC performance
Special designed fuse base for vehicle situation


Electrical Characteristics
% of Ampere Rating (A) Operating
Min Max
200% 1 300
300% 0.2 30
500% 0.1 10



ELECTRICAL SPECIFICATIONS




Type Ordering P/N Electrical Characteristics
Single Rated Current Interrupting rating I2t
(Amp) A2S
EV1451-5 5 700Vdc/10000A 37.5
EV1451-8 8 96
EV1451-10 10 150
EV1451-15 15 330
EV1451-20 20 400
EV1451-25 25 625
EV1451-30 30 830
EV1451-32 32 1000
EV1451-40 40 1600
EV1451-50 50 2500


*Temperature Rise:<=45K with 60% of rated current


Dimension (mm)


700V 50A Charging Pile Electric Vehicle Fuse High Voltage Energy Vehicle Fuse
