6*30 10A 12A 30A 500VDC Ceramic Automotive Fuses Compliant with IEC60269 Breaking Capacity 30KA500VAC 20KA500VDC Protection
Product Details:
| Place of Origin: | China |
| Brand Name: | ASTM |
| Certification: | UL |
| Model Number: | HV660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 0.5~1USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
Detail Information |
|||
| Mounting Method: | PCB Lead Installation | The Performance Refers: | IEC60269, And The Environmental Reliability Complies With ISO8820, JASO D622, And GB/T31465 |
|---|---|---|---|
| Rated Current: | 10A 12A 15A 16A 20A 25A 30A | Installation: | PCB Lead Installation |
| Installation Mode: | Recommended Tight Torque | SIZE: | 6*30mm |
| Material: | Ceramic Copper Silver Quartz Sand Gold | Feature: | Small Size With High Current Rating For Short Circuit Protection |
| Highlight: | 6x30 ceramic automotive fuses,30A 500VDC ceramic fuses,IEC60269 compliant automotive fuses |
||
Product Description

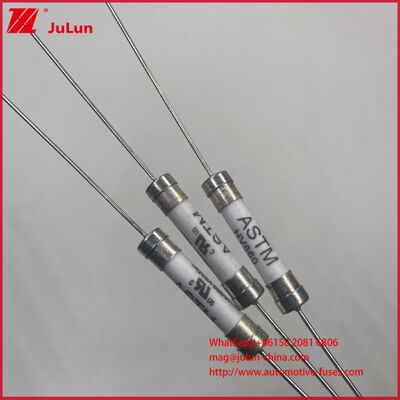

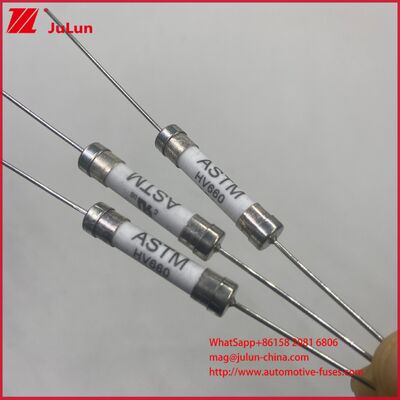

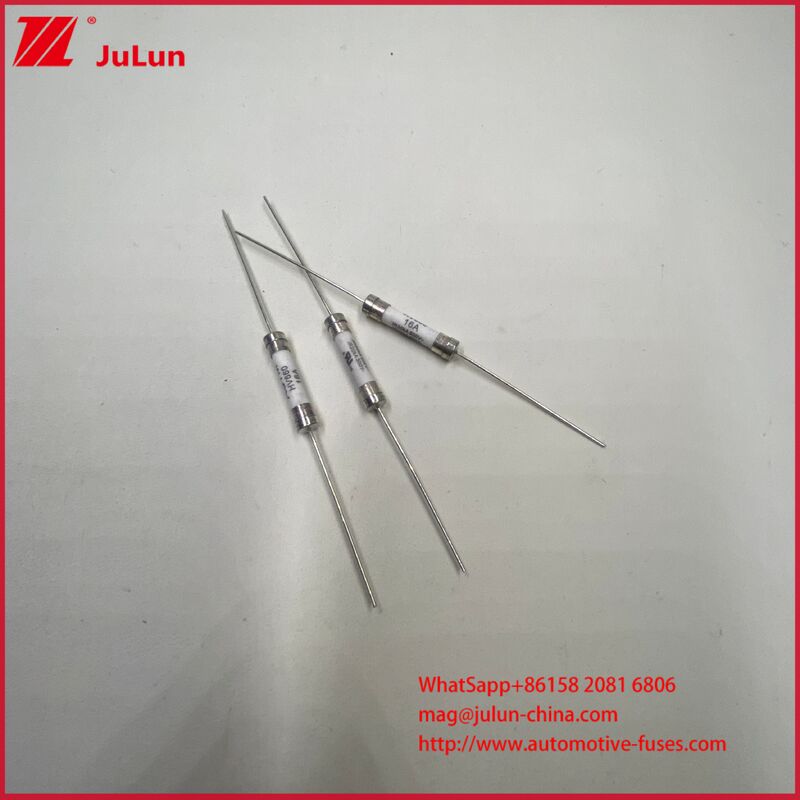

6×30 10A/12A/30A 500VDC Ceramic Automotive Fuses
High-performance ceramic automotive fuses compliant with IEC60269 standards, designed for reliable circuit protection in automotive applications.
Standards: IEC60269 Compliant
Current Ratings: 10A, 12A, 30A
Voltage Rating: 500VDC
Breaking Capacity: 30KA 500VAC / 20KA 500VDC

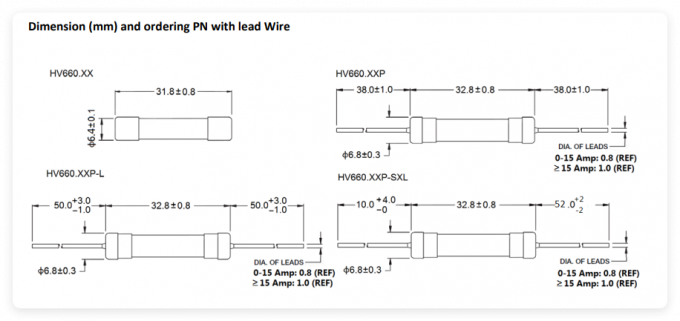

Dimensions: 6×30 mm
Construction: Ceramic
Application: Automotive Circuit Protection
