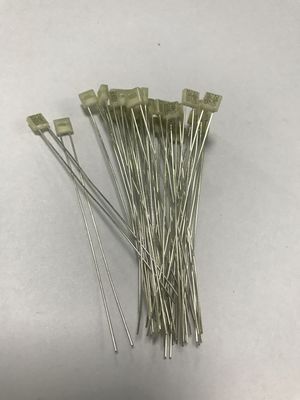

Ceramic Case 1A 250V Thermal Link Fuse For Switched Mode Power Supply

Alloy Thermal-link/ Thermal Cutoff (TCO) is defined as a non-resettable protective device functioning one time only. It is widely used in electrical equipment. Alloy TCO is mainly consist of fusible alloy, flux, plastic or ceramic case, sealant epoxy and lead wires. Normally, fusible alloy is jointed to the two lead wires. Under abnormal cond 仆 ion s, when the temp. reaches to the fusing temp. of alloy TCO, the fusible alloy melts and quickly retracts to the two lead wire ends with the aid of the flux and dis­ connects the circuit completely. SET's alloy TCO is classified into Axial and Radial shapes, with Rated Current 1 A to 200 A, Rated Functioning Temp. 76°C to 230°C, with CCC, UL, CUL, VDE, TUV, KTL, PSE, Approvals and RoHS, REACH compli­ ant.Alloy Thermal-link/ Thermal Cutoff (TCO) is defined as a non-resettable protective device functioning one time only. It is wide­ly used in electrical equipment. Alloy TCO is mainly consist of fusible alloy, flux, plastic or ceramic case, sealant epoxy and lead wires. Normally, fusible alloy is jointed to the two lead wires. Under abnormal cond 仆 ion s, when the temp. reaches to the fusing temp. of alloy TCO, the fusible alloy melts and quickly retracts to the two lead wire ends with the aid of the flux and dis­ connects the circuit completely. SET's alloy TCO is classified into Axial and Radial shapes, with Rated Current 1 A to 200 A, Rated Functioning Temp. 76°C to 230°C, with CCC, UL, CUL, VDE, TUV, KTL, PSE, Approvals and RoHS, REACH compli­ ant.



- High accuracy of functioning temp.

- Sealed construction

- Low impedance

- Compact construction and miniaturized size.

- Rated fuctioning temp.:(76-230) °C

- Radial and axial shapes

- Lead wires can be insulated


item	value
Product name	Thermal link fuse
Brand	SET
Model	F3
Rated operating temperature (Tf)	125°C
Fusing Temp.	121±2°C
Rated current (Ir)	1A
TM	200°C
Rated voltage (Ur)	250V
Size	60*5.3*2.5mm
Material	Ceramic case
