10000 Times Mechanical Life Intelligent Circuit Breaker Graiqf-125 AC220V
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | UL;CE;CCC |
| Model Number: | GRAIQF-125 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Rated Voltage: | AC220V 50/60Hz | Current: | 32A, 40A, 63A, 80A, 100A |
|---|---|---|---|
| Extreme: | 1P, 2P, 3P, 4P | Installation Category: | Level 2, Level 3 |
| The Rated Short -circuit Segmented Ability: | 10KA | Rating Impact Tolerance Voltage: | ≥6KV |
| Mechanical Life: | > 10000 Times | Electrical Life: | > 6000 Times |
| Size Specifications: | 53.5*89.5*73 | Installation Method: | Guide Rail Installation |
| High Light: | AC220V Intelligent Circuit Breaker,100A Intelligent Circuit Breaker,3P Smart Circuit Breaker |
||
Product Description

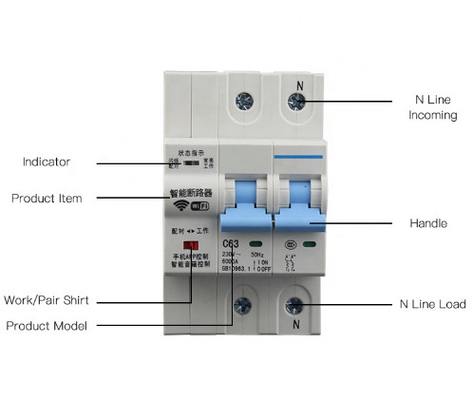

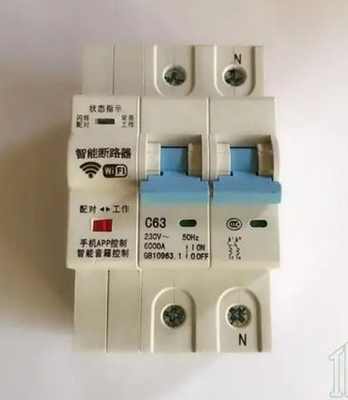

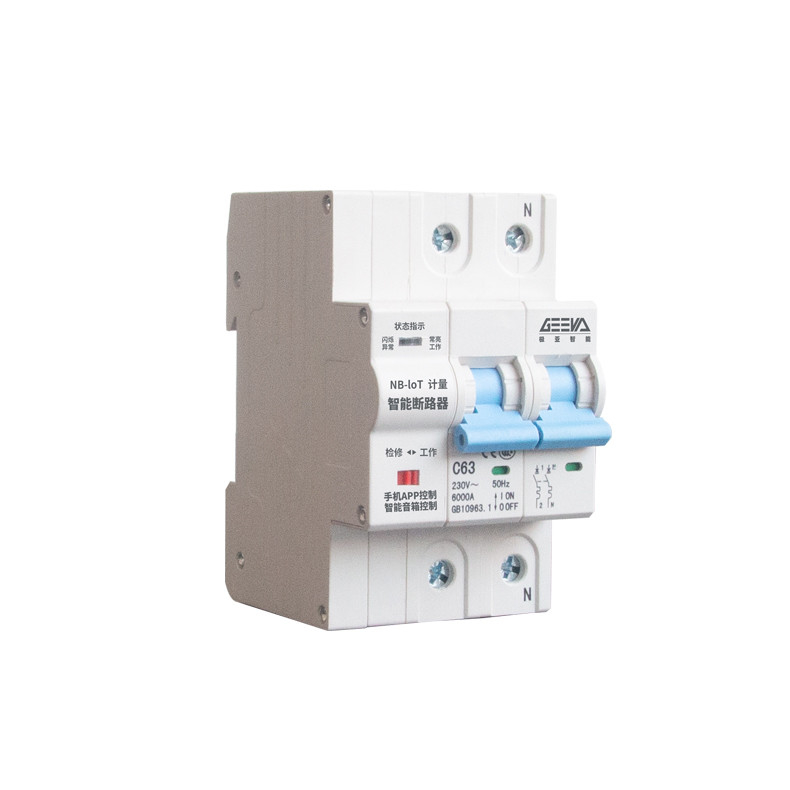

Intelligent Circuit Breaker Graiqf-125
The company's business philosophy is to continue to create value for customers, continue to optimize front-end marketing and logistics support team, as the industry supply chain professional partners. Provide value-added services such as requirements creation, solutions, technical support, warehousing, logistics and e-commerce. Meet customer requirements of original equipment manufacturers, original design manufacturers, electronic manufacturing service providers and small and medium enterprises. In order to better serve customer of Lun Lun company, Zhuo Lun has set up branch and office in China, Hongkong, China, Southern China, central China, East China and so on. Welcome to inquire and cooperate.
Product Presentation
Product model: GRAIQF-125
Rated voltage: AC220V 50/60Hz
Current: 32A, 40A, 63A, 80A, 100A
Extreme: 1P, 2P, 3P, 4P
Installation category: level 2, level 3
The prescribed use temperature: -25 ℃-+65 ℃
Instant deduction form: C
The rated short -circuit segmented ability: 10KA
Rating impact tolerance voltage: ≥6KV
Mechanical life:> 10000 times
Electrical life:> 6000 times
Size specifications: 53.5*89.5*73
Installation method: guide rail installation
