Red Shell Exchange Line Bus Bar Box M8 300A Large Current 48V RV Converter
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | UL;IEC;CSA;CCC;ROHS |
| Model Number: | F3607 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Base & Cover Material: | Nylon, Glass Fiber Reinforced | Bus Material: | Brass, Nickel Plated |
|---|---|---|---|
| Max Operating Voltage: | DC 48V | Max Continuous Amp: | 300A |
| Terminal Stud Size: | 4x M8 (5/16") | Dimensions (L X W X H): | 138 X 69 X 44.5mm |
| High Light: | 48V Bus Bar Box,RV Converter Bus Bar Box,300A Heavy Duty Busbar |
||
Product Description
New Red Shell Exchange Line M8 Specification 300A Large -Current 48V RV Converter Busbar
The company's business philosophy is to continue to create value for customers, continue to optimize front-end marketing and logistics support team, as the industry supply chain professional partners. Provide value-added services such as requirements creation, solutions, technical support, warehousing, logistics and e-commerce. Meet customer requirements of original equipment manufacturers, original design manufacturers, electronic manufacturing service providers and small and medium enterprises. In order to better serve customer of Lun Lun company, Zhuo Lun has set up branch and office in China, Hongkong, China, Southern China, central China, East China and so on. Welcome to inquire and cooperate.
Product Presentation

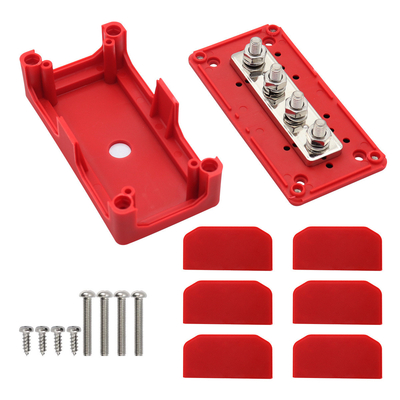

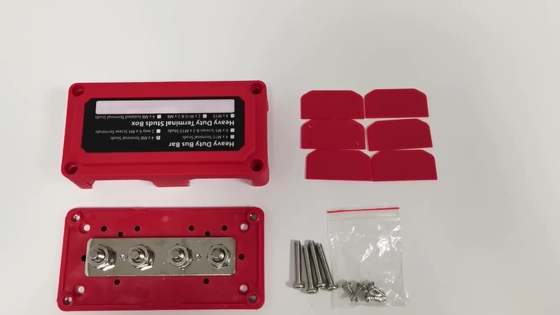

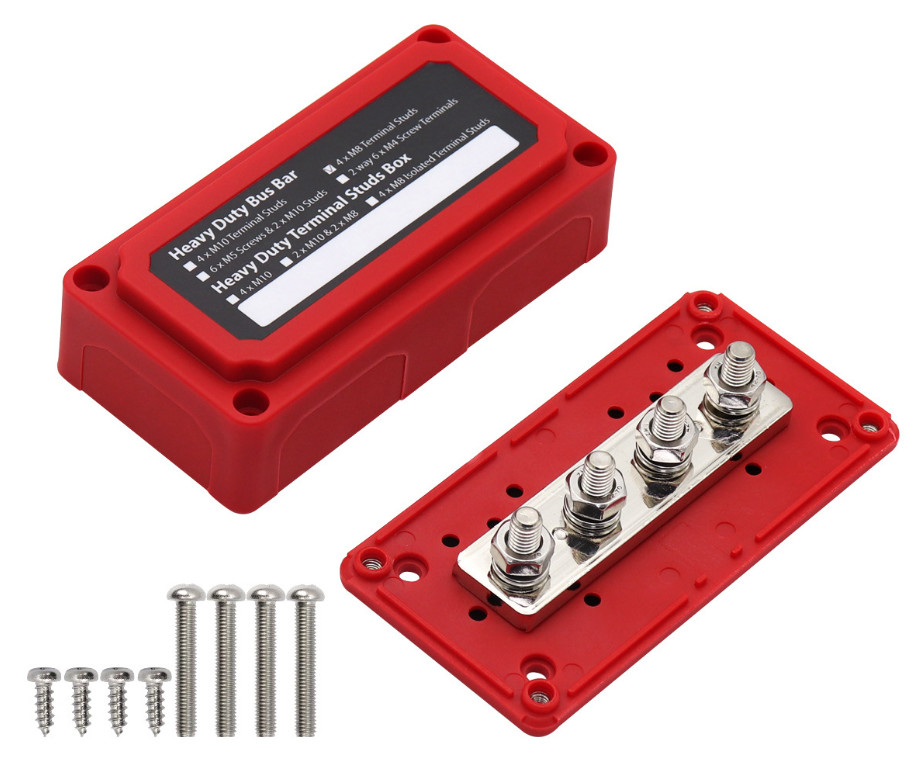

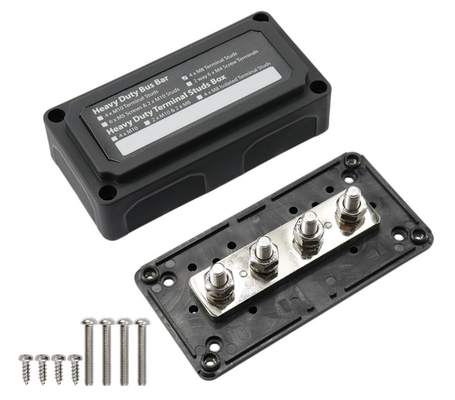

Heavy-Duty Module Design Bus Bar Box with 4 Terminal Studs
Features
Highest amperage rated bus bar (300A) with M8 terminal studs (also available in M10)
Module box design for easy wiring configurations
Glass Fiber reinforced Nylon base and enclosure ensures great mechanical strength and durability
Removable windows for unobstructed wiring
Blank write-on space on the top allows easy labeling for each branch
Specification
Base & Cover Material | Nylon, Glass Fiber reinforced
Bus Material | Brass, Nickel plated
Max Operating Voltage | DC 48V
Max Continuous Amp | 300A
Terminal Stud Size | 4x M8 (5/16")
Dimensions (L x W x H) | 138 x 69 x 44.5mm
