RV Yacht Large Current Exchange Line Row Copper Bus Bar 150A 48V DC 10 Bit
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | UL;IEC;CSA;CCC;ROHS |
| Model Number: | F3884-10P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Base Material: | PBT, Glass Fiber Reinforced | Bus Material: | Copper, Brass-plated |
|---|---|---|---|
| Max Operating Voltage: | DC 48V | Max Continuous Amp: | 150A |
| Screw Size: | No. 8-32X1/4 | Terminal Stud Size: | M6 X 25mm |
| High Light: | Yacht Copper Bus Bar,PBT Base 48V Bus bar,10 Bit Copper Bus Bar |
||
Product Description
RV Yacht Flow Row Large Current Exchange Line Row 150A 48VD C 10 -Bit Busbar
The company's business philosophy is to continue to create value for customers, continue to optimize front-end marketing and logistics support team, as the industry supply chain professional partners. Provide value-added services such as requirements creation, solutions, technical support, warehousing, logistics and e-commerce. Meet customer requirements of original equipment manufacturers, original design manufacturers, electronic manufacturing service providers and small and medium enterprises. In order to better serve customer of Lun Lun company, Zhuo Lun has set up branch and office in China, Hongkong, China, Southern China, central China, East China and so on. Welcome to inquire and cooperate.
Product Presentation

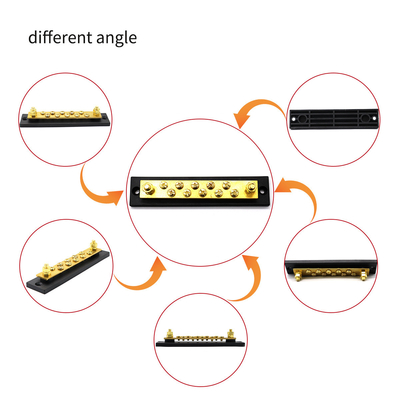

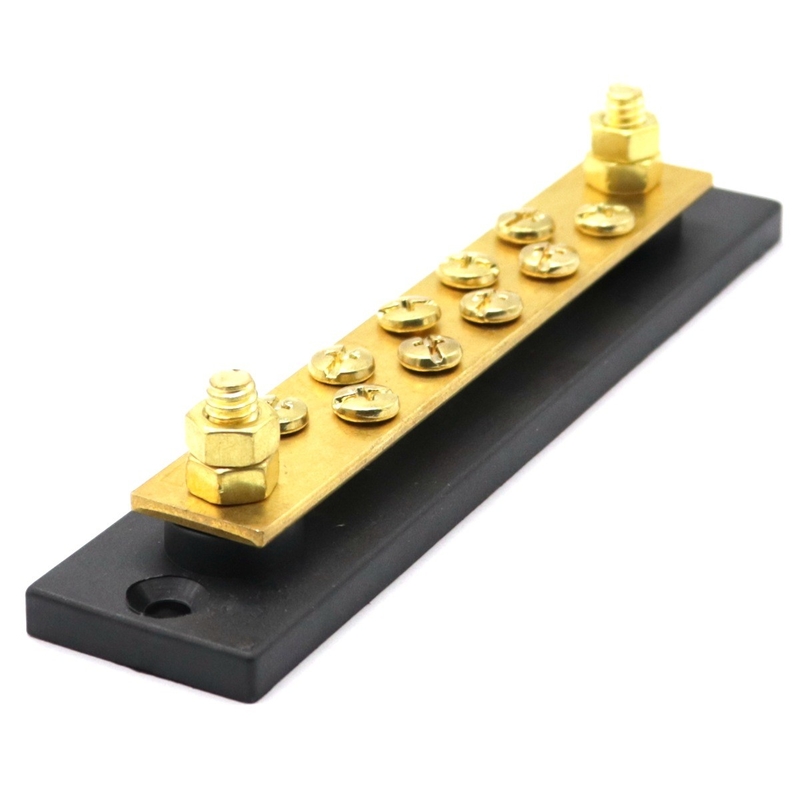

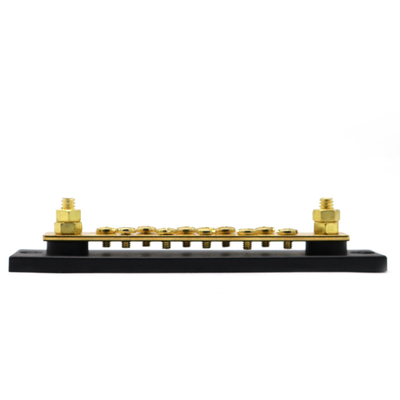

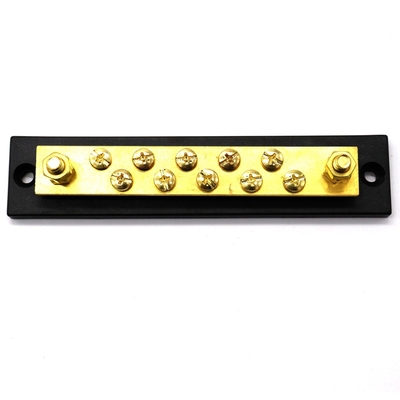

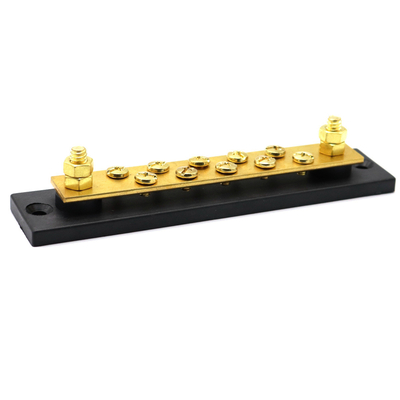

Large Current Bus Bar (10P)
Features
Glass Fiber reinforced PBT base ensures great mechanical strength and high temperature resistance.
Brass plated copper bus allows currents up to 150A
Specification
Base Material | PBT, Glass Fiber reinforced
Bus Material | Copper, Brass-plated
Max Operating Voltage | DC 48V
Max Continuous Amp | 150A
Screw Size | No. 8-32X1/4
Terminal Stud Size | M6 x 25mm
Dimensions (L x W) | 146 x 31.5mm
