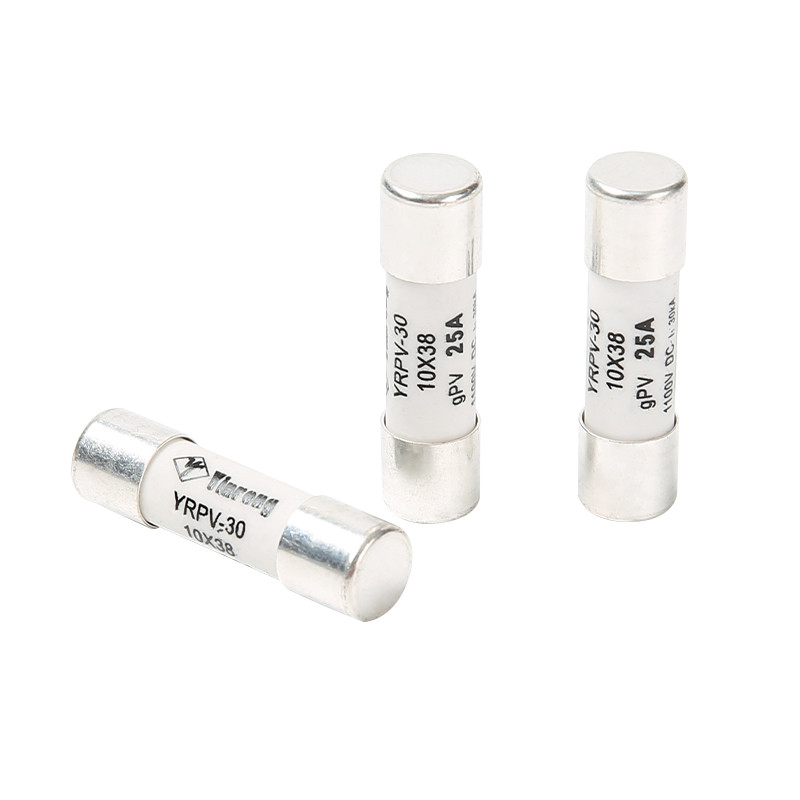

Solar Energy Photovoltaic Vehicle 1500VDC Fast Acting Fuse 2-30A Box Of Confluence
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | UL;IEC;CSA;CCC;ROHS |
| Model Number: | YRPV30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Voltage Range: | 1500V DC | Current Range: | 2A~30A |
|---|---|---|---|
| Division Ability: | 50ka @ 1500VDC | Terminal: | BT (M8) |
| Color: | White | Material: | Ceramics |
| High Light: | Photovoltaic Vehicle Fast Acting Fuse,1500VDC Ceramics Fast Acting Fuse,30A Solar PV Fuse |
||
Product Description
Solar photovoltaic confluence fuse
This series fuse is suitable for DC junction box, DC1500V rated voltage, Max rated current 35A, as to possible solar PV
junction box-shaped plate produced by PV list of current feedback circuit overload and short circuit current of the
breaker, to protect the whole PV shaped plate, the fuse can be optional as in any other DC circuit overload or short circuit protection for electrical components. Rated breaking capacity of 20kA-40kA /DC1500V, the products conform to IEC60269-1, GB/T13539.1, IEC60269-6, GB/T13539.6 standards, and obtained the certification of UL and TUV .
