PV312-XL3 Q Pv String Fuses Bolt Type Photovoltaic Low Arc Voltage 630A 1500VDC
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | UL |
| Model Number: | PV312-XL3 T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Rated Voltage: | 1500VDC | Rated Current: | 630A |
|---|---|---|---|
| Use Category: | Pv String Fuses | Be Applicable To: | Solar System, Junction Box |
| Style: | Tubular With Mounting Hole | Model: | PV312-XL3 Q EVS |
| Material: | Ceramic Automotive Fuse | ||
| High Light: | Photovoltaic Pv String Fuses 1500VDC,Pv String Fuses 630A,RoHS Solar PV Fuse |
||
Product Description
PV FUSE Bolt type photovoltaic low arc voltage, PV312-XL3 Q , 630V 1500VDC , protect and isolate the photovolta
| Basic product information | |||
| Made in China | PV312 series | ||
| ● Rated voltage: DC1500V ●Rated current:250-400A ● Category of use: gPV |
XL3-T 250/315/350/400A | ||
| ● Breaking capacity: DC 50kA(L/R:1~3ms) ●Structure, performance reference: GB13539/IEC60269 ●CE ,TUV, Comply with EU and China RoHS directive |
|||
|
This product is a bolt type full range of photovoltaic protection fuse, with Low arc voltage, low power consumption, high breaking ability and so on. protection And insulate photovoltaic cell modules or arrays, as well as protect others to fit The circuit system of.
|
|||
| PV312 series | |||

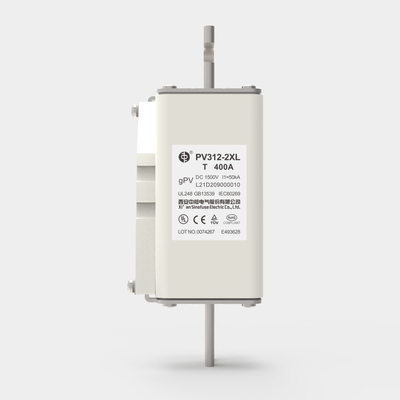

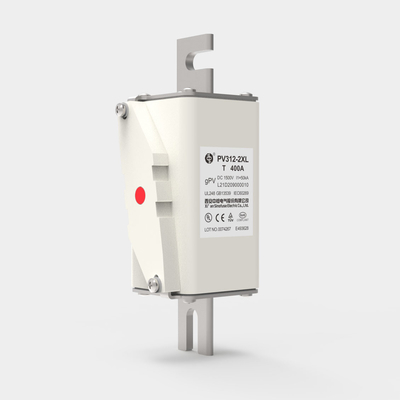

| NO: PV312-2XL-T | |||
| Size:2XL-T (See size map) Rated current:250/315/350/400A | |||
| Power consumption: 58W~106W | Rated voltage:1500VDC | ||
| Note: Mounting mode: M10 bolts, nuts recommended torque:21N.m | |||
Road Vehicle Round Tube Bolt Connectors PV312-XL3-T 630A 1500VDC EVS
Product Presentation
PV312-XL3-T 630A 1500VDC
Ceramic Automotive Fuses,New energy vehicles refer to vehicles that adopt unconventional vehicle fuel as a power source (or use conventional vehicle fuel and adopt new on-board power devices), integrate advanced technology in power control and drive of vehicles, and form vehicles with advanced technical principles, new technology and new structure. New energy vehicles include pure electric vehicles, extended-range electric vehicles, hybrid electric vehicles, fuel cell electric vehicles, hydrogen engine vehicles, other new energy vehicles, etc.
