• Photovoltaic Low Arc Voltage PV String Fuses Bolt Type PV1000VDC 1-32A
Photovoltaic Low Arc Voltage PV String Fuses Bolt Type PV1000VDC 1-32A

Photovoltaic Low Arc Voltage PV String Fuses Bolt Type PV1000VDC 1-32A

Product Details:

Place of Origin: CHINA
Brand Name: JULUN
Certification: UL
Model Number: PV1000

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 100
Delivery Time: 4-6 weeks
Payment Terms: T/T
Supply Ability: 1,000,000 PCS
Get Best Price Contact Now

Detail Information

Rated Voltage: 1000VDC Rated Current: 1~32A
Use Category: Pv String Fuses Be Applicable To: Solar System, Junction Box
Style: Tubular With Mounting Hole Model: PV1000
High Light:

Low Arc Voltage PV String Fuses

,

1000VDC PV String Fuses

,

32A Solar PV Fuse

Product Description

PV FUSE Bolt Type Photovoltaic Low Arc Voltage, PV1000VDC 1~32A , Protect And Isolate The Photovolta

Basic product information
Made in China      PV1000 series
Rated voltage: DC1000V
Rated current:1~32A
Category of use: gPV
     PV1000VDC 1~32A

Breaking capacity: DC 50kA(L/R:1~3ms)
Structure, performance reference: GB13539/IEC60269
●CE ,TUV, Comply with EU and China RoHS directive



This product is a bolt type full range of photovoltaic protection fuse, with Low arc voltage, low power consumption, high breaking ability and so on. protection And insulate photovoltaic cell modules or arrays, as well as protect others to fit

The circuit system of.









pv series
  NO: pv1000
Size:10*38mm                        Rated current:1~32A
Power consumption: 58W~106W Rated voltage:1000VDC
Note: Mounting mode: M10 bolts, nuts recommended torque:21N.m



Road Vehicle Round Tube Bolt Connectors PV1000 1000VDC 1~32A  EVS

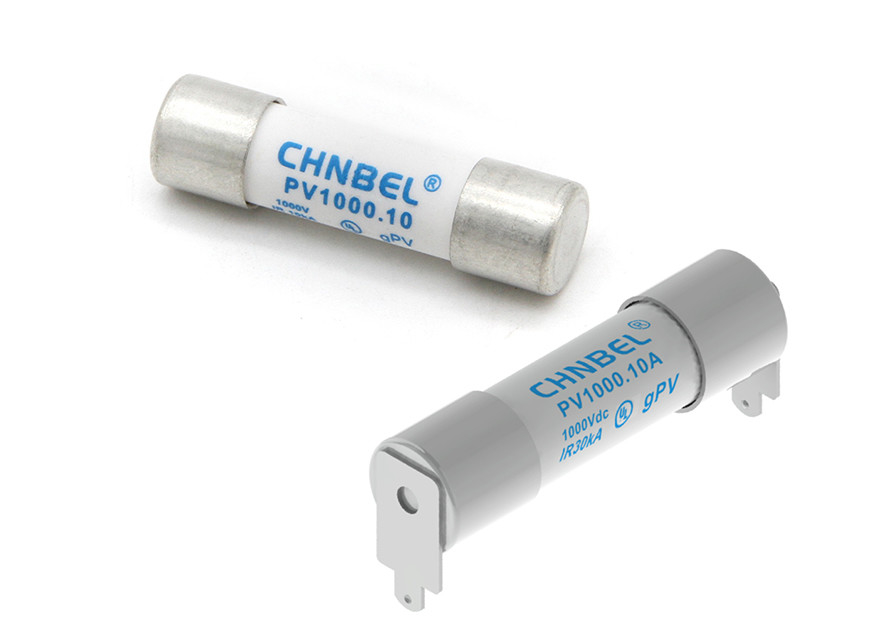

Product Presentation



PV1000 1~32A 1000VDC



Photovoltaic Low Arc Voltage PV String Fuses Bolt Type PV1000VDC 1-32A 0



Ceramic Automotive Fuses,New energy vehicles refer to vehicles that adopt unconventional vehicle fuel as a power source (or use conventional vehicle fuel and adopt new on-board power devices), integrate advanced technology in power control and drive of vehicles, and form vehicles with advanced technical principles, new technology and new structure. New energy vehicles include pure electric vehicles, extended-range electric vehicles, hybrid electric vehicles, fuel cell electric vehicles, hydrogen engine vehicles, other new energy vehicles, etc.
