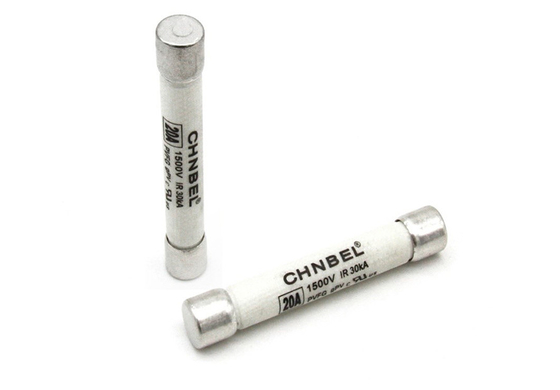

Bolt Type Photovoltaic Low Arc Voltage PV FUSE PVFG 1500VDC 15-25A
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | UL |
| Model Number: | PVFG 1500VDC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Rated Voltage: | 1500VDC | Rated Current: | 15~25A |
|---|---|---|---|
| Use Category: | Pv String Fuses | Be Applicable To: | Solar System, Junction Box |
| Style: | Tubular With Mounting Hole | Model: | PVFG 1500VDC |
| High Light: | Bolt Type PV FUSE,Low Arc Voltage PV FUSE,1500VDC Solar PV Fuse |
||
Product Description
| Basic product information | |||
| Made in China | PVFG 1500VDC series | ||
| ● Rated voltage: DC1500V ●Rated current:15~25A ● Category of use: gPV |
PVFG 1500VDC 15-25A | ||
| ● Breaking capacity: DC 50kA(L/R:1~3ms) ●Structure, performance reference: GB13539/IEC60269 ●CE ,TUV, Comply with EU and China RoHS directive |
|||
|
This product is a bolt type full range of photovoltaic protection fuse, with Low arc voltage, low power consumption, high breaking ability and so on. protection And insulate photovoltaic cell modules or arrays, as well as protect others to fit The circuit system of.
|
|||
| PVFG1500series | |||
| NO: PVFG1500 | |||
| Size: 10x65mm Rated current:15~25A | |||
| Power consumption: 58W~106W | Rated voltage:1500VDC | ||
| Note: Mounting mode: M10 bolts, nuts recommended torque:21N.m | |||
Road Vehicle Round Tube Bolt Connectors PVFG 1500VDC 15-25A EVS
Product Presentation
PVFG 1500VDC 15-25A
Ceramic Automotive Fuses,New energy vehicles refer to vehicles that adopt unconventional vehicle fuel as a power source (or use conventional vehicle fuel and adopt new on-board power devices), integrate advanced technology in power control and drive of vehicles, and form vehicles with advanced technical principles, new technology and new structure. New energy vehicles include pure electric vehicles, extended-range electric vehicles, hybrid electric vehicles, fuel cell electric vehicles, hydrogen engine vehicles, other new energy vehicles, etc.
