Chip Type Electric Drive Fuse RS306-02-J5P 1000A 250VDC Automatic Reset Function
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | ROHS , JASO D622 ISO08820, GB/T31465 |
| Model Number: | RS306-2-J5P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 3~4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Rated Voltage: | 250VDC | Rated Current: | 1000A |
|---|---|---|---|
| Use Category: | EVRoad Vehicle Round Tube Bolt Connectors Ceramic Automotive Fuses | Installation Mode: | EV Bolted Type Round Tub |
| Characteristic: | Small Size, Strong Breaking Ability | Purpose 1: | Electric Cars Drive The Electric System |
| Purpose 4: | Energy Storage Capacitor, Frequency Conversion Controller, Charger | Material: | Ceramic, Silver, Copper, Quartz Sand |
| High Light: | Electric 1000A drive Fuse,JASO Chip type Electric drive Fuse,250VDC Electric drive Vehicle Fuse |
||
Product Description
EV Bolted Type Round Tube Fuses Ceramic Automotive Fuse For Vehic Road Vehicle Electric Vehicle Fuse
RS306-2-J5P 1000A 250VVDC
Basic product information
●Bolted fuse for road vehicles, performance reference JASO D622, environmental reliability in line with IS08820, JASO D622,GB/T31465
●Rated voltage: DC750V,DC750V@EV325-5FL
● Rated current: 16A ~ 400A"
● Breaking capacity: 50KA@EV322-3E*/3FM/4GL,L/R=2±0.5m,20 ka @ EV322-5 fl / 5 nm, L/R = 2 + / - 0.5 m
● The character matches the RoHS
This series of products are bolt type fuses for road vehicles, with small size, high breaking ability, can withstand strong temperature shock,
mechanical vibration/impact,Shock, current shock, chemical load, suitable for road vehicle industry applications, can be used as electric vehicle
drive power system, power conversion system, storage.Short circuit, overload and backup of energy and power batteries, energy storage capacitors,frequency conversion controllers, chargers, conductors and other vehicle components and equipment,Short circuit,overload and backup of energy,and power batteries, energy storage capacitors, frequency conversion controllers, chargers, conductors and other vehicle components and equipment Protect.

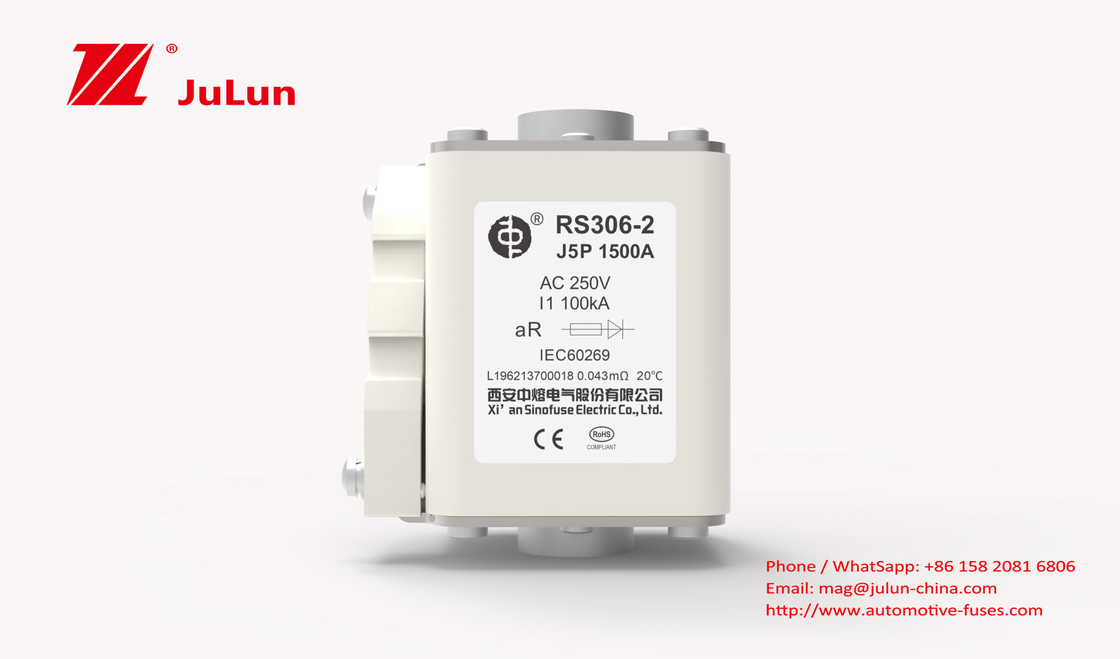

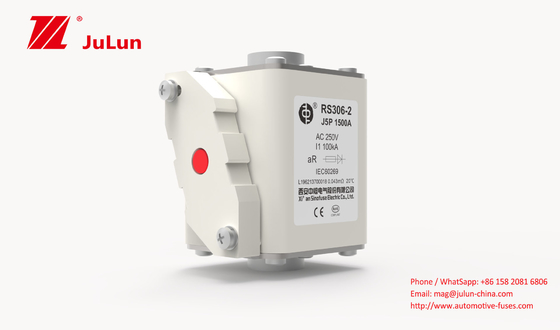

Product Presentation
EV Bolted Type Round Tube Fuses For Vehic Road Vehicle Electric Vehicle Fuse
Ceramic Automotive Fuses,New energy vehicles refer to vehicles that adopt unconventional vehicle fuel as a power source (or use conventional vehicle fuel and adopt new on-board power devices), integrate advanced technology in power control and drive of vehicles, and form vehicles with advanced technical principles, new technology and new structure. New energy vehicles include pure electric vehicles, extended-range electric vehicles, hybrid electric vehicles, fuel cell electric vehicles, hydrogen engine vehicles, other new energy vehicles, etc.
