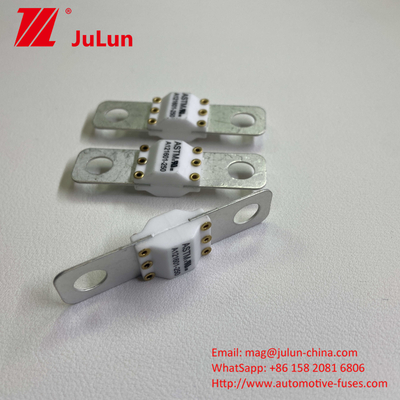

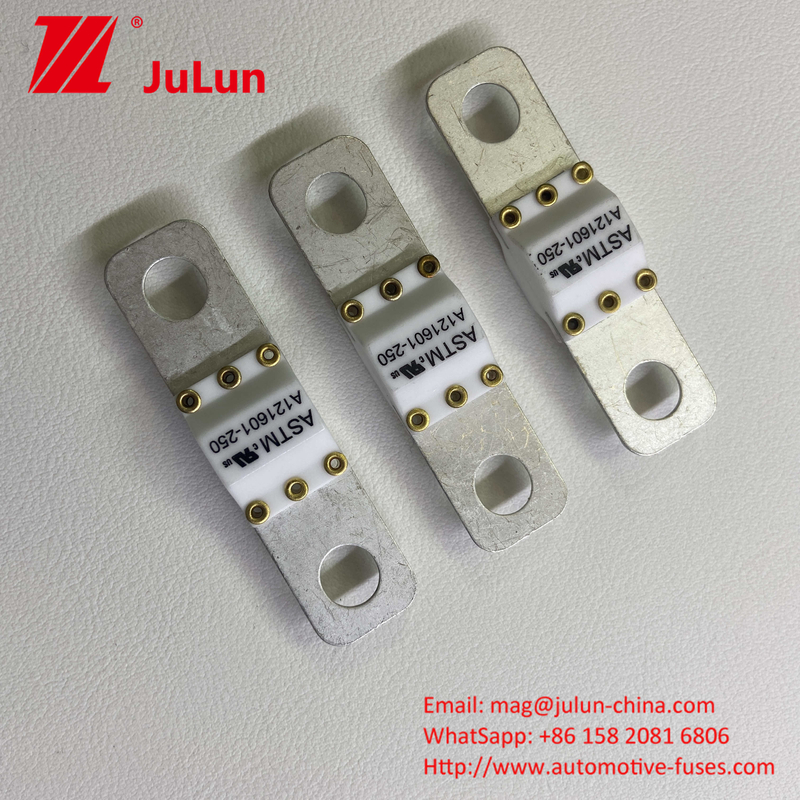

350A 125VDC Electric Vehicle Fuse With Breaking Equipment Power Tools Fire Protect
Product Details:
| Place of Origin: | China |
| Brand Name: | JULUN |
| Certification: | CE UL CCC |
| Model Number: | A121601 50~350A 125VDC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 3~6USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~4weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
Detail Information |
|||
| Temperature Range: | -40℃~125℃ | Recommended Tight Torque:: | M6: 5-5.5N·m ; M5: 3.5-4N·m |
|---|---|---|---|
| Size: | 6*32mm, Can Bring Leads | Net: | 15g |
| Certificate: | RoHS Compliant And Lead Free | Rated Voltage: | 63VDC 100VDC 125VDC |
| Appearance Features:: | Mall Size With High Current Rating For Short Circuit Protection | Rated Current: | 50A 60A 80A 100A 150A 200A 250A 300A 250A |
| High Light: | Electric Vehicle Fuse With Breaking,Electric Vehicle Fuse 350A,6*32mm automobile fuses |
||
Product Description
Product Description:
Electric Vehicle Fuse is a reliable and reliable safety device for electric vehicles. It is RoHS Compliant And Lead Free, and is provided with a certificate as proof. The fuse is rated for current of 50A, 60A, 80A, 100A, 150A, 200A, 250A, and 300A, and is designed to operate at 63VDC, 100VDC, and 125VDC. This fuse is suitable for a range of applications, including automotive, motorcycles, power tools, ships, electrical equipment, industrial equipment, and medical equipment. In addition, it has a wide temperature range, from -40℃ to 125℃.
This particular Electric Vehicle Fuse is also AC Ev Charger Adapter Compatible and can be used for home ev charger and portable EV charger for electric cars. This makes it an ideal product for ensuring safety and reliability for any electric vehicle.
Features:
- Product Name: Electric Vehicle Fuse
- Certificate: RoHS Compliant And Lead Free
- Application: Automotive, Motorcycles, Power Tools, Ships, Electrical Equipment, Industrial Equipment, Medical Equipment
- Rated Voltage: 63VDC 100VDC 125VDC
- Net: 15g
- Appearance features: Mall Size With High Current Rating For Short Circuit Protection
- DC Electric Car Charging: 22KW Charger
- 22KW Charger Fuse: Short Circuit Protection
Technical Parameters:
| Attributes | Parameters |
|---|---|
| Certificate | RoHS Compliant And Lead Free |
| Net | 15g |
| Package | Carton Box |
| Application | Automotive, Motorcycles, Power Tools, Ships, Electrical Equipment, Industrial Equipment, Medical Equipment |
| Size | 6*32mm, Can Bring Leads |
| Appearance features | Mall Size With High Current Rating For Short Circuit Protection |
| Rated Voltage | 63VDC 100VDC 125VDC |
| Rated Current | 50A 60A 80A 100A 150A 200A 250A 300A 250A |
| Material | Silver Plate, Copper, Ceramic, Quartz Sand |
| Apply to | Automobiles, Batteries, Electrical Machinery, Ships, Motorcycles, Equipment, And Other Products |
Applications:
JULUN A121601 50~350A 125VDC Electric Vehicle Fuse is a reliable and high performance fuse for short circuit protection, specially designed for home EV chargers, 7KW chargers, EV DC fast chargers, EV DC quick charging stations. It features a small size with high current rating, and is available in rated currents of 50A, 60A, 80A, 100A, 150A, 200A, 250A and 300A. It has a net weight of 15g, and can endure a breaking capacity of 63Vdc/8kA * 100Vdc/6KA * 125Vdc/3KA. The recommended tight torque is M6: 5-5.5N·m and M5: 3.5-4N·m. It is certified by CE, UL and CCC, and the minimum order quantity is 100. The packaging is carton, and the price ranges from 3 to 6 USD. The delivery time is usually 2 to 4 weeks, and the payment terms are T-T. The supply ability is 1000K/PCS.
Customization:
Brand Name: JULUN
Model Number: A121601 50~350A 125VDC
Place of Origin: China
Certification: CE, UL, CCC
Minimum Order Quantity: 100
Price: 3~6 USD
Packaging Details: Carton
Delivery Time: 2~4 weeks
Payment Terms: T/T
Supply Ability: 1000K/PCS
Rated Current: 50A, 60A, 80A, 100A, 150A, 200A, 250A, 300A, 350A
Application: Automotive, Motorcycles, Power Tools, Ships, Electrical Equipment, Industrial Equipment, Medical Equipment
Temperature Range: -40℃~125℃
Certificate: RoHS Compliant and Lead Free
Apply to: Automobiles, Batteries, Electrical Machinery, Ships, Motorcycles, Equipment, and other products
Compatible with: 22KW Charger, AC Ev Charger Adapter Compatible, AC Ev Charger Adapter Compatible
