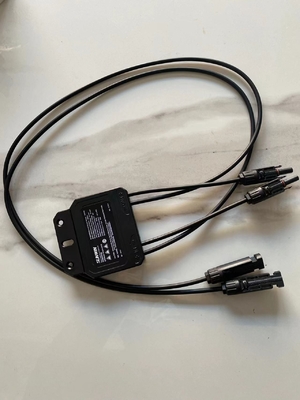

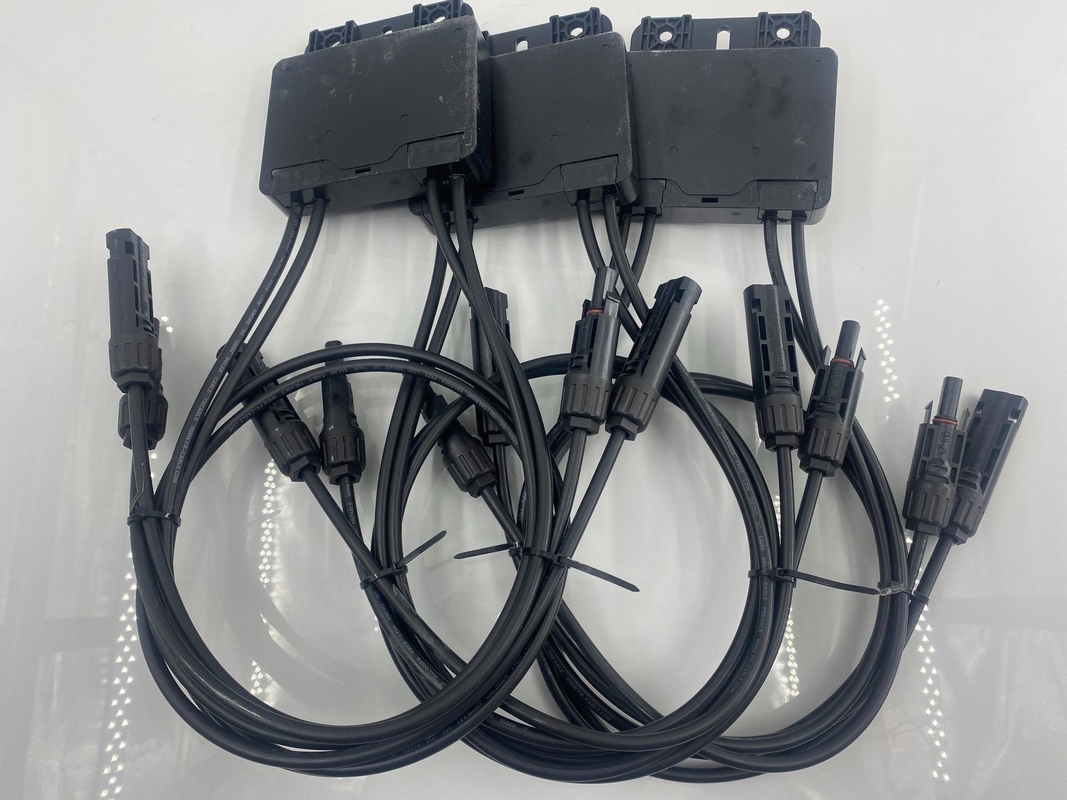

600w Solar PV Fuse Optimizer 42VDC 105*100*21mm With MPPT
Product Details:
| Place of Origin: | China |
| Brand Name: | JULUN |
| Certification: | UL1741,IEC62109-1 |
| Model Number: | TW-OPT600-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | 70 |
| Packaging Details: | carton |
| Delivery Time: | 2weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS/day |
|
Detail Information |
|||
| Maximum Rated Input DC Power: | 600W | Maximum Input Current: | 15A DC |
|---|---|---|---|
| Maximum Input Voltage: | 55V | MPPT Operating Range: | 8~55V |
| Maximum Output Current: | 15ADC | Overcurrent Protection: | 18ADC |
| Maximum Output Voltage: | 42VDC | Maximum Efficiency: | 99.5% |
| DC Short-Circuit Protection: | Yes | DC Input Connector: | MC4 |
| Weight(includingcables: | 510g | OD Of Wire: | 5.7/6.1/6.4mm |
| Dimensions(W*L*H): | 105*100*21mm | Input Wire Length: | 0.5m |
| Output Wire Length: | 1m | Operating Temperature Range: | -40°C~85°C |
| EMC: | IEC61000-6-2, IEC61000-6-3 | Waterproof Class: | IP68 |
| Fire Rating Degree: | 5VA | Application: | Solar PV System |
| Housing Material: | Ceramic | Indication: | LED |
| Interrupting Rating: | 10kA | Mounting Type: | Panel Mount |
| Operating Temperature: | -40°C To +85°C | Product Name: | Solar PV Fuse |
| Protection Type: | Over-current Protection | Warranty: | 2 Years |
| High Light: | 600w Solar PV Optimizer,Solar PV Fuse with MPPT,42 VDC Solar PV Optimizer |
||
Product Description
Mppt Solar PV Optimizer 600w Solar Optimizer
Product features:
1. It can improve the power generation efficiency of solar panels by 20-30%.
2.25 years of life, perfectly matched solar module.
3. Safe solar system, remote shutdown, eliminate high voltage danger.
4. Flexible system design to maximize the utilization rate of air queries.
