Battery Dc Pv Power Optimizer Battery Panel Mppt Photovoltaic Power Boost Mc4 600w Waterproof
Product Details:
Place of Origin: | China |
Brand Name: | JULUN |
Certification: | UL1741,IEC62109-1 |
Model Number: | TW-OPT600-1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 |
---|---|
Price: | 70 |
Packaging Details: | carton |
Delivery Time: | 2weeks |
Payment Terms: | T/T |
Supply Ability: | 100000PCS/day |
Detail Information |
|||
Maximum Rated Input DC Power: | 600W | Maximum Input Current: | 15A DC |
---|---|---|---|
Maximum Input Voltage: | 55V | MPPT Operating Range: | 8~55V |
Maximum Output Current: | 15ADC | Overcurrent Protection: | 18ADC |
Maximum Output Voltage: | 42VDC | Maximum Efficiency: | 99.5% |
DC Short-Circuit Protection: | Yes | DC Input Connector: | MC4 |
Weight(includingcables: | 510g | OD Of Wire: | 5.7/6.1/6.4mm |
Dimensions(W*L*H): | 105*100*21mm | Input Wire Length: | 0.5m |
Output Wire Length: | 1m | Operating Temperature Range: | -40°C~85°C |
EMC: | IEC61000-6-2, IEC61000-6-3 | Waterproof Class: | IP68 |
Fire Rating Degree: | 5VA | ||
High Light: | Mppt Photovoltaic Power solar panel fuse,600W solar panel fuse,55V solar PV fuse |
Product Description

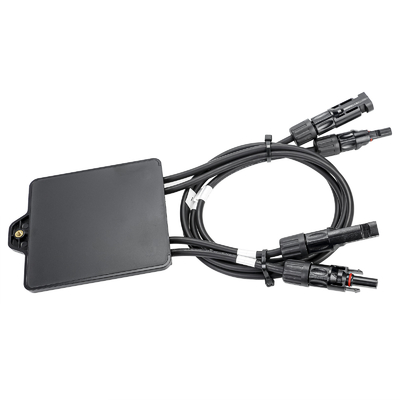

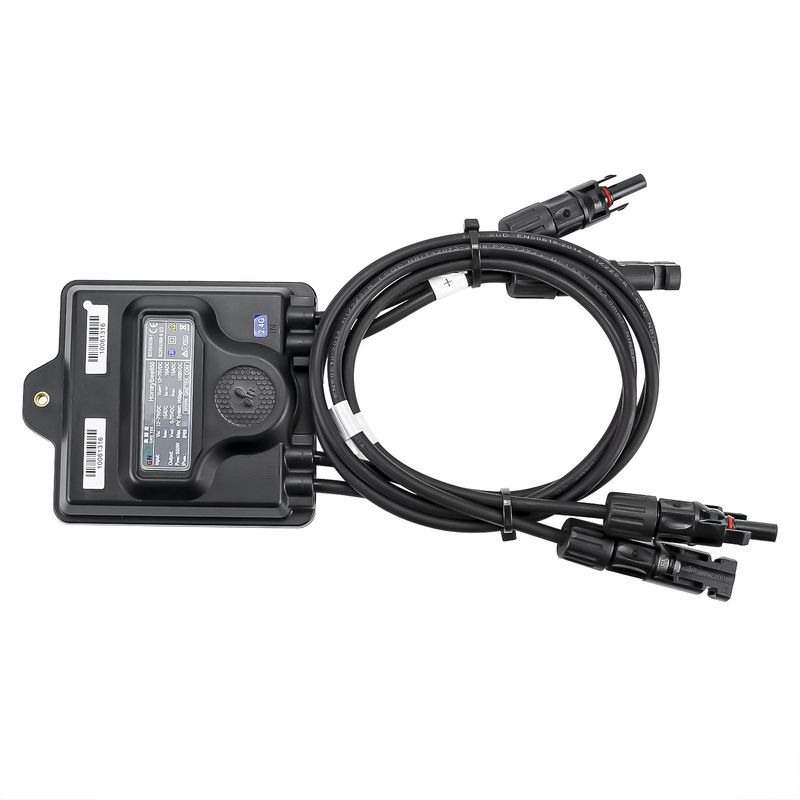

Mppt Solar PV Optimizer 600w Solar Optimizer
Product features:
1. It can improve the power generation efficiency of solar panels by 20-30%.
2.25 years of life, perfectly matched solar module.
3. Safe solar system, remote shutdown, eliminate high voltage danger.
4. Flexible system design to maximize the utilization rate of air queries.
Want to Know more details about this product
