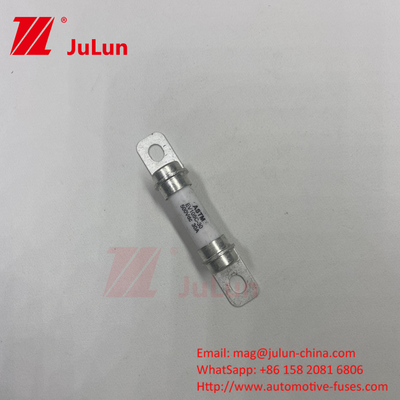

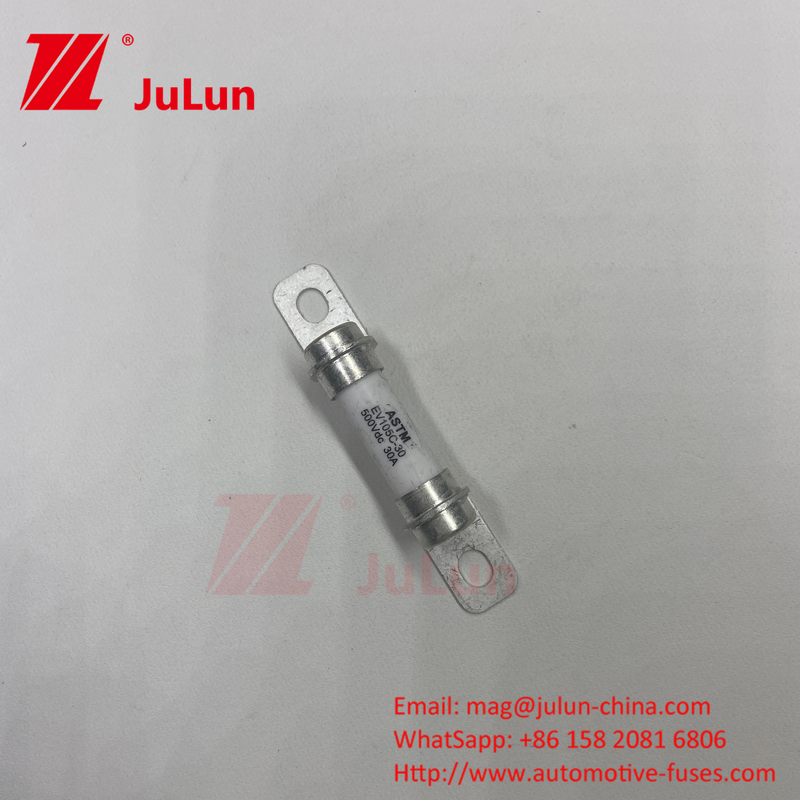

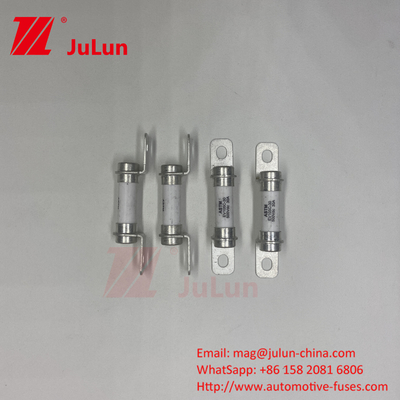

500VDC 20A 30A 40A 50A Pure Electric Vehicle Hybrid Car Fuse
Product Details:
| Place of Origin: | China |
| Brand Name: | ASTM FUSE |
| Certification: | CE UL CCC |
| Model Number: | EV105C Dc fuses for pure electric vehicles, hybrid vehicles battery energy storage systems |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 4~6USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
Detail Information |
|||
| Use For To: | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. | Breaking Capacity: | 20KA |
|---|---|---|---|
| Specifically Designed For: | Automobile Application. With Excellent Resistant To Vibration, Mechanical Shock, Chemical Load And High Temperature, | Installation Mode: | M6 Bolt Type |
| Rated Current: | 5A 10A 15A 20A 30A 40A 50A | EV Fuse Standard: | UL248-20 ISO8820-8&GB/T31465.6 |
| Packing Method: | Boxed | Outer Pipe Material: | Ceramic Copper, Silver, Gold, Quartz Sand |
| Highlight: | 30A Electric Vehicle Hybrid Car Fuse,500VDC Electric Vehicle Hybrid Car Fuse,20A Electric Vehicle Hybrid Car Fuse |
||
Product Description
Product Description:
Our Electric Vehicle Fuse is the perfect solution for home EV charger for electric car, ensuring safety and reliability during DC electric car charging. With a temperature control range of -45-125°C, you can be confident that your electric vehicle is protected in extreme weather conditions.
Our Electric Vehicle Fuse has a breaking capacity of 20KA, ensuring that it can handle high levels of electrical current. It is designed to meet the needs of electric vehicle owners who require a safe and reliable charging solution for their home EV charger for electric car.
Features:
- Product Name: Electric Vehicle Fuse
- Installation mode: M6 Bolt Type
- Outer pipe material: Ceramic Copper, Silver, Gold, Quartz Sand
- EV fuse standard: UL248-20 ISO8820-8&GB/T31465.6
- Rated current: 5A 10A 15A 20A 30A 40A 50A
- Construction: Bolted M6
- Compatible with EV DC fast charger
- Compatible with 7KW Charger
- AC Ev Charger Adapter Compatible
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Installation mode | M6 Bolt Type |
| Rated Voltage | DC500V |
| Breaking Capacity | 20KA |
| Outer pipe material | Ceramic Copper, Silver, Gold, Quartz Sand |
| Rated current | 5A 10A 15A 20A 30A 40A 50A |
| Scope of application | Automobile Application, EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. |
| Construction | Bolted M6 |
| Temperature control range | -45-125°C |
| Packing method | Boxed |
Applications:
ASTM FUSE EV105C DC fuses for pure electric vehicles, hybrid vehicles battery energy storage systems are designed to provide overcurrent protection for high voltage DC systems. This product is manufactured in China and has passed CE, UL, and CCC certification, ensuring that it meets international safety standards. In order to purchase this product, a minimum order quantity of 100 units is required at a price ranging from 1.5~2.8USD per unit.
The ASTM FUSE EV105C DC fuses are suitable for use in a variety of scenarios. One such scenario is in automotive battery chargers. These fuses are ideal for providing overcurrent protection in high voltage DC systems, ensuring safe and efficient charging. Another scenario is in CCS EV chargers. These fuses are designed to be bolted with M6 construction and have a breaking capacity of 20KA. This makes them suitable for use in high voltage DC charging systems, such as those found in CCS EV chargers.
The ASTM FUSE EV105C DC fuses are also suitable for use in DC electric car charging. These fuses are designed to protect the battery and other components of the electric car from overcurrent damage, ensuring safe and efficient charging. The outer pipe material of these fuses is made of ceramic copper, silver, gold, or quartz sand, which provides excellent heat dissipation properties, ensuring that the fuses operate at peak efficiency even in high temperature environments.
These fuses comply with the EV fuse standard UL248-20 ISO8820-8&GB/T31465.6, ensuring that they meet the strict safety requirements needed for use in electric vehicles. The rated voltage of these fuses is DC500V, making them suitable for use in high voltage DC systems. The fuses are packaged in a carton and have a delivery time of 1-2 weeks after payment is made. Payment terms are T-T and the supply ability is 1000K/PCS, ensuring that customers can purchase the quantity they need in a timely manner.
Customization:
Customize your ASTM FUSE Electric Vehicle Fuse with our product customization services.
Brand Name: ASTM FUSE
Model Number: EV105C Dc fuses for pure electric vehicles, hybrid vehicles battery energy storage systems
Place of Origin: China
Certification: CE UL CCC
Minimum Order Quantity: 100
Price: 1.5~2.8USD
Packaging Details: Carton
Delivery Time: 1-2weeks
Payment Terms: T-T
Supply Ability: 1000K/PCS
Breaking Capacity: 20KA
Rated current: 5A 10A 15A 20A 30A 40A 50A
EV fuse standard: UL248-20 ISO8820-8&GB/T31465.6
Rated Voltage: DC500V
Construction: Bolted M6
Customization options include:
- 7KW Charger
- CCS EV Charger
- Automotive battery charger
Support and Services:
The Electric Vehicle Fuse product offers technical support and services to ensure its proper installation and operation. Technical support includes assistance with product selection, installation, and troubleshooting. Our team of experts can also provide guidance on regulatory compliance and industry standards. Additionally, we offer repair and maintenance services to keep your Electric Vehicle Fuse running smoothly. Contact us for more information on our technical support and services.
Packing and Shipping:
Product Packaging:
- Electric Vehicle Fuse
- Protective packaging to prevent damage during shipping
- Product manual and warranty information included
Shipping:
- Ships within 1-2 business days
- Free shipping within the United States
- International shipping available with additional fees
FAQ:
Q1: What is the brand name of the Electric Vehicle Fuse product?
A1: The brand name of the Electric Vehicle Fuse product is ASTM FUSE.
Q2: What is the model number of the Electric Vehicle Fuse product?
A2: The model number of the Electric Vehicle Fuse product is EV105C Dc fuses for pure electric vehicles, hybrid vehicles battery energy storage systems.
Q3: What is the minimum order quantity for the Electric Vehicle Fuse product?
A3: The minimum order quantity for the Electric Vehicle Fuse product is 100.
Q4: What certifications does the Electric Vehicle Fuse product have?
A4: The Electric Vehicle Fuse product has CE, UL, and CCC certifications.
Q5: What is the price range of the Electric Vehicle Fuse product?
A5: The price range of the Electric Vehicle Fuse product is 1.5~2.8USD.
