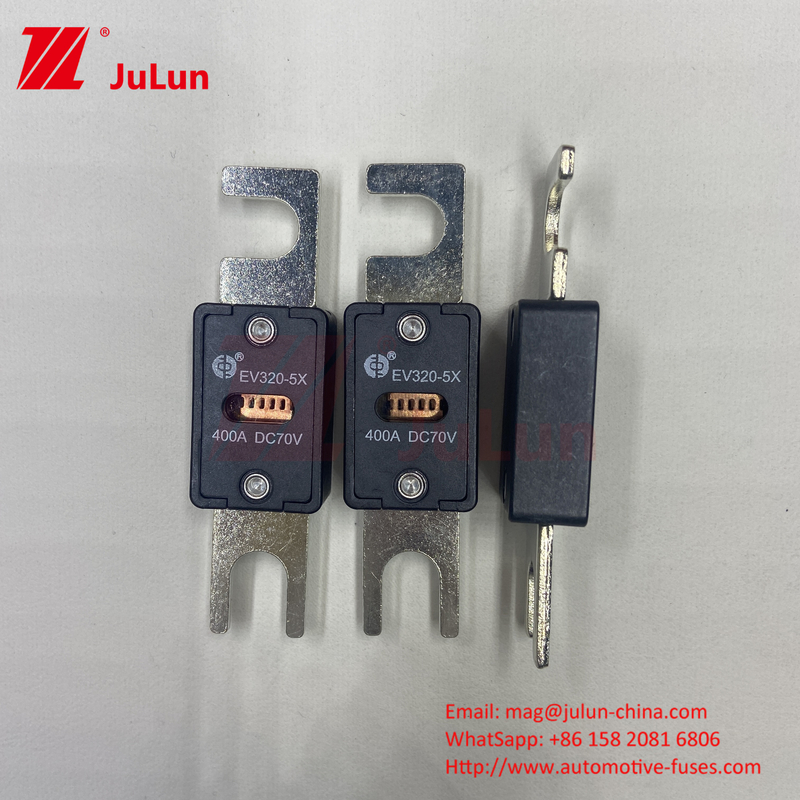

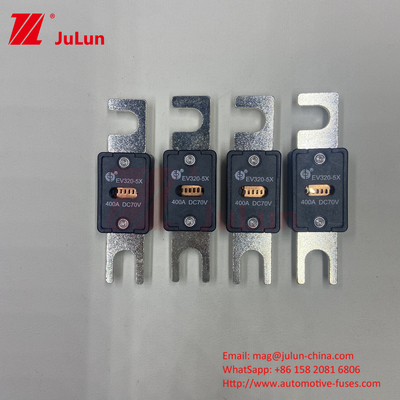

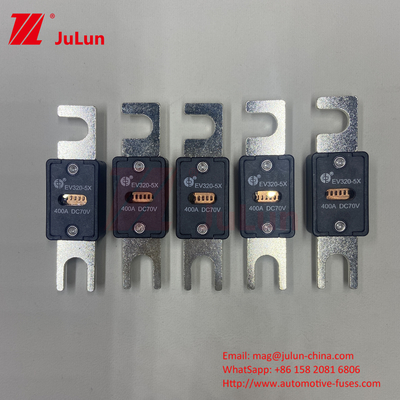

70VDC Voltage Ceramic Bolt Type Electric Vehicle Fuse EV320-5X-250A M6 M8
Product Details:
| Place of Origin: | China |
| Brand Name: | SINOFUSE |
| Certification: | CE UL CCC |
| Model Number: | EV320-5X 5C 80A 100A 125A 150A 175A 200A 225A 250A 300A 350A 400A 450A 500A 70VDC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 5~6.5USD |
| Packaging Details: | Carton |
| Delivery Time: | 1-2weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
Detail Information |
|||
| Scope Of Application: | Automobile Application | Rated Current: | 80A 100A 125A 150A 175A 200A 225A 250A 300A 350A 400A 500A |
|---|---|---|---|
| Outer Pipe Material: | Ceramic Copper, Silver, Gold, Quartz Sand | Rated Voltage: | 70VDC |
| Packing Method: | Boxed | Installation Mode: | M6 Bolt Type |
| Breaking Capacity: | DC 6kA (time Constant 2±0.5ms) | EV Fuse Standard: | ISO8820-5 And GB/T31465.5-2015 |
| Highlight: | M8 Electric Vehicle Fuse,M6 Electric Vehicle Fuse,70VDC Electric Vehicle Fuse |
||
Product Description
Product Description:
Our Electric Vehicle Fuse comes in a boxed packing method, making it easy to store and transport. This fuse is a must-have for anyone using a 7KW Charger, Automotive battery charger, or portable EV charger. It provides protection for your EV's electrical system, ensuring optimal performance and preventing damage to your vehicle.
Investing in our Electric Vehicle Fuse means investing in the longevity of your EV. With its high breaking capacity and adherence to industry standards, you can trust that your EV is protected from potential electrical damage.
Features:
- Product Name: Electric Vehicle Fuse
- Color: Black
- Suitable for: EV Application. Functions as both overload and short-circuit protection.
- Sales Territory: Europe, America, East Asia, Africa etc.
- Scope of Application: Automobile Application
- Outer Pipe Material: Ceramic Copper, Silver, Gold, Quartz Sand
- AC Ev Charger Adapter Compatible
- Automotive Battery Charger
- 7KW Charger
Technical Parameters:
| Technical Parameters | Values |
|---|---|
| Designed for | Automobile Application |
| Resistant to | Vibration, Mechanical Shock, Chemical Load and High Temperature |
| Breaking Capacity | DC 6kA (time Constant 2±0.5ms) |
| Rated Current | 80A, 100A, 125A, 150A, 175A, 200A, 225A, 250A, 300A, 350A, 400A, 500A |
| EV Fuse Standard | ISO8820-5 and GB/T31465.5-2015 |
| Scope of Application | Automobile Application |
| Sales Territory | Europe, America, East Asia, Africa etc |
| Outer Pipe Material | Ceramic Copper, Silver, Gold, Quartz Sand |
| Temperature Control Range | -40°C to 70°C |
| Packing Method | Boxed |
| Installation Mode | M6 Bolt Type |
Applications:
The SINOFUSE EV320-5X series electric vehicle fuses are specially designed to provide both overload and short-circuit protection for EV applications. These fuses are compliant with ISO8820-5 and GB/T31465.5-2015 standards, ensuring their reliability. The installation mode for these fuses is M6 Bolt Type, and they have a temperature control range of -40 °C～70°C.
The EV320-5X series fuses are suitable for various EV application scenarios, including Electric Vehicle Fast Charging stations, portable EV chargers, and DC Electric Car Charging. They are available in various amperage ratings, including 80A, 100A, 125A, 150A, 175A, 200A, 225A, 250A, 300A, 350A, 400A, 450A, and 500A. The outer pipe material for these fuses is available in ceramic copper, silver, gold, and quartz sand, making them highly durable and long-lasting.
The EV320-5X series fuses are certified with CE, UL, and CCC, ensuring their quality and safety. The minimum order quantity for these fuses is 100, and they are priced between 1.5~2.8USD. They are packaged in cartons and have a delivery time of 1-2 weeks. Payment terms are T-T, and the supply ability is 1000K/PCS.
Customization:
This product is compatible with 22KW charger, EV DC fast charger, and CCS EV charger.
Support and Services:
The Electric Vehicle Fuse product technical support and services include:
- Assistance with product selection and application
- Technical documentation and datasheets
- Troubleshooting and diagnosis of product issues
- Repair and replacement services
- Warranty support and claims
- Product training and education
