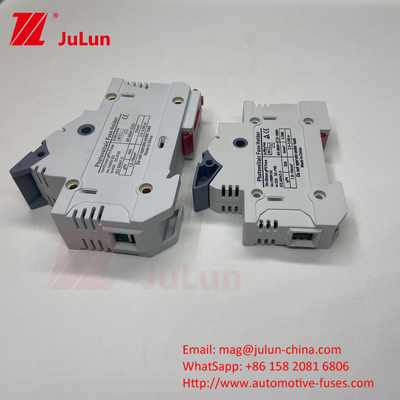

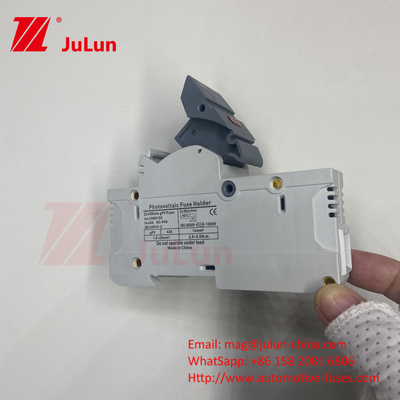

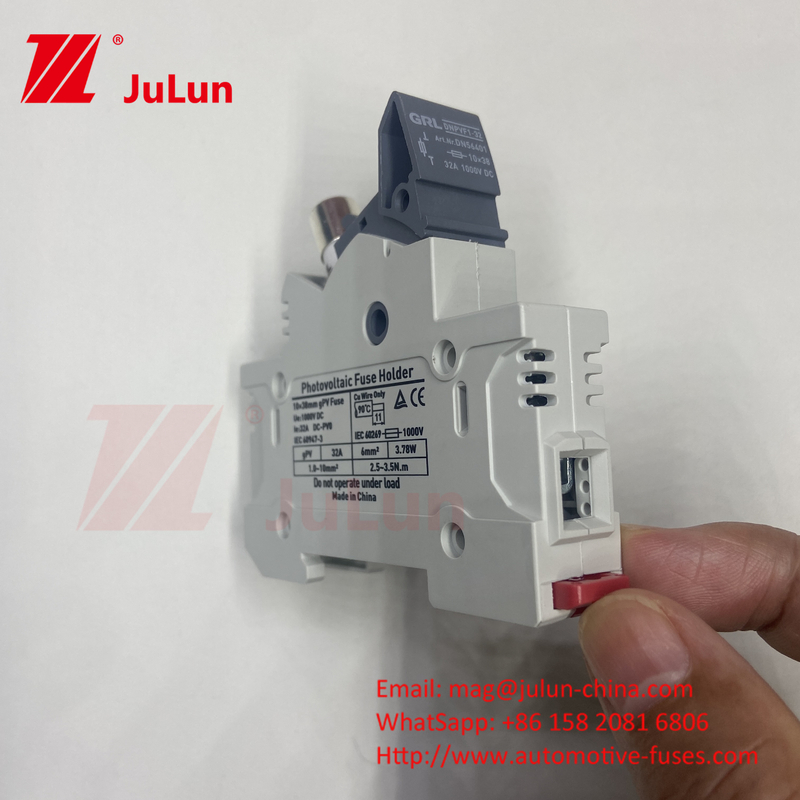

TUV DC Solar Fuse Fusible Holder Box Base DNPVF1-32 Solar System Protection 10x38MM 1000V GPV Fast Blow Ceramic DIN Rail

Product Description:

With a breaking capacity of 30kA, this fuse can handle high levels of current and ensure reliable performance. It is designed to withstand a wide range of temperatures, from -50 to 105°C, making it suitable for use in different environments and applications.

The Solar PV Fuse is specifically designed for photovoltaic bus boxes and photovoltaic module protection. It is an important safety measure that helps prevent damage to the system and ensures maximum efficiency.

This cylindrical 10*38mm gPV 1000VDC 32A fuse is TUV CE certified, ensuring that it meets international safety standards. It is a reliable and durable solution that offers peace of mind for system operators and installers.

In addition to the standard Solar PV Fuse, there is also a cylindrical 14*51mm 25A 1500VDC solar system fuse and fuse holder available. This provides an easy and secure way to connect and protect the photovoltaic system, ensuring reliable performance and safety.

The Solar PV Fuse is available in different weight options, ranging from 20g to 80g, making it easy to find the right fit for your system. It is a cost-effective and efficient solution that is essential for any photovoltaic system.

Features:

• Product Name: Solar PV Fuse
• Standart: IEC60269.6, IEC60947-3
• Weight: 20g, 30g, 40g, 50g, 80g
• Breaking capacity: 30kA
• Rated Current: 10A, 12A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, 63A
• Fuse Size: 10x38mm, 14x51mm, 14x65mm, 22x58mm, 10x85mm
• High voltage solar fuse
• 1000VDC 15A
• Solar panel thermal fuse

Technical Parameters:

Applications:

Customization:

Brand Name: SINOPV RLPV JULUN GRT

Model Number: 2A 3A 5A 6A 8A 10A 12A 15A 20A 25A 30A 500VDC 1000VDC 1500VDC10*38mm 14*51mm 22*58mm 10*85mm 14*65mm 32A 40A 63A

Place of Origin: China

Weight: 20g 30g 40g 50g 80g

Fuse Shape: Cylindrical Fuse

Be Suitable for: Photovoltaic Bus Box, Photovoltaic Module Protection

Working Temperature: -50~105°C

Installation Mode: Din Guide Fuse Holder

Additional Features: TUV CE certified, Cylindrical 14*51mm 25A 1500VDC solar system fuse and fuse holder

Support and Services:

The Solar PV Fuse product offers technical support and services to ensure the proper installation, maintenance, and operation of the product. Our team of experts is available to answer any questions and troubleshoot any issues that may arise. Additionally, we offer training and educational resources to help customers understand the product and maximize its performance. Our services also include product repair and replacement as needed. Contact us for any technical support or service needs related to the Solar PV Fuse.

Packing and Shipping:

Product Packaging:

• Quantity: 1 Solar PV Fuse
• Dimensions: 2.5 inches x 1 inch x 1 inch
• Weight: 0.1 lbs
• Material: Plastic

Shipping:

• Delivery Method: Standard Shipping
• Delivery Time: 3-5 business days
• Shipping Cost: $5.99

FAQ:

Q1: What are the brands of Solar PV Fuses that you offer?

A1: We offer SINOPV, RLPV, JULUN, and GRT brands for Solar PV Fuses.

Q2: What is the maximum voltage rating of your Solar PV Fuses?

A2: We offer Solar PV Fuses with maximum voltage ratings of 500VDC, 1000VDC, and 1500VDC.

Q3: Where are your Solar PV Fuses manufactured?

A3: Our Solar PV Fuses are made in China.

Q4: What are the different models of Solar PV Fuses that you offer?

A4: We offer Solar PV Fuses in the following models: 2A, 3A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, 30A, 10*38mm, 14*51mm, 22*58mm, 10*85mm, 14*65mm, 32A, 40A, and 63A.

Q5: What is the application of Solar PV Fuses?

A5: Solar PV Fuses are used in solar power systems to protect the system from overcurrent and short-circuit faults.
