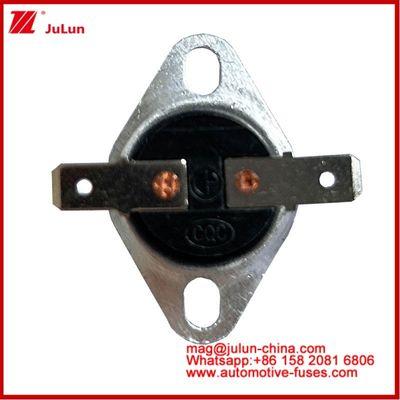

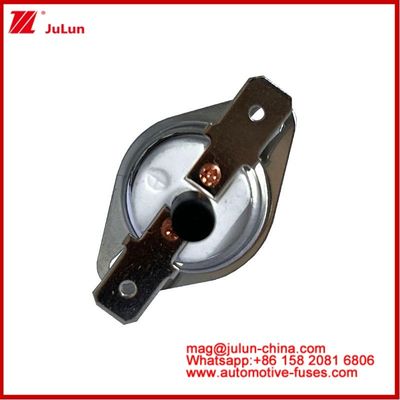

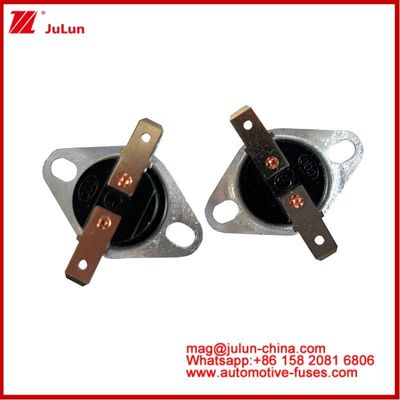

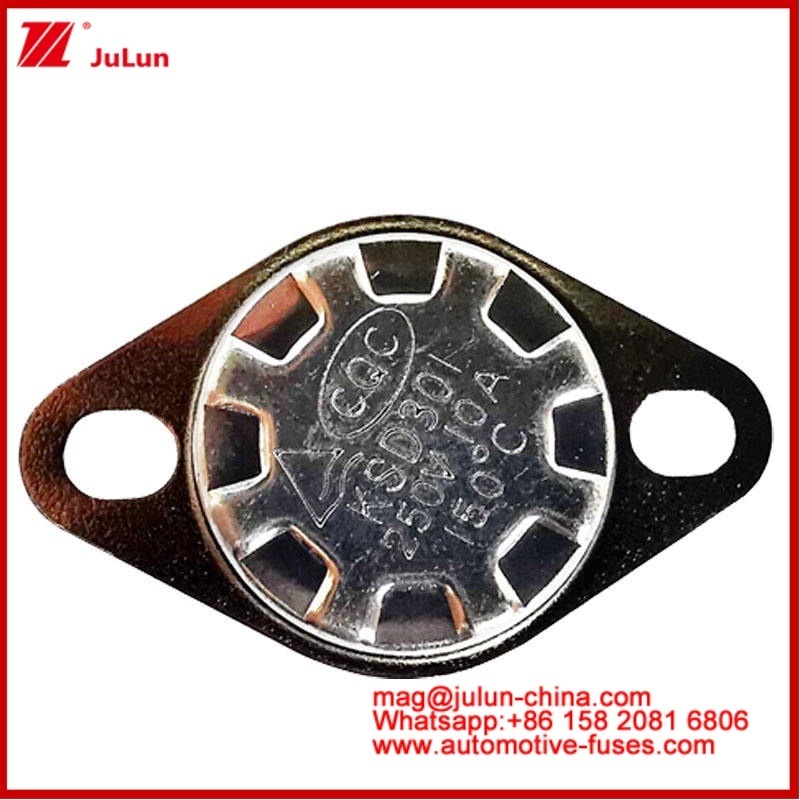

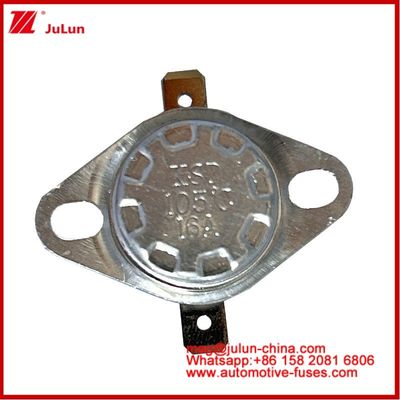

KSD301 10A Ceramic Water Heater Switch Bimetallic Thermostat Manual For Floor Heating
Product Details:
| Place of Origin: | China |
| Brand Name: | JULUN |
| Certification: | CE UL CCC |
| Model Number: | KSD Bimetal Thermostat |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 0.7~1.5 |
| Packaging Details: | Carton |
| Delivery Time: | 1~2weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/times |
|
Detail Information |
|||
| Temperature Sensor Face: | Aluminum Cap Or Copper Head. | Terminal Type: | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
|---|---|---|---|
| Circuit Resistance: | ≤50mΩ (Initial Value) | Contact Type: | Normally Closed Or Normally Open |
| ActionTemperature: | 0~250℃ | Recovery And Action Temperature Difference: | 0 To 25 Degrees, Or According To Client's Request. |
| Voltage & Current: | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A | Insulation Resistanc: | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) |
| Highlight: | KSD301 ceramic water heater switch,bimetallic thermostat for floor heating,10A manual water heater thermostat |
||
Product Description
KSD301 10A Ceramic Water Heater Switch Bimetallic Thermostat Manual For Floor Heating
Want to Know more details about this product
