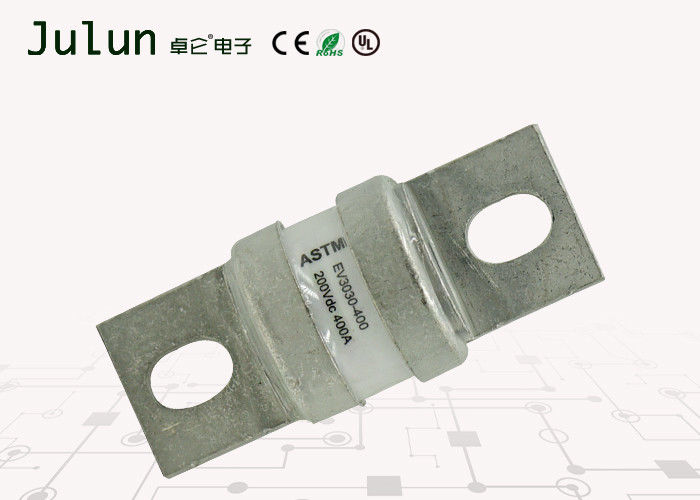

Ceramic Automotive Fuses 200V 400A Electric Vehicle DC Fuses Full Range Automotive Fuses

China Ceramic Automotive Fuses 200V 400A Electric Vehicle DC Fuses Full Range Automotive Fuses supplier

Large Image :  Ceramic Automotive Fuses 200V 400A Electric Vehicle DC Fuses Full Range Automotive Fuses

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: EV3030

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Material: Ceramics Rated Current: 100~400A
Rated Breaking Capacity: 200Vdc/20kA Rated Voltage: 200VDC
Dimensions: 25x71mm

Ceramic Automotive Fuses 200V 400A Electric Vehicle DC Fuses Full Range Automotive Fuses



EV3030_Series_Rev.pdf



FEATURES



DC fuse for EV/HEV

Stud-mount, optional for other installation

200Vdc ideal for EV or HEV application
Excellent DC performance

Special designed fuse base for vehicle situation



Electrical Characteristics
% of Ampere Rating (A) Operating
Min Max
200% 1 300
300% 0.2 30
500% 0.1 10



ELECTRICAL SPECIFICATIONS



Type Ordering P/N Electrical Characteristics
Rated Current (A) Rated Voltage (VDC) Interrupting Rating
Single EV3030-100 100 200Vdc 200Vdc/20kA
EV3030-150 150
EV3030-200 200
EV3030-250 250
EV3030-300 300
EV3030-350 350
EV3030-400 400



Temperature Rise: <=45K with 50% of rated current



DIMENSIONS (mm)



Ceramic Automotive Fuses 200V 400A Electric Vehicle DC Fuses Full Range Automotive Fuses
