Popular Automotive Blade Fuses 30A With Sn Plated Zinc Alloy Terminal Housing

China Popular Automotive Blade Fuses 30A With Sn Plated Zinc Alloy Terminal Housing supplier
Popular Automotive Blade Fuses 30A With Sn Plated Zinc Alloy Terminal Housing supplier Popular Automotive Blade Fuses 30A With Sn Plated Zinc Alloy Terminal Housing supplier

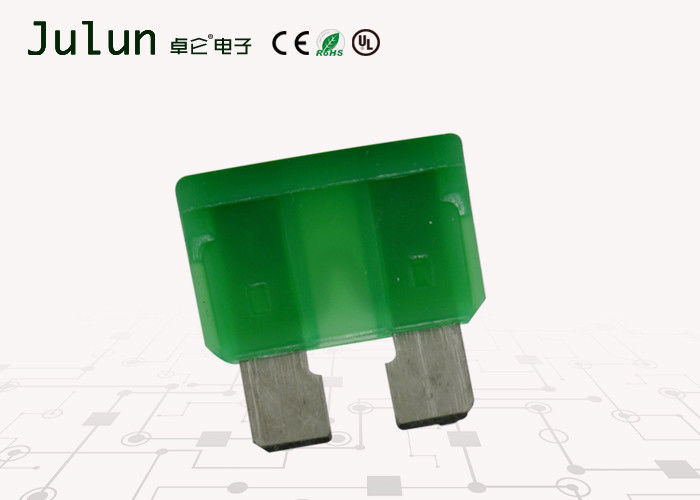

Large Image :  Popular Automotive Blade Fuses 30A With Sn Plated Zinc Alloy Terminal Housing

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: 0287

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Voltage Rating: 32 VDC Interrupting Ratings: 1000A @ 32 VDC
Component Level Temperature Range: -40˚C To +105˚C System Level Temperature Range: -40˚C To +85˚C
TerminaHousing Materialls: Sn Plated Zinc Alloy Housing Material: PA66
Complies With: SAE J1284,ISO 8820-3 UL Listed: File AU1410
CSA Certified: File No. 29862

Popular Automotive Mini Blade Type Car Fuse 30A Electric Vehicle Fuse



ATOF_Datasheet.pdf



Specification



Tin Plated Silver Plated
Voltage Rating 32 VDC 32 VDC
Interrupting Rating 1000A @ 32 VDC 1000A @ 32 VDC
Component Level Temperature Range -40˚C to +105˚C -40˚C to +125˚C
System Level Temperature Range -40˚C to +85˚C -40˚C to +105˚C
Terminals Sn plated zinc alloy Ag plated zinc alloy
Housing Material PA66 PA66
Complies with SAE J1284,ISO 8820-3 SAE J1284,ISO 8820-3
UL Listed File AU1410 File AU1410
CSA Certified File No. 29862 File No. 29862



**105°C and 85°C are typical system level temperature requirements.



Ratings



Part Number Current Rating
(A)
Typ. Voltage Drop
(mV)
Cold Resistance
(mΩ)
I2t
(A2s)
0287001._ 1 176 123 0.4
0287002._ 2 141 53.5 1.4
0287003._ 3 137 31.1 7.4
0287004._ 4 136 22.8 14
0287005._ 5 128 17.85 26
028707.5_ 7.5 116 10.91 60
0287010._ 10 109 7.70 115
0287015._ 15 102 4.80 340
0287020._ 20 98 3.38 520
0287025._ 25 92 2.52 1080
0287030._ 30 84 1.97 1510
0287035._ 35 87 1.61 2280
0287040._ 40 96 1.44 3310



Time-Current Characteristics



% of Rating Current
Rating
Opening Time
Min / Max (s)
100 35A & 40A 360,000 s / –
110 1A-30A 360,000 s / –
135 1A & 2A
3A-40A
350 ms / 600 s
0.750 s / 600 s
160 1A-40A 250 ms / 50 s
200 1A & 2A
3A-40A
100 ms / 5.0 s
0.150 s / 5.0 s
350 1A & 2A
3A-40A
20 ms / 500 ms
80 ms / 500 ms
600 1A-30A
35A & 40A
– / 100 ms
– / 150 ms



Dimensions
