Bolt - On Automotive Blade Fuses , 100A ~ 500A Small Blade Fuses For Car

China Bolt - On Automotive Blade Fuses , 100A ~ 500A Small Blade Fuses For Car supplier

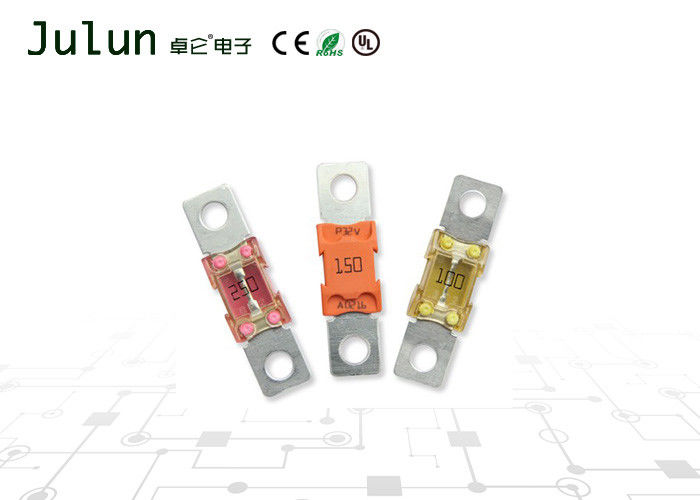

Large Image :  Bolt - On Automotive Blade Fuses , 100A ~ 500A Small Blade Fuses For Car

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: BF2

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Operating Temperature: -40 To 125 Degrees C Housing Material: PET-GF30
Clear Housing Material: PES Mounting Torque: 12.0 Nm +/- 1Nm

Bolt - On Automotive Blade Fuses , 100A ~ 500A Small Blade Fuses For Car



BF2_32V_Datasheet.pdf



Specifications



Housing Material: PET-GF30
Clear Housing Material: PES
Terminal: Copper alloy, gal. Sn
2 x M8 bolts, Distance 51 mm
Mounting Torque: 12.0 Nm +/- 1Nm
Breaking Capacity: 100 A - 300 A: 2.000 A, 32V, DC
400 A - 500 A: 1.500 A, 32V, DC
Complies with: ISO 8820-5, UL 248 Special Purpose Fuses



Time-Current Characteristics



% of Rating Opening Time Min / Max (s)
100A - 250A 300A - 500A
75 – / – 4 h / –
100 4 h / – – / –
135 120 s / 1,800 s – / –
200 1 s / 15 s 1 s / 15 s
350 0.300 s / 5 s 0.500 s / 5 s
600 0.100 s / 1 s 0.100 s / 1 s



Ratings



Part Number

Current Rating

(A)

Typ. Voltage Drop

(mV)

Cold Resistance

(mΩ)

I2t

(A2 s)

M8 Holes M6 Holes
153.5395.610 153.7011.610 100 110 0.70 46,800
153.5395.612 153.7011.612 125 110 0.52 118,100
153.5395.615 153.7011.615 150 110 0.42 113,400
153.5395.617 153.7011.617 175 110 0.36 154,400
153.5395.620 153.7011.620 200 110 0.34 288,000
153.5395.622 153.7011.622 225 110 0.29 236,000
153.5395.625 153.7011.625 250 110 0.25 292,500
153.5395.630 153.7011.630 300 110 0.21 486,000
153.5395.640 153.7011.640 400 110 0.13 964,000
153.5395.650 153.7011.650 500 110 0.12 1,449,000



Dimensions



Bolt - On Automotive Blade Fuses , 100A ~ 500A Small Blade Fuses For Car









FAQ


Q: What can i do if i got a broken product form A-TEAM FUSE INC?
A: First of all please tell us as soon as possible after we will send a new one to you immediately

but please send the broken product to us .you don't have to worry about the carriage charge we will

pay for that.
Q;Are we a importer or manufacturer?
A;We are a manufacturer
Q:Why you have to choose us
A:High quality assurance. The most competitive price and fast shipping


Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most

competitive price per as your requirements. And we have many types for you to choose.


P.S.:If you can't find any products to meet your requirements. welcome to send us the details

drawings so that we can provide us our professional & best service to you.
