Photovoltaic Dc High Voltage Fuse 1500 Volt 10x85mm 30 KA Rated Breaking Capacity

China Photovoltaic Dc High Voltage Fuse 1500 Volt 10x85mm 30 KA Rated Breaking Capacity supplier

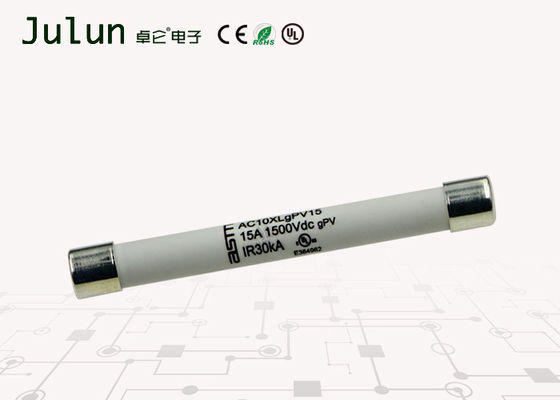

Large Image :  Photovoltaic Dc High Voltage Fuse 1500 Volt 10x85mm 30 KA Rated Breaking Capacity

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: AC10XLGPV

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Material: Ceramics Rated Current: 2~15A
Rated Breaking Capacity: 30 KA Time Constant: ≤1ms
Dimension: 10x85mm Rated Voltage: 1500 VDC

Photovoltaic Dc Fuse 10*85 Mm 1500 Volts Fuse High Voltage Protection



ac10xlgpv series.pdf



FEATURES



 1500 VDC, 10x85mm PV fuse link
 Rated Current: 2~15A
 Rated Breaking Capacity: 30 kA
 Time Constant: ≤1ms
 Special design with silver plated caps for high-power
    PV applications



ELECTRICAL SPECIFICATIONS



Part No./Rating Rated Voltage DC Rated Current Breaking Capacity Energy Integrals I2t (A2S Power Loss (W)
Pre-Arcing at 1500V/30kA Total at 1500V/30kA
0.7In 0.8In 1.0In
AC10XLgPV2 1500V 2A 30kA 3.5 10 1.1 1.45 2.6
AC10XLgPV4 4A 15 50 1.2 1.55 2.8
AC10XLgPV5 5A 22 75 1.4 1.8 3.2
AC10XLgPV10 10A 300 1100 1.7 2.3 4.2
AC10XLgPV12 12A 20 60 1.8 2.4 4.2
AC10XLgPV15 15A 35 95 2 2.8 5






DIMENSIONS (mm)



Photovoltaic Dc High Voltage Fuse 1500 Volt 10x85mm 30 KA Rated Breaking Capacity







FAQ


Q: Are you trading company or manufacturer ?
A: We are a fuse and fuse holder factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.


Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.


P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
