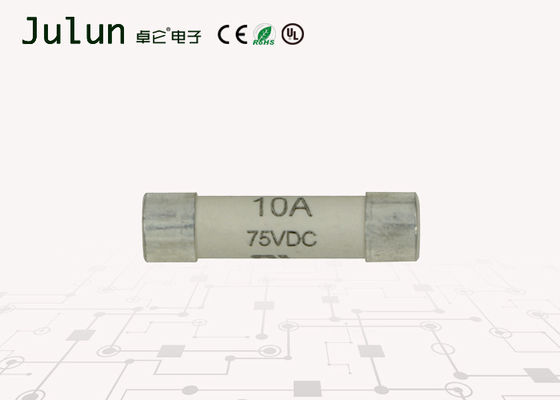

• 6x25mm 10a Ceramic Fuse 75 Volt High Voltage Dc Fuse with Silver Plated Copper Cap
6x25mm 10a Ceramic Fuse 75 Volt High Voltage Dc Fuse with Silver Plated Copper Cap

6x25mm 10a Ceramic Fuse 75 Volt High Voltage Dc Fuse with Silver Plated Copper Cap

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: 62720

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T,
Supply Ability: 10000/Piece/Weekly
Get Best Price Contact Now

Detail Information

Rated Voltage: 75VDC Rated Current: 10A
Dimension: 6*25mm Material: Ceramic
Purpose: HVDC / Digital Instrument
High Light:

solar pv fuses

,

high voltage hrc fuse

Product Description

6x25mm 10a Ceramic Fuse 75 Volt High Voltage Dc Fuse with Silver Plated Copper Cap

75V, 6x25mm Ceramic Tube Fuses



62720 rev.pdf



Description



 Time Delay
 6x25mm physical size
 Ceramic tube, Silver plated copper cap construction
 Designed to UL248-1
 Lead Free and Halogen free material



Electrical Characteristics
Rated Current 1.0In 1.5In 2.0In
5A ~ 50A 4 hours Min. 1 hour. Max. 120 sec Max.



Specifications



Part No. Rated
Voltage
Rated Current Breaking Capacity Typ. Cold Resistance
(mΩ)
Typ. Voltage drop
(mV)
Typical Pre-Arcing I2t
(A2Sec)
DC 75VDC
62 720.5 75V 5A 2500A 32 200 50
62 720.6 6A 20.1 165 48
62 720.10 10A 12 160 160
62 720.15 15A 6.5 140 460
62 720.20 20A 3.7 110 1050
62 720.25 25A 2.31 100 2200
62 720.30 30A 2.1 90 4400
62 720.40 40A 1.3 70 4200
62 720.50 50A 1.07 70 5300



* Typical Pre-arching I2t are measured at 10In Current
** 25A and above rating pass Lightning Test 10kA (Differential Mode)
*** For the ratings other than above, please contact your sales representative.



Dimension



6x25mm 10a Ceramic Fuse 75 Volt High Voltage Dc Fuse with Silver Plated Copper Cap 0
