1000 Volts DC Ceramic Cylindrical Fuse Types 6*30mm Electronic Quick Fast Blow Acting

China 1000 Volts DC Ceramic Cylindrical Fuse Types 6*30mm Electronic Quick Fast Blow Acting supplier

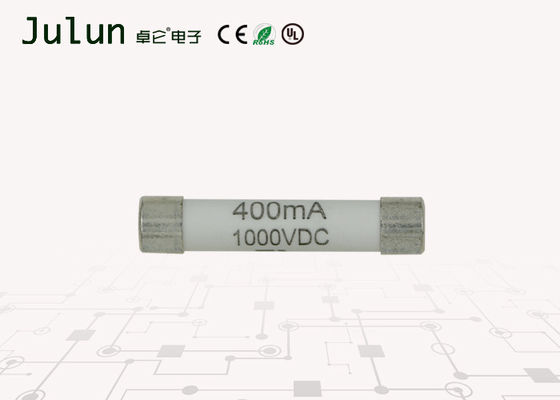

Large Image :  1000 Volts DC Ceramic Cylindrical Fuse Types 6*30mm Electronic Quick Fast Blow Acting

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: HV620

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Rated Voltage: 1000VDC/AC Rated Current: 400MA
Dimension: 6*30MM Material: Ceramic
Purpose: HVDC / Digital Instrument

1000VDC/AC, 6x30mm, Fast Acting Ceramic Tube Fuses


hv620 series_1000vdc.pdf



Description


 Fast Acting, high breaking capacity under 1000VDC/AC
 6x30mm physical size
 Special Engineering Material tube, Silver plated copper cap construction
 Designed to UL 248-1
 Lead Free and Halogen free material


Electrical Characteristics
1.0In 4 hour Min.
2.5In 120 sec Max.


Specifications


Part No. Rated Rated Current Breaking Capacity (A) Typical Cold. Resistance (mOhms) Typical Voltage Drop (mV) Typical Pre-Arcing I2t (A2Sec)
Voltage
DC AC DC AC
HV620.0.2 1000V 1000V 200mA 10KA 10KA 3900 916 0.0031
HV620.0.25 250mA 2755 850 0.009
HV620.0.315 315mA 1875 900 0.050
HV620.0.4 400mA 1845 860 0.059
HV620.0.5 500mA 1160 600 0.081
HV620.0.6 600mA 1030 550 0.178
HV620.0.8 800mA 530 510 0.256
HV620.1 1A 450 560 0.21
HV620.1.25 1.25A 260 550 3
HV620.1.6 1.6A 165 350 3.72
HV620.2 2A 150 400 1.5
HV620.2.5 2.5A 88 300 4.5
HV620.3 3A 60 270 7.54


* DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃
* Typical Pre-arcing I2t are measured at 10In Current
** For current rating other than above, please contact ASTM.


Dimension


1000 Volts DC Ceramic Cylindrical Fuse Types 6*30mm Electronic Quick Fast Blow Acting
