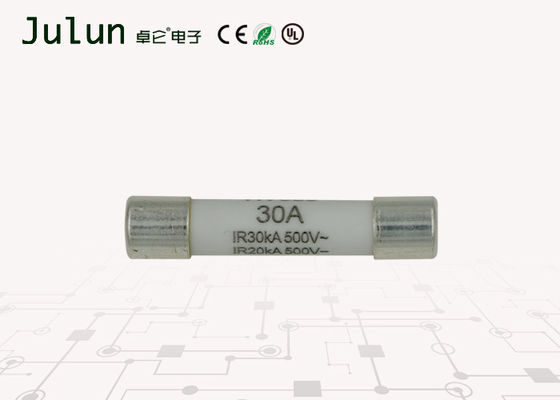

CE Dc High Voltage Fuse 30A 6x30mm For Pv System Solar Power Application

China CE Dc High Voltage Fuse 30A 6x30mm For Pv System Solar Power Application supplier

Large Image :  CE Dc High Voltage Fuse 30A 6x30mm For Pv System Solar Power Application

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: HV660

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Rated Voltage: 500VAC/DC Rated Current: 30A
Dimension: 6*32MM Material: Ceramic
Purpose: HVDC / Digital Instrument

500VAC/DC, 6x30mm Fast Acting Fuses



hv660_revh.pdf



Description



 Fast Acting, high breaking capacity under 500V
 Special Engineering Material tube, Silver plated cap construction
 High breaking capacity for high energy application
 RoHS and Lead Free material



Electrical Characteristics
1.5In 30 minutes, Maximum
2.0In 5 minutes, Maximum
3.0In 10 seconds, Maximum



Specifications



Part No. Rated
Voltage
Rated Current Breaking Capacity
(A)
Typical Cold.
Resistance
(mOhms)
Typical Pre‐Arcing
I2t (A2Sec)
HV660.10 500V AC/DC 10A 30KA@500VAC
20KA@500VDC
17.1 100
HV660.12 12A 12.3 140
HV660.15 15A 8.0 66
HV660.16 16A 8.0 62
HV660.20 20A 5.5 120
HV660.25 25A 4.6 200
HV660.30 30A 3.7 270



* DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃
* Typical Pre‐arcing I2t are measured at 10In Current



Dimension



CE Dc High Voltage Fuse 30A 6x30mm For Pv System Solar Power Application
