Low Breaking Capacity Pptc Resettable Fuse 30V Series 0.1-30A Rated Current

Low Breaking Capacity Pptc Resettable Fuse 30V Series 0.1-30A Rated Current

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: JW

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T,
Supply Ability: 10000/Piece/Weekly
Get Best Price Contact Now

Detail Information

Material: Pollymer Model Number: PPTC
Usage: Resettable Breaking Capacity: Low
Safety Standards: CSA Rated Current: 0.1~30A
Volts: 6~250V
High Light:

self recovery fuse

,

ptc thermal fuse

Product Description

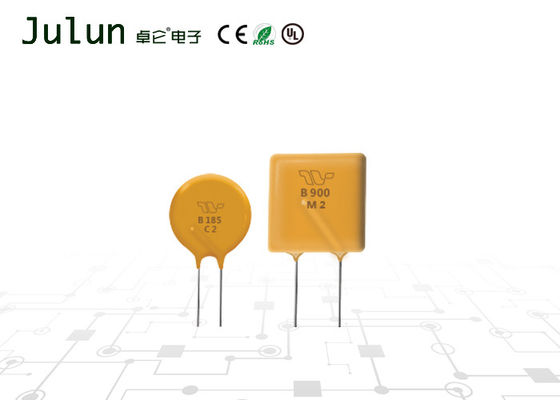

Low Breaking Capacity Pptc Resettable Fuse 30V Series 0.1-30A Rated Current

Self recovery fuse reset PTC electronic element protection 30V series



TRB(30V) Series.pdf



Features


◆ Radial Leaded Devices
◆ Cured, flame retardant epoxy polymer
     insulating material meets UL 94V-0
     requirements
◆ Bulk Package in tape/ reel is available for most models



Applications


for a low voltage power supply which is up to 30V and a load for circuit protection, such as
◆ PC
◆ Toys
◆ Industrial controls



Electrical Characteristics



P/N IH, IT, Vmax, Imax, Time To Trip Pd typ, R min, R max, R1max,
  (A) (A) (V) (A) (A) (Sec.) (W) (Ω) (Ω) (Ω)
TRB090 0.9 1.8 30 40 4.5 5.9 0.6 0.09 0.23 0.3
TRB110 1.1 2.2 30 40 5.5 6.6 0.7 0.06 0.16 0.26
TRB120 1.2 2.4 30 40 6 6.5 0.7 0.05 0.115 0.255
TRB135 1.35 2.7 30 40 6.75 7.3 0.8 0.04 0.095 0.17
TRB160 1.6 3.2 30 40 8 8 0.9 0.03 0.095 0.16
TRB185 1.85 3.7 30 40 9.25 8.7 1 0.03 0.07 0.11
TRB250 2.5 5 30 40 12.5 10.3 1.2 0.02 0.048 0.072
TRB300 3 6 30 40 15 10.8 2 0.015 0.05 0.075
TRB400 4 8 30 40 20 12.7 2.5 0.01 0.03 0.045
TRB500 5 10 30 40 25 14.5 3 0.008 0.025 0.045
TRB600 6 12 30 100 30 16 3.5 0.005 0.02 0.03
TRB700 7 14 30 100 35 17.5 3.8 0.003 0.016 0.025
TRB800 8 16 30 100 40 18.8 4 0.004 0.015 0.023
TRB900 9 18 30 100 40 20 4 0.004 0.01 0.015



Product Dimensions & Marking (Unit: mm)



P/N A B C D E

Physical Characteristic

  Max. Max. Typ. Min. Max. Style Lead Φ mm Material
TRB090 7.4 14 5.1 7.6 3.1 3 0.5 CP
TRB110 10.7 16.7 5.1 7.6 3.1 1 0.5 CP
TRB120 10.7 16.7 5.1 7.6 3.1 1 0.5 CP
TRB135 10.7 16.7 5.1 7.6 3.1 1 0.5 CP
TRB160 11 16.8 5.1 7.6 3.1 1 0.6 CU
TRB185 11.5 17.9 5.1 7.6 3.1 1 0.6 CU
TRB250 13 18.3 5.1 7.6 3.1 2 0.6 CU
TRB300 13 18.3 5.1 7.6 3.1 2 0.81 CU
TRB400 16.4 24.8 5.1 7.6 3.1 2 0.81 CU
TRB500 21.3 26.4 10.2 7.6 3.1 2 0.81 CU
TRB600 20.8 29.8 10.2 7.6 3.1 2 0.81 CU
TRB700 20.8 29.8 10.2 7.6 3.1 2 0.81 CU
TRB800 24.2 32.9 10.2 7.6 3.1 2 0.81 CU
TRB900 24.2 32.9 10.2 7.6 3.1 2 0.81 CU



Low Breaking Capacity Pptc Resettable Fuse 30V Series 0.1-30A Rated Current 0

Low Breaking Capacity Pptc Resettable Fuse 30V Series 0.1-30A Rated Current 1
