130V DC PTC Resettable Fuses Plug In Self Recovery Fuse Component Protection

China 130V DC PTC Resettable Fuses Plug In Self Recovery Fuse Component Protection supplier
130V DC PTC Resettable Fuses Plug In Self Recovery Fuse Component Protection supplier 130V DC PTC Resettable Fuses Plug In Self Recovery Fuse Component Protection supplier

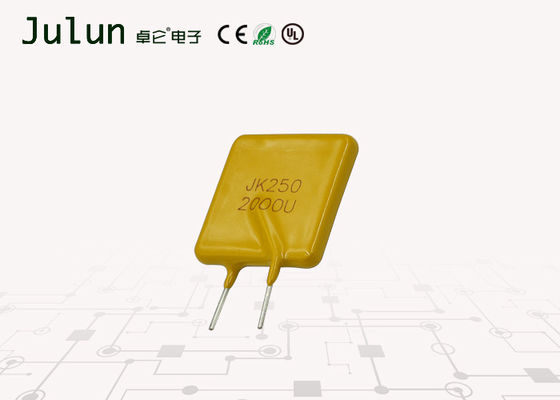

Large Image :  130V DC PTC Resettable Fuses Plug In Self Recovery Fuse Component Protection

Product Details:

Place of Origin: China
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: JK

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Model Number: PPTC Usage: Resettable
Breaking Capacity: Low Safety Standards: CSA
Rated Current: 0.1~30A Volts: 6~250V
Material: Pollymer

130V DC PTC Resettable Fuses Plug In Self Recovery Fuse Component Protection



BJK130_datasheet.pdf



Features

Radial Leaded Devices

Cured, flame retardant epoxy polymer insulating material meets UL94V-0 requirements
RoHS compliant and lead-free

environmented specificatiens



Applications

Almost anywhere there is a low voltage power supply, up to AC130V and a load to be protested, including:
Security and fire alarm systems

Lamp, rectifier, transformer, motor



P/N Ihold Itrip Vmax (Vac)

Imax

(A)

Maximum Time To Trip(12V) Resistance
Current (A) Time (sec.) Rmin (Ω) Rmax (Ω) R1max (Ω)
BJK130-006 0.06A 0.12A 130 5 0.3 10 5 18 36
BJK130-010 0.10A 0.20A 130 10 0.5 6 2.5 9 20
BJK130-015 0.15A 0.30A 130 10 0.45 12 2.5 7.5 18
BJK130-017 0.17A 0.34A 130 10 0.51 12 1.5 7 16
BJK130-020 0.20A 0.40A 130 10 0.6 12 1.9 4 12
BJK130-025 0.25A 0.50A 130 10 0.75 12 1.45 3.5 6
BJK130-030 0.30A 0.60A 130 10 0.9 15 1 3 5
BJK130-035 0.35A 0.70A 130 10 1.05 15 1 2.8 5
BJK130-040 0.40A 0.80A 130 10 1.2 15 0.75 2 4
BJK130-045 0.45A 0.90A 130 10 1.35 15 0.6 1.9 3.6
BJK130-050 0.50A 1.00A 130 10 1.5 15 0.5 1.6 3.5
BJK130-065 0.65A 1.30A 130 10 1.95 18 0.45 1 2
BJK130-075 0.75A 1.50A 130 10 2.25 18 0.4 0.9 2
BJK130-090 0.90A 1.80A 130 10 2.7 18 0.3 0.7 1.5
BJK130-110 1.10A 2.20A 130 10 3.3 18 0.2 0.65 0.9
BJK130-135 1.35A 2.70A 130 10 4.05 18 0.15 0.6 0.9
BJK130-160 1.60A 3.20A 130 10 4.8 18 0.1 0.5 1
BJK130-185 1.85A 3.70A 130 10 5.55 18 0.1 0.4 0.8
BJK130-200 2.00A 4.00A 130 10 6 25 0.1 0.3 0.5
BJK130-250 2.50A 5.00A 130 10 7.5 25 0.05 0.25 0.45
BJK130-300 3.00A 6.00A 130 10 9 25 0.05 0.25 0.4
BJK130-375 3.75A 7.50A 130 10 11.25 25 0.05 0.25 0.4



Ihold Hold current:Maximum current device will not trip in 25℃ still air.
Itrip Trip current:Minimum current at which the device will always trip in 25℃ still air.
Vmax :Maximum interrupt voltage device can withstand without damage at rated current.
Imax : Maximum fault current device can withstand without damage at rated voltage.
Pd : Typical power dissipated from device when in the tripped state in 25℃ still air environment at rated voltage.
Rmin/Rmax: Minimum/Maximum device resistance prior to tripping at 25℃.
R1max:Maximum device resistance one hour after it is tripped at 25℃.
*CAUTION:Operation beyond the specified rating may result in damage and possible arcing and flame.



Dimensions and Packing Information



130V DC PTC Resettable Fuses Plug In Self Recovery Fuse Component Protection

Model Fig. Quantity A(max) B(max) C(max) D(type)
BJK130-006 1 1000 7 11 3.8 5.1
BJK130-010 2 1000 7.4 12.7 3.8 5.1
BJK130-015 2 1000 7.4 13 3.8 5.1
BJK130-017 2 1000 7.4 13.5 3.8 5.1
BJK130-020 2 1000 7.6 13.5 3.8 5.1
BJK130-025 2 1000 8 14 3.8 5.1
BJK130-030 2 1000 8 14 3.8 5.1
BJK130-035 2 1000 8 14 3.8 5.1
BJK130-040 2 1000 9.4 14 3.8 5.1
BJK130-045 2 1000 10.2 15.2 3.8 5.1
BJK130-050 2 1000 10.2 15.2 3.8 5.1
BJK130-065 2 1000 12.8 18 3.8 5.1
BJK130-075 2 500 12.8 18 3.8 5.1
BJK130-090 1 500 14.5 19.6 3.8 5.1
BJK130-110 1 500 16.3 21.3 3.8 5.1
BJK130-135 1 500 17 22 3.8 5.1
BJK130-160 1 500 20 25 3.8 5.1
BJK130-185 1 500 22 23 3.8 5.1
BJK130-200 1 500 22 27 3.8 10.2
BJK130-250 1 500 27 32 3.8 10.2
BJK130-300 1 500 26 31 3.8 10.2
BJK130-375 3 500 27 32 3.8 10.2
