250v A250 Series Pptc Resettable Fuse For Current Overload Protection

China 250v A250 Series Pptc Resettable Fuse For Current Overload Protection supplier

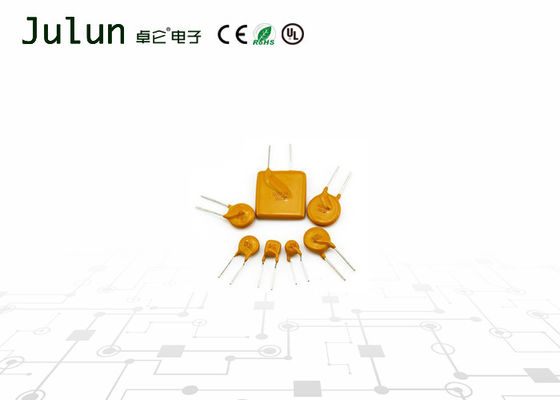

Large Image :  250v A250 Series Pptc Resettable Fuse For Current Overload Protection

Product Details:

Place of Origin: China
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: JDT

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 20000/Piece/Weekly
Contact Now
Detailed Product Description
Model Number: PPTC Usage: Resettable
Breaking Capacity: Low Safety Standards: CSA
Rated Current: 0.03A-2A Volts: 250V
Material: Pollymer

A250 Series Resettable Fuses Current Overload Protection PTC Resettable Fuses



A250.pdf



A250 Series is designed to protect against short duration high voltage fault currents (power cross or power induction surge) typically found in telecom applications (250Vrms). The series can be used to help telecom networking equipment meet the protection requirements specified in ITU K.20 and K.21.



0.03 - 1.0A hold current range, 60VDC operating
voltage
250VAC interrupt rating
Fast time-to-trip
Binned and sorted narrow resistance ranges available
RoHS compliant, Lead-Free and Halogen-Free*



Customer Premises Equipment (CPE)
Central Office (CO)/telecom centers
LAN/WAN equipment
Access equipment



Performance Specification



Model
I hold

I trip
Vmax Vmax Imax  P d Typ. Maximum Time To Trip Resistance
Current Time Rimin Rimax R1max
(A) (A) (Vdc) (Vrms) (A) (W) (A) (Sec) (Ω) (Ω) (Ω)
A250-030 0.03 0.06 60 250 3.0 1.00 0.15 0.40 40.0 120 180.0
A250-040 0.04 0.08 60 250 3.0 1.00 0.20 0.45 30.0 65 100
A250-050 0.05 0.10 60 250 3.0 1.00 0.25 0.45 24.0 60 90
A250-060 0.06 0.12 60 250 3.0 1.00 0.30 0.50 20.0 60 90
A250-080 0.08 0.16 60 250 3.0 1.00 0.40 3.00 12.0 22 33
A250-090 0.09 0.18 60 250 3.0 1.00 0.45 3.00 10.0 20 31
A250-110 0.11 0.22 60 250 3.0 1.00 0.50 0.75 6.00 12 17
A250-120 0.12 0.24 60 250 3.0 1.00 0.60 0.75 6.00 12 18
A250-145 0.145 0.29 60 250 3.0 1.00 0.725 2.50 3.50 6.5 14
A250-180
0.18
0.36
60
250
10.0
1.00
0.90
15.0
0.80
4.0
6.0
A250-200 0.20 0.40 60 250 10.0 1.50 1.00 15.0 1.50 6.0 9.0
A250-300
0.30
0.60
60
250
10.0
1.50
1.50
1.50
1.00
5.0
9.0
A250-400 0.40 0.80 60 250 10.0 2.50 2.00 10.0 0.75 3.0 6.0
A250-500
0.50
1.00
60
250
10.0
2.50 2.50
1.50
0.50
2.5
5.0
A250-600 0.60 1.20 60 250 10.0 3.00 3.00 10.0 0.5 2.0 5.0
A250-800
0.80
1.60
60
250
10.0
3.50
4.00
8.00
0.45
1.0
3.0
A250-1000 1.00 2.00 60 250 10.0 4.00 5.00 10.0 0.28 0.8 2.5





Physical Dimensions(mm.)



250v A250 Series Pptc Resettable Fuse For Current Overload Protection
