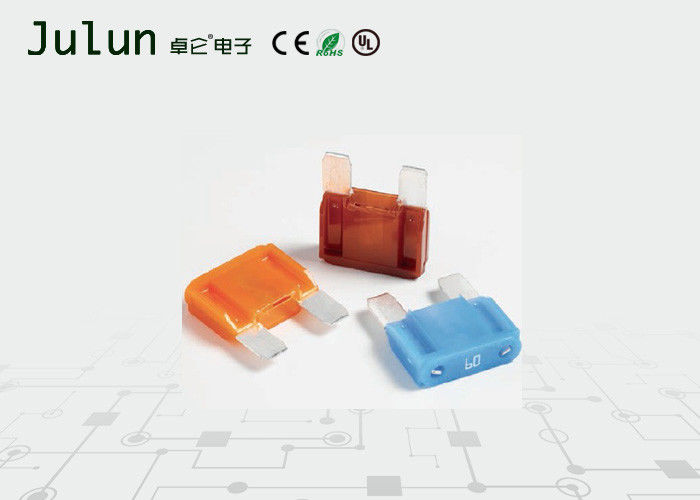

Circuit Protection Automotive Blade Fuses 1000 Amp Auto Fuse MAXI 58V Series

China Circuit Protection Automotive Blade Fuses  1000 Amp Auto Fuse MAXI 58V Series supplier
Circuit Protection Automotive Blade Fuses  1000 Amp Auto Fuse MAXI 58V Series supplier Circuit Protection Automotive Blade Fuses  1000 Amp Auto Fuse MAXI 58V Series supplier Circuit Protection Automotive Blade Fuses  1000 Amp Auto Fuse MAXI 58V Series supplier

Large Image :  Circuit Protection Automotive Blade Fuses 1000 Amp Auto Fuse MAXI 58V Series

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: 0299

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 10000/Piece/Weekly
Contact Now
Detailed Product Description
Voltage Rating: 58 VDC Interrupting Ratings: 1000A @ 32 VDC
Component Level Temperature Range: -40˚C To +125˚C System Level Temperature Range: -40˚C To +125˚C
Terminals: Ag Plated Zinc Alloy Housing Material: PA66



Circuit Protection Automotive Blade Fuses , 1000 Amp Auto Fuse MAXI 58V Series



MAXI_58V_Datasheet.pdf



Specifications

Voltage Rating: 58 VDC
Interrupting Ratings: 1000A @ 58 VDC
Operating Temperature Range: -40˚C to +125˚C
Terminals: Ag plated zinc alloy
Housing Material: PA66
Complies with: SAE J 1888
ISO 8820-3:2002(E)



Ratings



Part Number Current Rating Typ. Voltage Drop Cold Resistance I2t
0299020 20 A 76 mV 3.10 mΩ 1100 A²s
0299025 25 A 75 mV 2.39 mΩ 2087 A²s
0299030 30 A 77 mV 1.95 mΩ 4070 A²s
0299035 35 A 75 mV 1.71 mΩ 6032 A²s
0299040 40 A 75 mV 1.42 mΩ 8450 A²s
0299050 50 A 73 mV 1.10 mΩ 11300 A²s
0299060 60 A 77 mV 0.89 mΩ 15300 A²s
0299070 70 A 61 mV 0.64 mΩ 6900 A²s
0299080 80 A 62 mV 0.54 mΩ 8800 A²s



Time-Current Characteristics



% of Rating Opening Time Min / Max (s)
100 360,000 s / –
135 60 s / 1,800 s
200 2 s / 60 s
350 0.20 s / 7 s
600 0.040 s / 1 s



Dimensions

Circuit Protection Automotive Blade Fuses  1000 Amp Auto Fuse MAXI 58V Series
