Screw Mounted 200V Spark Plug Electrode Gap For Ignition System

Screw Mounted 200V Spark Plug Electrode Gap For Ignition System

Product Details:

Place of Origin: Donguan China
Brand Name: Julun
Certification: CE / UL / VDE / KC / ROHS
Model Number: GXP30

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T,
Supply Ability: 100000/Piece/Weekly
Get Best Price Contact Now

Detail Information

Model Number: GXP30 Key Words: Electrode Spark Gap
Aplication: Ignition System Response Time: Fast
Mounting: Screw Mounted Radioactivity: Tritium (3H), 5.44 MBq (147 MCi) Max Per Device
Operating Temperature: -55 To +125*C Brand: Julun
High Light:

200V Spark Plug Electrode Gap

,

Screw Mounted Spark Plug Electrode Gap

,

Ignition System Electrode Gap

Product Description

Screw Mounted 200V Spark Plug Electrode Gap For Ignition System

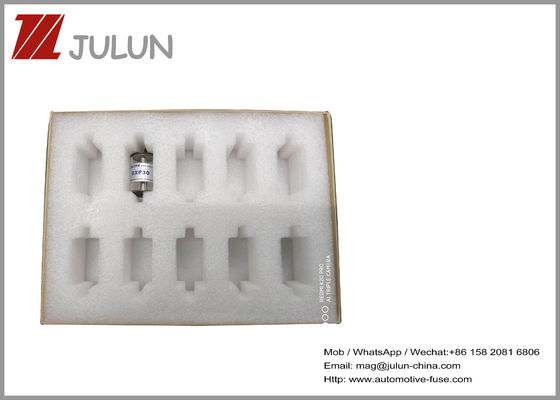

200V 2 Electrode Spark Gap ( GXP30 ) Hermetically Sealed In A Glass / Metal Envelope



Description



The GXP Series of 2-electrode spark gaps are gas discharge tubes, hermetically sealed in a glass/metal envelope. Tubes with a DC breakdown voltage in the range 0.50KV to 12 KV are available. This is signified by a numeral or numerals following the type letters and is expressed in hundreds of volts.




Applications


1,Single-shot pulse generators
2,Turbine engine ignition circuits

3,Medical lithotripsy
4,High energy switches




Electrical And Physical Characteristics



All ratings given in this data sheet a reab solute, nonsimultaneous ratings. It is the equipment designer's responsibility to ensure that they are not exceeded. The spark gap life depends on circuit conditions such as peak discharge current and duration, charge transfer per discharge and the repetition rate.


Screw Mounted 200V Spark Plug Electrode Gap For Ignition System 0



Charge transfer, single discharge (8/20 ms waveshape) 0.5C max
Cumulative charge transfer 6000C at 0.81mC per discharge at 1 Hz
Operating temperature -55 to +125*C
Mechanical shock, half-sine (toB.S. 2011 test Ea) 40g for 4ms
Mounting screw mounted
Radioactivity tritium (3H), 5.44 MBq (147 mCi) max per device





Screw Mounted 200V Spark Plug Electrode Gap For Ignition System 1

Screw Mounted 200V Spark Plug Electrode Gap For Ignition System 2

Quality assurance

Screw Mounted 200V Spark Plug Electrode Gap For Ignition System 3

Screw Mounted 200V Spark Plug Electrode Gap For Ignition System 4


Professional production workshop


Screw Mounted 200V Spark Plug Electrode Gap For Ignition System 5

Screw Mounted 200V Spark Plug Electrode Gap For Ignition System 6





Delivery time:


(1)Within 1-2 working days if in stock( after we confirm the payment from you )!
(2)Within 5-14 working days if not in stock !(If any changes,don't worry,we will inform you in the first time !)
(3)Free Charge Samples Ususally Available!
