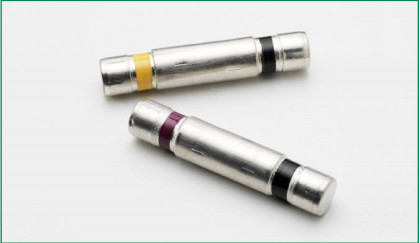

SL-1026-1100 Littelfuse High Power Gas Discharge Tube Plasma GDT
|Place of Origin:||China|
|Model Number:||littelfuse SL1026-1100|
Payment & Shipping Terms:
|Minimum Order Quantity:||100 / Negotiable|
|Packaging Details:||Standard carton|
|Delivery Time:||15~30 Working days|
|Payment Terms:||L/C, D/P, T/T,|
|Features:||Will Protect Against Trapezoidal Waveforms As Specified In RIA 12||Type:||SL1026-700|
|Surge Ability:||40KA||Rated Impact Times:||10 (±5 Repetitions)|
|Certification Standards:||RoHS / UL||Applications:||Signaling Equipment|
Littelfuse Gas Discharge Tube,
Overvoltage Protector Gas Discharge Tube,
GDT Gas Discharge Surge Protector
SL1026 Series - Three Terminal High Power Plasma Gas Overvoltage Protector (GDT)
The SL1026 Series is a heavy-duty transient suppresser using Gas Plasma technology. In response to transients that exceed the device's breakover voltage, the device changes from a very high impedance state to a low impedance state to conduct harmful current away from the protected system. The SL1026 is designed to protect electrical and electronic equipment such as communications, control and railway systems. Carefully designed geometry ensures against short circuiting if a failure occurs due to conditions and events beyond the design criteria. Optional electrical mounting clip (part SL1053 ) is available to aid mounting and connection.
• RoHS compliant
• 55 kA surge capability (single shot) tested with 8/20μS pulse as defined by IEC 61000-4-5
• 40 kA surge capability (repetitive)
• Will protect against Trapezoidal waveforms as specified in RIA 12.
• Will protect against capacitor discharge voltage transient waveforms as specified in RIA 12.
• Will protect against double exponential voltage transient waveforms as specified in IEC 571.
• Signaling equipment.
• Communication equipment
• Control gear.
• Trackside cabinets.
• Cell phone base stations
|Part Number*||DC Voltage
1 sec x10
150(+) and 150(-)
MIN MAX (Amps)
End of life limits
-- DC: 50% of minimum initial DC breakdown voltage limit to 150% of maximum initial DC breakdown voltage limit.
-- Impulse: less that 150% of initial impulse breakdown voltage limit.
1. Total current through center electrode, tested using SL1053B-NL holder
2. Exceeds capability of SL1053B-NL holder
