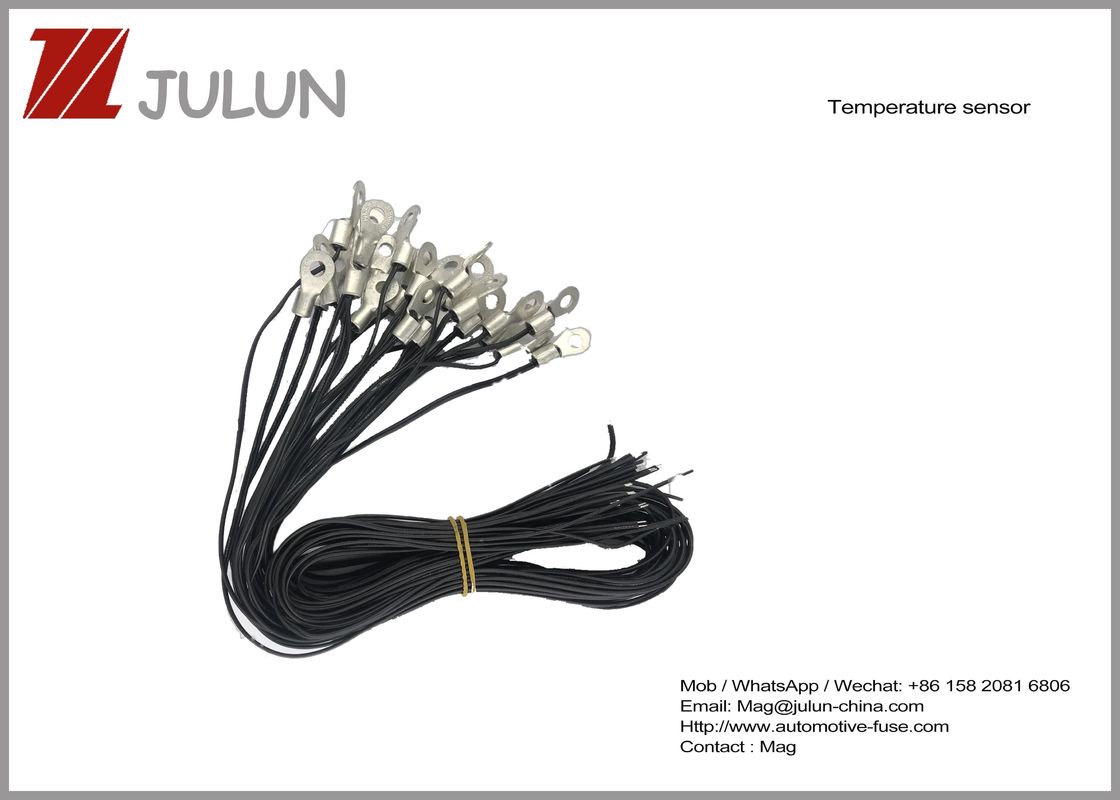

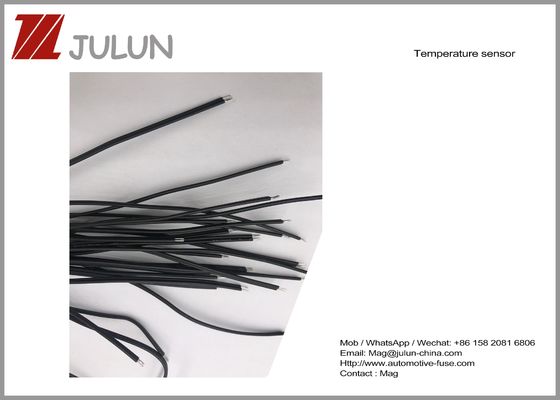

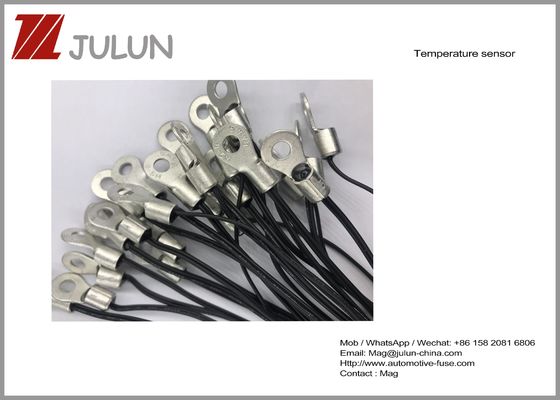

10K 15K 20K 50K NTC Temperature Sensor For Refrigerator Boiler

10K 15K 20K 50K NTC Temperature Sensor For Refrigerator Boiler

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE / UL / VDE / KC / ROHS
Model Number: Temperature Sensor

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T,
Supply Ability: 10000/Piece/Weekly
Get Best Price Contact Now

Detail Information

Brand: Julun Type: NTC Temperature Sensor
Usage: Temperature Sensor Key Words: Thermistor Temperature Sensor
Thermal Dissipation Constant: Ta=25±0.5°C Insulation Test: 500VDC
MOQ: Negotiable Port: Donguan
High Light:

50K NTC Temperature Sensor

,

20K NTC Temperature Sensor

,

Refrigerator Boiler Thermistor Temperature Sensor

Product Description

10K 15K 20K 50K NTC Temperature Sensor For Refrigerator Boiler

NTC 10K 15K 20K 50K 3950 1% Temperature Sensor Ntc Sensor Probe For Refrigerator Boiler



Exterior dimension

10K 15K 20K 50K NTC Temperature Sensor For Refrigerator Boiler 0



Exterior specification



Material name Specifications / Models Place of Origin
LEAD WIRE UL4413 # 26AWG 2C TS 300V BLACK D.H
CAP RNB8-5M K.S
EPOXY FILLING NB-5 BLACK K.W
THERMISTOR R25=10KΩ±1% B25/50=3950K±1% SE S.M






Electrial characteristics



Item Symbol Test Conditions Min. Nor. Max. Unit
Resistance At 25°C R25 Ta=25±0.05°C PT≦0.1mw 9.9 10 10.1
B Constant B25/50   3910 3950 3989.5 k
Thermal Dissipation Constant σ Ta=25±0.5°C / 2 / mw/°C
Thermal Time Constant (in water) τ 25 °C →85°C T1=25+(85-25)*63.2 %=62.9°C / / 7 sec
Insulation test / 500VDC 100 / /


Mechanical Characteristics



Item Variable Test Conditions
LEAD WIRE Strength No break out and obvious damage No obvious damage) Add 4KGF testing force slowly, last 10S
Drop test Free fall from the 1m height of the concrete floor, a total of 5 times



Storage method




1,During storage and transportation, no

more than 4 boxes of products are placed in each stack.


2,Allows for the transport

of any method, but to avoid direct or indirect rain and snow damage and mechanical damage.


3,Products should be stored in the environment at a temperature of minus 10 degrees C / C, 45 degrees Celsius, the relative humidity is less than 80%, the surrounding environment should not be acidic, alkaline substances and corrosive gases or radiation source.
