• PA66 Housing Automotive Blade Fuses ISO 8820-3

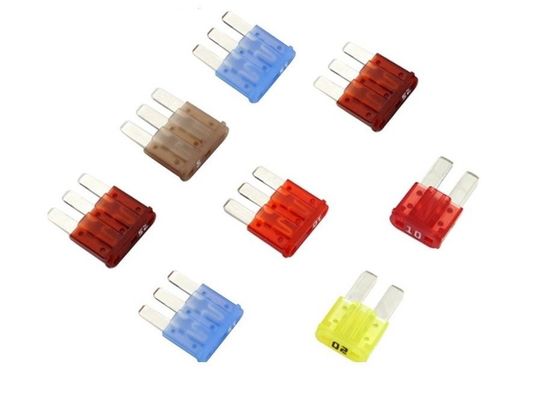

PA66 Housing Automotive Blade Fuses ISO 8820-3

PA66 Housing Automotive Blade Fuses ISO 8820-3

Product Details:

Place of Origin: CHINA
Brand Name: Julun
Certification: CE/UL/VDE/KC/ROHS
Model Number: 0287

Payment & Shipping Terms:

Minimum Order Quantity: 100 / Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T,
Supply Ability: 10000/Piece/Weekly
Get Best Price Contact Now

Detail Information

Voltage Rating: 32 VDC Interrupting Ratings: 1000A @ 32 VDC
Component Level Temperature Range: -40˚C To +105˚C System Level Temperature Range: -40˚C To +85˚C
TerminaHousing Materialls: Sn Plated Zinc Alloy Housing Material: PA66
Complies With: SAE J1284,ISO 8820-3 UL Listed: File AU1410
CSA Certified: File No. 29862
High Light:

PA66 Housing Automotive Blade Fuses

,

Automotive Blade Fuses ISO 8820-3

Product Description

Operation Temperature: -40℃ - 80℃ Automotive Blade Fuse



ATOF_Datasheet.pdf



Electrical Performances



Ampere Rating(A) Part Number Housing Colors Resistance Value Voltage Drop
5A 1173 Tan 17.3 mΩ 117 mV
7.5A 1174 Brown 10.7 mΩ 109 mV
10A 1175 Red 7.85 mΩ 104 mV
15A 1176 Blue 5.05 mΩ 100 mV
20A 1177 Yellow 3.65 mΩ 95 mV
25A 1178 White(natural) 2.75 mΩ 88 mV
30A 1179 Green 2.18 mΩ 82 mV





Time-Current Characteristics





% of Ampere Rating(A) Operating Time
MIN MAX
110% 100 hrs. -
135% 0.75 sec. 120 sec.
160% 0.25 sec. 50 sec.
200% 0.15 sec. 5 sec.
350% 0.04 sec. 0.5 sec.
600% 0.02 sec. 0.1 sec.




Features


Suitable sizes : 5, 7.5, 10 and 15 Amp.
Voltage Rating: 32 VDC.
Interrupting Ratings: 1000A @ 32 VDC.
Operating Temperature: -40°C to 125°C.
Terminals: Ag Plated Zinc Alloy.
Housing Material: PA66.
RoHS.

Sub-miniature design

New standard for vehicle circuit protection

Space saving - smaller than the MINI® fuse



How to change a fuse on a plug socket ?



For a standard plug you will need a screwdriver (usually a flat headed screwdriver but will depend on the screws in that particular plug – take a look at the base).



1) In an anti-clockwise direction, loosen the screw(s) – typically this type of plug will have a larger central screw that holds the cases halves together; that’s the one to go for. You may not need to remove all the screws completely as the back of the plug should come away following a few turns of the screws.
2)Open the case and keep the back and the screw in a safe place for reinstating later.
3)Pull the fuse out, you will find the fuse within two metal holders inside the plug, sometimes these can be tight and need to be prised out, don’t worry if one of the pins lifts out with it initially – this just slides back through the case once the fuse is removed.
4)Replace the old fuse with a new fuse (making sure it’s like for like or that you really understand why it’s changing if it is).
5)It’s often worth just checking the terminals (the small screws that hold the cables in the plug) are tight at this point – a loose connection can cause overheating and an increase in current which may be why the fuse blew initially). Just try to tighten them with (usually) a small flat blade screwdriver to make sure they are nice and tight.
6)Return the lid of the plug and screw firmly. When secure there should be no movement from the metal pins that go into the wall socket.
7)If the fuse blows again, there may be an electrical fault not associated with the fuse. In this instance, we would recommend an electrician to carry out an electrical safety inspection to check the product.



Description


Developed by UCHI for the automotive industry, MEDIUM AUTO BLADE fuse has become the original equipment circuit protection standard for foreign and domestic automobiles and trucks. Readily identifiable and easily replaced, this fuse can be specified for a variety of low voltage electronic applications.



Application

-Machine
-Vehicle



Specification



Tin Plated Silver Plated
Voltage Rating 32 VDC 32 VDC
Interrupting Rating 1000A @ 32 VDC 1000A @ 32 VDC
Component Level Temperature Range -40˚C to +105˚C -40˚C to +125˚C
System Level Temperature Range -40˚C to +85˚C -40˚C to +105˚C
Terminals Sn plated zinc alloy Ag plated zinc alloy
Housing Material PA66 PA66
Complies with SAE J1284,ISO 8820-3 SAE J1284,ISO 8820-3
UL Listed File AU1410 File AU1410
CSA Certified File No. 29862 File No. 29862


**105°C and 85°C are typical system level temperature requirements.


Ratings



Part Number Current Rating
(A)
Typ. Voltage Drop
(mV)
Cold Resistance
(mΩ)
I2t
(A2s)
0287001._ 1 176 123 0.4
0287002._ 2 141 53.5 1.4
0287003._ 3 137 31.1 7.4
0287004._ 4 136 22.8 14
0287005._ 5 128 17.85 26
028707.5_ 7.5 116 10.91 60
0287010._ 10 109 7.70 115
0287015._ 15 102 4.80 340
0287020._ 20 98 3.38 520
0287025._ 25 92 2.52 1080
0287030._ 30 84 1.97 1510
0287035._ 35 87 1.61 2280
0287040._ 40 96 1.44 3310



Time-Current Characteristics



% of Rating Current
Rating
Opening Time
Min / Max (s)
100 35A & 40A 360,000 s / –
110 1A-30A 360,000 s / –
135 1A & 2A
3A-40A
350 ms / 600 s
0.750 s / 600 s
160 1A-40A 250 ms / 50 s
200 1A & 2A
3A-40A
100 ms / 5.0 s
0.150 s / 5.0 s
350 1A & 2A
3A-40A
20 ms / 500 ms
80 ms / 500 ms
600 1A-30A
35A & 40A
– / 100 ms
– / 150 ms
