Non Combustible Coated Wire Wound Resistor 125V 250V For Power Supply

Non Combustible Coated Wire Wound Resistor 125V 250V For Power Supply

Product Details:

Place of Origin: CHINA
Brand Name: JULUN
Certification: CE/UL/VDE/KC/CCC
Model Number: BT212 Time Lag SUB-miniature fuse

Payment & Shipping Terms:

Minimum Order Quantity: 1500/ Negotiable
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 7~10 Working days
Payment Terms: L/C, D/P, T/T,
Supply Ability: 10000/Piece/Weekly
Get Best Price Contact Now

Detail Information

Type: 212 Material: Ceramics
Voltage: 125V/250v Current: 0.1-6.3A
MOQ: 1500 Volume: Sub-miniature
Use In: PCB Home Appliances Light And So On
High Light:

Non Combustible Coated Wire Wound Resistor

,

Wire Wound Resistor 125V

,

Thermal Fuse Resistor 250V

Product Description

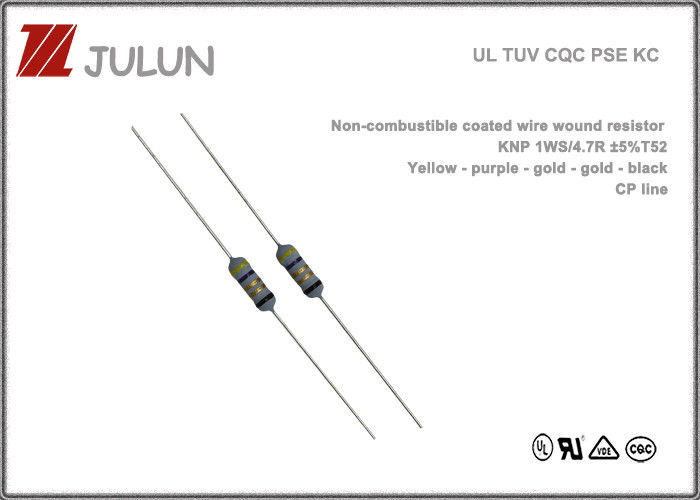

Non Combustible Coated Wire Wound Resistor 125V 250V For Power Supply

Non-Combustible Coated Wire Wound Resistor Power Supply​


OC_212-datasheet.pdf



Applicable Scope



This benchmark is the supply of chargers, power supply, and other energy-saving lamps used in the coating are incombustibility wound resistor type of specifications.



Mechanical Performance



The terminal shall withstand 4 bends of 90°rotation without any breakage or damage, when the Resistor is fixed in vertical position.

Fixing the resistor body, a static load of 2.5Kg is to be gradually applied into the terminal for 10seconds without causing any looseness and fall.

To bend the lead wire at the point of about 6mm from resistor body to 90°,then catch the wire at 1.2±0.4mm apart from the bend point end and turn it (clockwise) by 360 degrees Perpendicular to the resistor axis at speed of sane 5 seconds per turn, and do the same Counterclockwise again which constitute a whole turn. Repeat the turn for 2 times without Causing any break and looseness.




Description


Thermal fuses, defined as non-resettable, are single action devices that are widely used for the electrical equipments against over temperature. The thermal cutoffs are composed of the fusible alloy with low melting point and special resin, encapsulated in a plastic or ceramic housing. Under normal operated, the fusible alloy is joined by the two lead wires within the housing. When the thermal cutoff senses an abnormal heat and reach a preset temperature, the fusible alloy melts and disconnects the circuit completely with the aid of the special resin. Both Axial and Radial shapes are available, with rated current from 1A to 200A, Function temperature 76℃~221℃, certificated including UL, cUL, VDE,TUV,PSE, KTL, CCC and RoHS, REACH Compliant.


Competitive Advantage



1. Factory supply directly

2. Completed certificates such as UL,VDE,SGS,etc and high quality available

3. Quick delivery
4.
Improve after sales service system




Non Combustible Coated Wire Wound Resistor 125V 250V For Power Supply 0
