Quick Protection Photovoltaic Solar Firefighter Safety Switch Rapid Shutdown
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Model Number: | TW-RSD150-40-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 10 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,00 PCS |
|
Detail Information |
|||
| Certification: | CE | Strings: | 1~10 Strings Available |
|---|---|---|---|
| Rated Voltage: | Up To 1500V | Rated Current: | 63-80A |
| Protection: | IP65 PROTECTION And Anti UV | Control: | APP Remote Control |
| Signal: | Shutdown Feedback SIGNAL | Auto: | Auto Shutdown Exceeding 70°C |
| Life: | 1000 MECHANICAL LIFE CYCLES | Isolator With: | CE,CB,TUV,SAA |
| High Light: | 80A Firefighter Safety Switch,Photovoltaic Solar Firefighter Safety Switch,PV Fire Safety Switch |
||
Product Description
Hotovoltaic Solar Fire Protection Quick Switch Protection Rapid Shutdown
Power Electronics Division
As the problem of fire safety of optical storage and charging system has been paid more and more attention in the global field, Puzhao New Energy has also actively set up the Power electronics Business Division to provide new solutions for photovoltaic system safety by the way of power electronics + intelligent electricity.
In 2016, Pumega New Energy quickly launched a series of series of quick turn-off products, RSD PEFS-EL series, which became the first batch production fast turn-off manufacturer in China. The products have been applied in batches in Germany, The UK, the Philippines and other places. At present, pumega New Energy has become a Tier1 brand in The European and Asia-pacific markets.
At the same time, the company continues to introduce high-tech talents, strengthen the technical advantages of products, enrich the product line, and always walk in the forefront of technology. Currently, RSD PFS-PL series of component level quick shut-off products have passed NEC 2017&2020(690.12), UL1741, UL3741 and other standards certification. And has 24V with communication line one tow, one tow two, 80V, 120V and PLC power carrier communication one tow, one tow two, 80V, 120V a total of eight series of complete product lines.

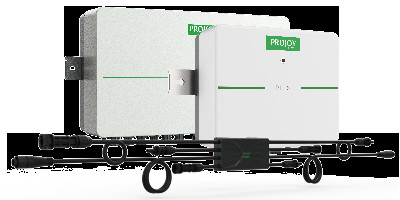

Fps-pl Modular Fire Safety Switch (PLC) for PV
Puzhao series fast shutdown control unit is a cost-effective fast shutdown device; By one-button operation, the DC high voltage is limited to the roof or the vicinity of components. In case of fire and other emergencies, the personal safety of rescue workers is protected to a certain extent and the occurrence of electric shock accidents is avoided.
Product highlights:
Meets UL standards and SUNSPEC
Meet the inverter low wear requirements
PLC control optional
One drag, one drag two, one drag four optional
Available in white/orange/black
Fire retardant V-0 / UV resistant material
High specification material, improve the product high temperature resistance, corrosion resistance, impact resistance properties, safe and reliable
Buckle design, simple and convenient installation, save labor cost
Complete certification, TUV, CE, CB, SAA, UL
