Photovoltaic Module Pfs Pl Fire Safety Switch PLC For Emergency Situations
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Model Number: | TW-RSD150-40-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 10 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,00 PCS |
|
Detail Information |
|||
| Certification: | CE | Strings: | 1~10 Strings Available |
|---|---|---|---|
| Rated Voltage: | Up To 1500V | Rated Current: | 63-80A |
| Protection: | IP65 PROTECTION And Anti UV | Control: | APP Remote Control |
| Signal: | Shutdown Feedback SIGNAL | Auto: | Auto Shutdown Exceeding 70°C |
| Life: | 1000 MECHANICAL LIFE CYCLES | Isolator With: | CE,CB,TUV,SAA |
| High Light: | 63A Fire Safety Switch,Photovoltaic Fire Safety Switch,PLC Firefighter Safety Switch |
||
Product Description

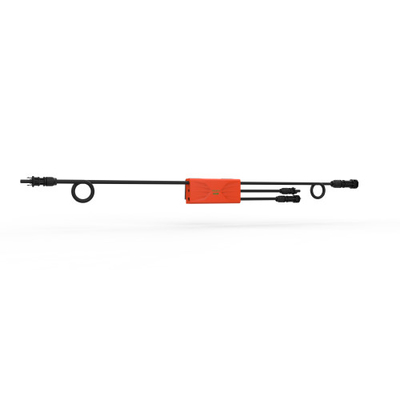

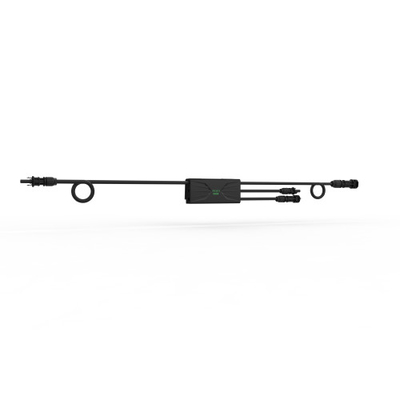

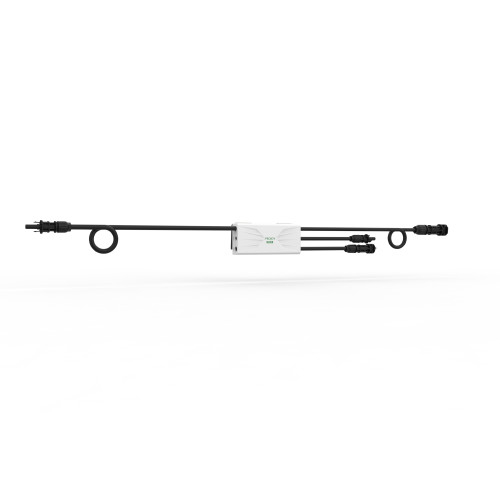

Fps-pl Modular Fire Safety Switch (PLC) for PV
Puzhao series fast shutdown control unit is a cost-effective fast shutdown device; By one-button operation, the DC high voltage is limited to the roof or the vicinity of components. In case of fire and other emergencies, the personal safety of rescue workers is protected to a certain extent and the occurrence of electric shock accidents is avoided.
Product highlights:
Meets UL standards and SUNSPEC
Meet the inverter low wear requirements
PLC control optional
One drag, one drag two, one drag four optional
Available in white/orange/black
Fire retardant V-0 / UV resistant material
High specification material, improve the product high temperature resistance, corrosion resistance, impact resistance properties, safe and reliable
Buckle design, simple and convenient installation, save labor cost
New Energy Equipment Co., LTD. (PROJOY ELECTRIC) was founded in 2011, headquartered in Suzhou High-speed rail New City Industrial Park, China, the transportation is very convenient. Adhering to the product concept of "Switch to Safety, he is safer", it is the first professional manufacturer focusing on providing protection, Safety and metering products such as DC isolating Switch, energy storage circuit breaker, direct stray surge, intelligent circuit breaker, intelligent fast turn-off, intelligent electricity meter for optical storage and charging field. After more than 10 years of development, Puzhao New Energy currently has two business divisions: electrical and power electronics.
