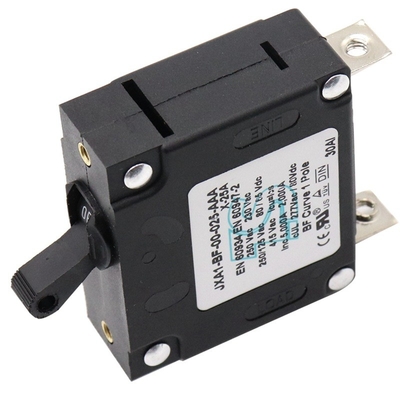

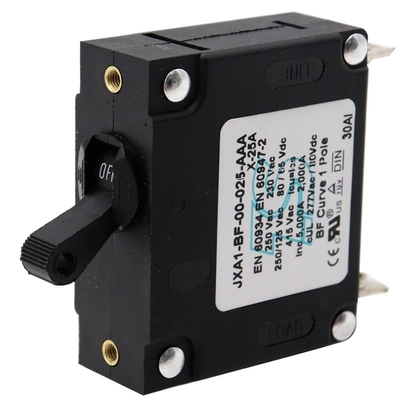

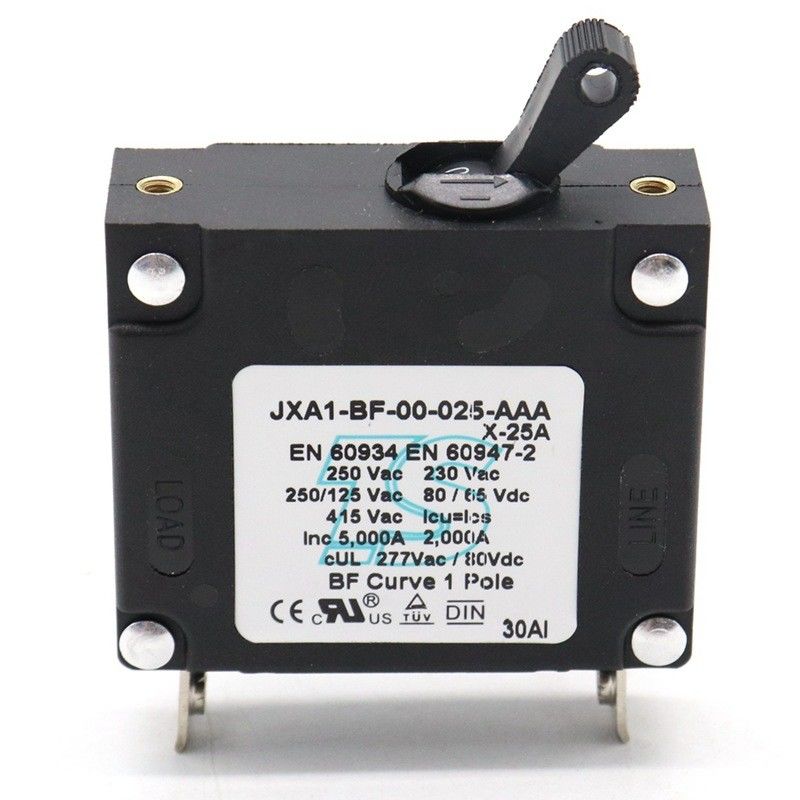

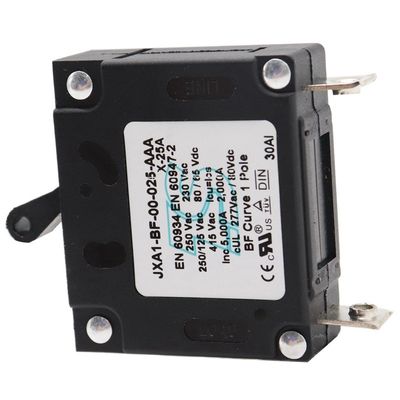

1-50A Circuit Breaker Current Overload Protector Dial Reset For Vehicle Shipbuilder
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | UL;IEC;CSA;CCC;ROHS |
| Model Number: | F3880-25A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Product Name: | Dipping The Reset, The Circuit Breaker On-Off AC/DC Circuit Breaker 40A | Rated Current: | 15A/20A/25A/30A/40A |
|---|---|---|---|
| Product Material: | Electric Wood Material | Installation Method: | Rear Installation |
| Work Temperature: | -40 ° C (-40 ° F) To 85 ° C (185) | Working Voltage: | 125/250480vac; 65/80VDC |
| High Light: | 15A Dial Reset Current Overload Protector,50A Circuit Breaker Current Overload Protector,Vehicle Shipbuilder Current Protector |
||
Product Description
1-50A Circuit Breaker Current Overload Protector Dial-Reset AC DC Vehicle Shipbuilder
The company's business philosophy is to continue to create value for customers, continue to optimize front-end marketing and logistics support team, as the industry supply chain professional partners. Provide value-added services such as requirements creation, solutions, technical support, warehousing, logistics and e-commerce. Meet customer requirements of original equipment manufacturers, original design manufacturers, electronic manufacturing service providers and small and medium enterprises. In order to better serve customer of Lun Lun company, Zhuo Lun has set up branch and office in China, Hongkong, China, Southern China, central China, East China and so on. Welcome to inquire and cooperate.
Product Presentation
Product name: Dipping the reset, the circuit breaker on-Off AC/DC circuit breaker 40A
Rated current: 15A/20A/25A/30A/40A
Product material: electric wood material
Installation method: rear installation
Work temperature: -40 ° C (-40 ° F) to 85 ° C (185)
Working voltage: 125/250480vac; 65/80VDC
Interrupt capacity: 5,000A (PC1)
3,000A@250 VAC (SC)
1,000A @415 VAC (SC)
2,000A @ 80 VDC (SC)
Regulatory specification: cUL1077; EN60934; EN60947; DIN; CE
Vibration: 50g, 11ms or 100G, 6ms
Rating current: 1-100A
Dutch DC: 2,500 VAC50/60Hz
Allowed screws: allowed screws: m3/6-32 (0.6'0.8 nm)
