Oil Ground Mine EUCHNER Authorized Switch ZSM2200-100697 For Chemical Industry
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | UL;IEC;CSA;CCC;ROHS |
| Model Number: | ZSM2200-100697 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Application Areas: | Chemical Industry, Oil, Ground And Mine, Energy Electronics | Materials: | PA, CR, TPE |
|---|---|---|---|
| Weight: | Mesh 2,5 Kg | Environmental Temperature: | -5 ~ 60 ℃ |
| Protection Level: | IP54 | Mechanical Service Life: | 1x 10 |
| High Light: | Ground EUCHNER Authorized Switch,Mine EUCHNER Authorized Switch,Chemical Industry EUCHNER Authorized Switch |
||
Product Description

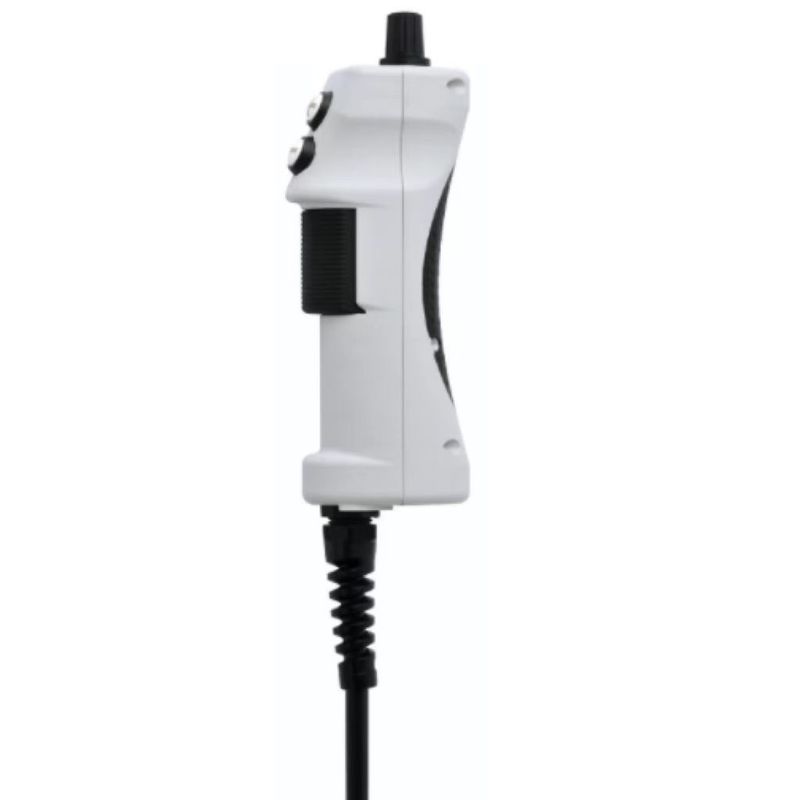

EUCHNER Authorized Switch ZSM2200-100697
The company's business philosophy is to continue to create value for customers, continue to optimize front-end marketing and logistics support team, as the industry supply chain professional partners. Provide value-added services such as requirements creation, solutions, technical support, warehousing, logistics and e-commerce. Meet customer requirements of original equipment manufacturers, original design manufacturers, electronic manufacturing service providers and small and medium enterprises. In order to better serve customer of Lun Lun company, Zhuo Lun has set up branch and office in China, Hongkong, China, Southern China, central China, East China and so on. Welcome to inquire and cooperate.
Product Presentation
Application areas: chemical industry, oil, ground and mine, energy electronics
EUCHNER authorized switch ZSM2200-100697 (ordering number 100697)
ZSM, button, vibration motor, select switch
Level 3 function
Vibration signal
+-And-button to select switch
10M straight line mating cable
EUCHNER authorized switch 3 function
The authorized switch is only in the second position (the middle position, the trigger point) is in the activation state. If the button is released or pressing down (tension state control function), the authorization switch is disconnected (depending on the wiring, refers to the electrical diagram).
Vibration signal
Vibration signal is used to obtain enabled position signals.
+And-button
Such keys can be configured separately. For example, control shaft positive or reverse movement
switch
According to customer needs, adjustable braking positions can be used for shafts, speed or range selection.
cable
Optional high -quality matching wire and cable (straight line).
EUCHNER authorized switch mechanical value and environment
Materials: PA, CR, TPE
Weight: mesh 2,5 kg
Environmental temperature: -5 ~ 60 ℃
Protection level: IP54
Mechanical service life: 1x 10
Switching principle: Quick contact element
Conversion contact number: 3
Wiring method: flying wire
Cable length: straight 10M
Electrical connection level
Limited short -circuit current: 100A
Use category, complies with the EN60947-5-1 standard:
DC-13 24V 1A
24V 0.3A
Short-circuit protection device, compliance with IEC60269-1 standard: 2A GG
Rated insulation voltage u: 250V
The rated pulse resistance voltage UIMP: 1,5 kV
Pollution level (external compliance with EN 60947-1 standard): 3
With cable: 23x0.14mm2
Switch feature: Level 3 enable switch
other
Additional features
Vibration motor 1
Button+ 1
Button -1
4 Select Switch 1
Compliance with 60947-5-8
