Rail Transit Electric Vehicles Ship Electricity Ceramic Automotive Fuse RS306 1250V
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | UL;IEC;CSA;CCC;ROHS |
| Model Number: | RS306 1250V Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Performance Reference: | UL248.13/IEC60269-4 | Rated Voltage: | AC1250V (IEC)/DC1000V (UL 01#～ 2#tube) |
|---|---|---|---|
| Rated Current: | 32A ~ 1100A | Use Category: | AR |
| Division Capacity: | AC 100KA/DC 50KA (time Constant 10ms) | Compliance With: | ROHS, CE |
| High Light: | Electric Vehicles Ceramic Automotive Fuse,Ceramic Automotive Fuse 1250V,Ceramic Auto Fuse 1250V |
||
Product Description
Rail Transit, Electric Vehicles, Ship, Electricity And Other Industries Application Ceramics Fuse RS306 1250V Series
The company's business philosophy is to continue to create value for customers, continue to optimize front-end marketing and logistics support team, as the industry supply chain professional partners. Provide value-added services such as requirements creation, solutions, technical support, warehousing, logistics and e-commerce. Meet customer requirements of original equipment manufacturers, original design manufacturers, electronic manufacturing service providers and small and medium enterprises. In order to better serve customer of Lun Lun company, Zhuo Lun has set up branch and office in China, Hongkong, China, Southern China, central China, East China and so on. Welcome to inquire and cooperate.
Product Presentation

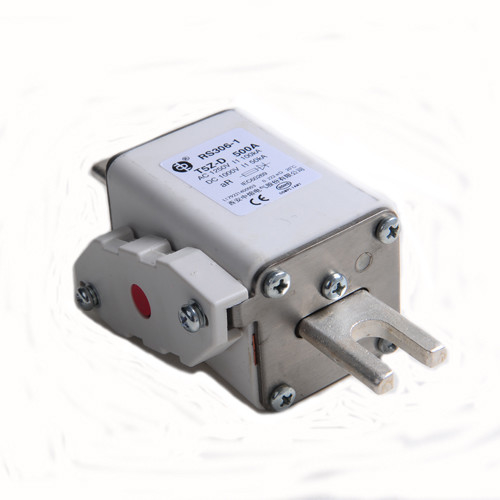

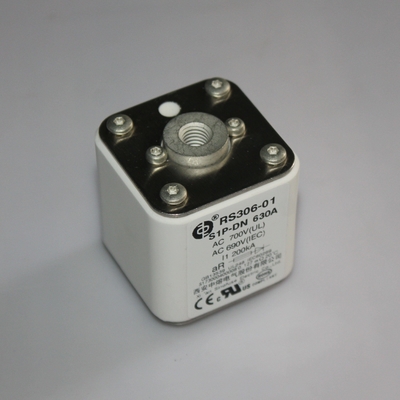

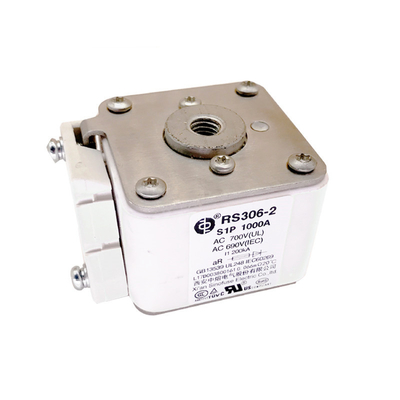

RS306 1250V series
● Performance reference: UL248.13/IEC60269-4
● Rated voltage: AC1250V (IEC)/DC1000V (UL 01#～ 2#tube)
● Rated current: 32A ~ 1100A
● Use category: AR
● Division capacity: AC 100KA/DC 50KA (time constant 10ms)
● Compliance with ROHS, CE, of which 01 and 1#tubes have passed UL certification.
This product is a fuse for the bolt connection part of the range. It has the characteristics of low I2T, strong streaming capabilities, and high break capacity. It is suitable for applications suitable for rail transit, electric vehicles, ships and other industries. It can be used as a short -circuit current and reserve protection for energy storage systems, power systems, wires and other devices and equipment.
