Round Tube Full Range Protecting Photovoltaic Fuse RS308-PV-3E
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | UL;IEC;CSA;CCC;ROHS |
| Model Number: | RS308-PV-3E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Rated Voltage: | DC1000V | Rated Current: | 1A ～ 30A |
|---|---|---|---|
| Use Category: | GR (PV Protection) | Break Ability: | 10ka |
| Performance Reference: | IEC60269, UL2579, GB13539 | Combining: | ROHS |
| High Light: | Round Tube Photovoltaic Fuse,Full Range Protecting Photovoltaic Fuse,DC1000V PV Solar Fuse |
||
Product Description

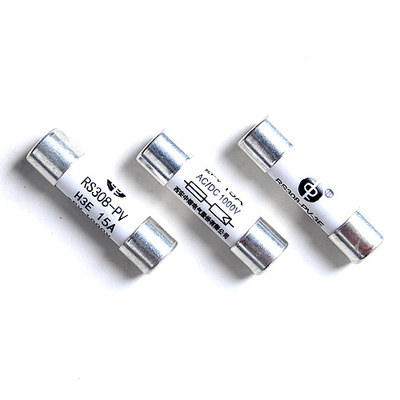

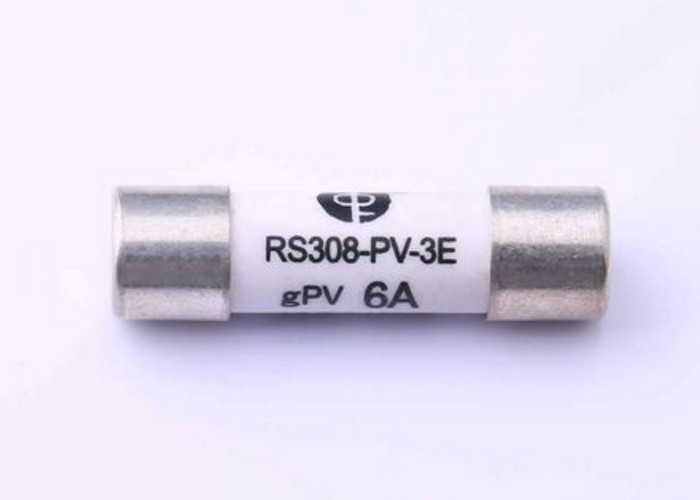

Round Tube Full Range Protecting Photovoltaic Fuse RS308-PV-3E
The company's business philosophy is to continue to create value for customers, continue to optimize front-end marketing and logistics support team, as the industry supply chain professional partners. Provide value-added services such as requirements creation, solutions, technical support, warehousing, logistics and e-commerce. Meet customer requirements of original equipment manufacturers, original design manufacturers, electronic manufacturing service providers and small and medium enterprises. In order to better serve customer of Lun Lun company, Zhuo Lun has set up branch and office in China, Hongkong, China, Southern China, central China, East China and so on. Welcome to inquire and cooperate.
Product Presentation
RS308-PV-3E
● Performance Reference IEC60269, UL2579, GB13539
● Rated voltage: DC1000V
● Rated current: 1A ～ 30A
● Use category: GR (PV protection)
● Break ability: 10ka
● Combining ROHS
This series of products is a full range of circular tube protection of photovoltaic fuses. It has the characteristics of low I²T value, strong streaming capabilities, and high break capacity. It is suitable for protecting the isolation photovoltaic flow box and isolation switch. This series of fuses can break the reverse current and multi -row array fault current in the fault PV array or the lower overload current generated by it.
